How to Use ESP 32 C3 SuperMini: Examples, Pinouts, and Specs

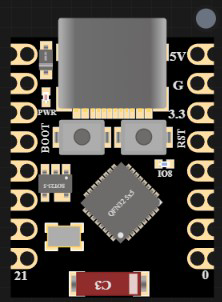

Image of ESP 32 C3 SuperMini
Cirkit Designer LogoDesign with ESP 32 C3 SuperMini in Cirkit Designer

Introduction

The ESP32-C3 SuperMini is a compact and powerful microcontroller designed for IoT applications and embedded systems. It features integrated Wi-Fi and Bluetooth Low Energy (BLE) capabilities, making it an excellent choice for wireless communication projects. With its RISC-V architecture, low power consumption, and robust performance, the ESP32-C3 SuperMini is ideal for smart home devices, wearables, industrial automation, and more.

Explore Projects Built with ESP 32 C3 SuperMini

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32C3 and LoRa-Enabled Environmental Sensing Node
Image of temperature_KA: A project utilizing ESP 32 C3 SuperMini in a practical application
This circuit features an ESP32C3 Supermini microcontroller connected to a LORA_RA02 module and a DHT11 temperature and humidity sensor. The ESP32C3 handles communication with the LORA module via SPI (using GPIO05, GPIO06, GPIO10, and GPIO04 for MISO, MOSI, NSS, and SCK respectively) and GPIO01 and GPIO02 for additional control signals. The DHT11 sensor is interfaced through GPIO03 for data reading, and all components share a common power supply through the 3.3V and GND pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32C3 Supermini-Based Smart Environment Monitor and Lighting Control System
Image of Bedside RGB and Lamp: A project utilizing ESP 32 C3 SuperMini in a practical application
This is a smart control system featuring an ESP32C3 Supermini microcontroller for interfacing with various sensors and actuators. It includes temperature and humidity sensing, RGB LED strip control, user input via a pushbutton and rotary encoder, and AC power control through a two-channel relay. The system is powered by an AC source converted to DC by the HLK-PM12 module.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-C3 and Micro SD Card Module for Data Logging
Image of Esp 32 super mini with MicroSd module: A project utilizing ESP 32 C3 SuperMini in a practical application
This circuit features an ESP32-C3 microcontroller interfaced with a Micro SD Card Module. The ESP32-C3 handles SPI communication with the SD card for data storage and retrieval, with specific GPIO pins assigned for MOSI, MISO, SCK, and CS signals.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-C6 and ST7735S Display: Wi-Fi Controlled TFT Display Module
Image of ESP32-C6sm-ST7735: A project utilizing ESP 32 C3 SuperMini in a practical application
This circuit features an ESP32-C6 microcontroller interfaced with a China ST7735S 160x128 TFT display. The ESP32-C6 controls the display via SPI communication, providing power, ground, and control signals to render graphics and text on the screen.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP 32 C3 SuperMini

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of temperature_KA: A project utilizing ESP 32 C3 SuperMini in a practical application
ESP32C3 and LoRa-Enabled Environmental Sensing Node
This circuit features an ESP32C3 Supermini microcontroller connected to a LORA_RA02 module and a DHT11 temperature and humidity sensor. The ESP32C3 handles communication with the LORA module via SPI (using GPIO05, GPIO06, GPIO10, and GPIO04 for MISO, MOSI, NSS, and SCK respectively) and GPIO01 and GPIO02 for additional control signals. The DHT11 sensor is interfaced through GPIO03 for data reading, and all components share a common power supply through the 3.3V and GND pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Bedside RGB and Lamp: A project utilizing ESP 32 C3 SuperMini in a practical application
ESP32C3 Supermini-Based Smart Environment Monitor and Lighting Control System
This is a smart control system featuring an ESP32C3 Supermini microcontroller for interfacing with various sensors and actuators. It includes temperature and humidity sensing, RGB LED strip control, user input via a pushbutton and rotary encoder, and AC power control through a two-channel relay. The system is powered by an AC source converted to DC by the HLK-PM12 module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Esp 32 super mini with MicroSd module: A project utilizing ESP 32 C3 SuperMini in a practical application
ESP32-C3 and Micro SD Card Module for Data Logging
This circuit features an ESP32-C3 microcontroller interfaced with a Micro SD Card Module. The ESP32-C3 handles SPI communication with the SD card for data storage and retrieval, with specific GPIO pins assigned for MOSI, MISO, SCK, and CS signals.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP32-C6sm-ST7735: A project utilizing ESP 32 C3 SuperMini in a practical application
ESP32-C6 and ST7735S Display: Wi-Fi Controlled TFT Display Module
This circuit features an ESP32-C6 microcontroller interfaced with a China ST7735S 160x128 TFT display. The ESP32-C6 controls the display via SPI communication, providing power, ground, and control signals to render graphics and text on the screen.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • IoT devices and smart home automation
  • Wearable electronics
  • Wireless sensor networks
  • Industrial control systems
  • Prototyping and development of connected devices

Technical Specifications

Key Technical Details

Parameter Specification
Microcontroller Core RISC-V single-core, 32-bit
Clock Speed Up to 160 MHz
Flash Memory 4 MB (varies by model)
SRAM 400 KB
Wi-Fi 802.11 b/g/n (2.4 GHz)
Bluetooth BLE 5.0
Operating Voltage 3.3V
GPIO Pins 22
ADC Channels 6 (12-bit resolution)
UART Interfaces 2
SPI Interfaces 2
I2C Interfaces 1
Power Consumption Ultra-low power in deep sleep mode
Dimensions 18 mm x 25.5 mm

Pin Configuration and Descriptions

Pin Number Pin Name Description
1 3V3 Power supply input (3.3V)
2 GND Ground
3 GPIO0 General-purpose I/O, boot mode select
4 GPIO1 General-purpose I/O
5 GPIO2 General-purpose I/O
6 GPIO3 General-purpose I/O
7 TXD UART Transmit
8 RXD UART Receive
9 ADC1_CH0 Analog-to-Digital Converter channel
10 EN Enable pin (active high)

Note: The exact pinout may vary slightly depending on the specific ESP32-C3 SuperMini module variant. Always refer to the datasheet for your module.

Usage Instructions

How to Use the ESP32-C3 SuperMini in a Circuit

  1. Power Supply: Connect the 3V3 pin to a stable 3.3V power source and the GND pin to ground.
  2. Programming: Use a USB-to-UART adapter to connect the TXD and RXD pins to your computer for programming. Ensure GPIO0 is pulled low during boot to enter programming mode.
  3. GPIO Usage: Configure GPIO pins as input or output in your code. Avoid exceeding the maximum current rating of 12 mA per pin.
  4. Wi-Fi and Bluetooth: Use the ESP-IDF or Arduino IDE to configure and enable wireless communication.

Important Considerations

  • Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels to avoid damaging the microcontroller.
  • Deep Sleep Mode: Use deep sleep mode to minimize power consumption in battery-powered applications.
  • Antenna Placement: For optimal wireless performance, ensure the onboard antenna is not obstructed by metal objects or enclosures.

Example Code for Arduino IDE

Below is an example of how to connect the ESP32-C3 SuperMini to a Wi-Fi network using the Arduino IDE:

#include <WiFi.h> // Include the Wi-Fi library

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_PASSWORD"; // Replace with your Wi-Fi password

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  delay(1000);          // Wait for serial monitor to initialize

  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password); // Start Wi-Fi connection

  while (WiFi.status() != WL_CONNECTED) {
    delay(500); // Wait for connection
    Serial.print(".");
  }

  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the device's IP address
}

void loop() {
  // Add your main code here
}

Tip: Ensure you have installed the ESP32 board package in the Arduino IDE before uploading the code.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Wi-Fi Connection Fails

    • Cause: Incorrect SSID or password.
    • Solution: Double-check the Wi-Fi credentials in your code.
  2. Module Not Detected by Computer

    • Cause: Missing or incorrect USB-to-UART drivers.
    • Solution: Install the correct drivers for your USB-to-UART adapter.
  3. GPIO Pins Not Responding

    • Cause: Incorrect pin configuration or exceeding current limits.
    • Solution: Verify pinMode settings in your code and ensure the current does not exceed 12 mA.
  4. Overheating

    • Cause: Excessive power draw or improper power supply.
    • Solution: Use a stable 3.3V power source and avoid overloading the module.

FAQs

  • Q: Can the ESP32-C3 SuperMini operate on 5V?
    A: No, the ESP32-C3 SuperMini operates at 3.3V. Connecting 5V directly may damage the module.

  • Q: How do I reset the module?
    A: Pull the EN pin low momentarily to reset the module.

  • Q: Can I use the ESP32-C3 SuperMini with the Arduino IDE?
    A: Yes, the ESP32-C3 SuperMini is fully compatible with the Arduino IDE. Install the ESP32 board package to get started.

  • Q: What is the maximum Wi-Fi range?
    A: The range depends on environmental factors but typically extends up to 50 meters indoors and 200 meters outdoors.

By following this documentation, you can effectively integrate the ESP32-C3 SuperMini into your projects and troubleshoot common issues with ease.
