How to Use esp32 r1 d32: Examples, Pinouts, and Specs

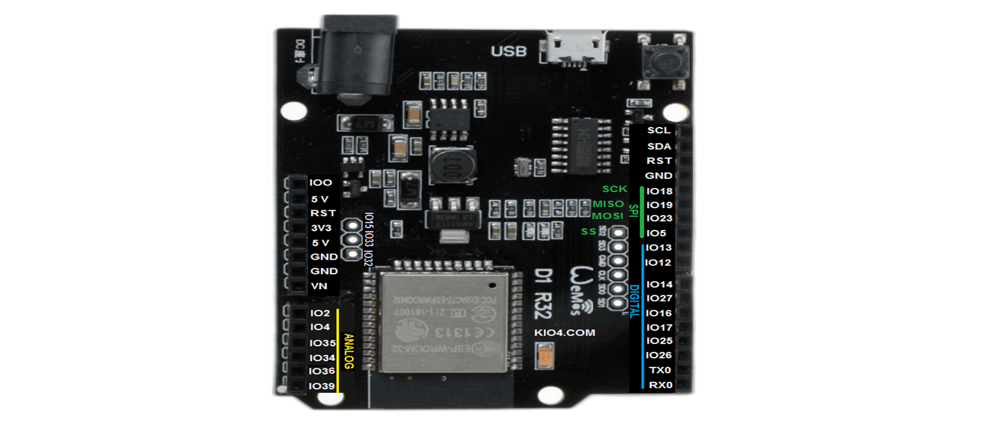

The ESP32 R1 D32, manufactured by Burhan Butt, is a powerful and versatile Wi-Fi and Bluetooth-enabled microcontroller designed for IoT (Internet of Things) applications. It is based on the ESP32 chip, which features dual-core processing, low power consumption, and a wide range of peripherals. This module is ideal for projects requiring wireless connectivity, real-time processing, and efficient power management.

• IoT devices and smart home automation
• Wireless sensor networks
• Wearable electronics
• Robotics and drones
• Industrial automation
• Real-time data logging and monitoring

The ESP32 R1 D32 offers robust performance and flexibility. Below are its key technical details:

The ESP32 R1 D32 has a total of 38 pins, with the following configuration:

For a complete pinout diagram, refer to the official datasheet.

1. Powering the Module:

   • Use a USB cable to power the module via the micro-USB port (5V input).
   • Alternatively, supply 3.3V directly to the VIN pin. Ensure the power source is stable.

2. Connecting Peripherals:

   • Use GPIO pins for digital input/output.
   • For analog input, connect sensors to ADC pins (e.g., IO4, IO5).
   • For communication, use UART, SPI, or I2C interfaces as needed.

3. Programming the ESP32 R1 D32:

   • Install the ESP32 board package in the Arduino IDE.
   • Connect the module to your computer via USB.
   • Select the correct board ("ESP32 Dev Module") and port in the Arduino IDE.
   • Write and upload your code.

• Always use a level shifter when interfacing 5V logic devices with the ESP32's 3.3V GPIO pins.
• Avoid drawing excessive current from GPIO pins (max 12 mA per pin).
• Use proper decoupling capacitors to ensure stable power supply.
• For deep sleep mode, connect GPIO0 to GND to wake the device.

Below is an example of how to blink an LED connected to GPIO2:

// Example: Blink an LED connected to GPIO2 on the ESP32 R1 D32

// Define the GPIO pin for the LED
#define LED_PIN 2

void setup() {
  // Initialize the LED pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(1000); // Wait for 1 second
}

1. ESP32 Not Detected by Computer:

   • Ensure the USB cable is functional and supports data transfer.
   • Install the correct USB-to-serial driver for your operating system.

2. Upload Fails in Arduino IDE:

   • Check that the correct board and port are selected.
   • Hold the BOOT button while uploading to force the module into programming mode.

3. Wi-Fi Connection Issues:

   • Verify the SSID and password in your code.
   • Ensure the router is within range and supports 2.4 GHz Wi-Fi.

4. Random Resets or Instability:

   • Check the power supply for voltage drops or noise.
   • Use a capacitor (e.g., 10 µF) across the VIN and GND pins for stability.

Q: Can the ESP32 R1 D32 operate on battery power?
A: Yes, it can be powered by a 3.7V LiPo battery connected to the VIN pin. Use a voltage regulator if needed.

Q: How do I use Bluetooth on the ESP32 R1 D32?
A: The ESP32 supports both Bluetooth Classic and BLE. Use the BluetoothSerial or BLEDevice library in the Arduino IDE to implement Bluetooth functionality.

Q: What is the maximum range of the Wi-Fi module?
A: The Wi-Fi range is approximately 50 meters indoors and up to 200 meters outdoors, depending on environmental factors.

For additional support, refer to the official datasheet or community forums.
