How to Use esp32 type c: Examples, Pinouts, and Specs

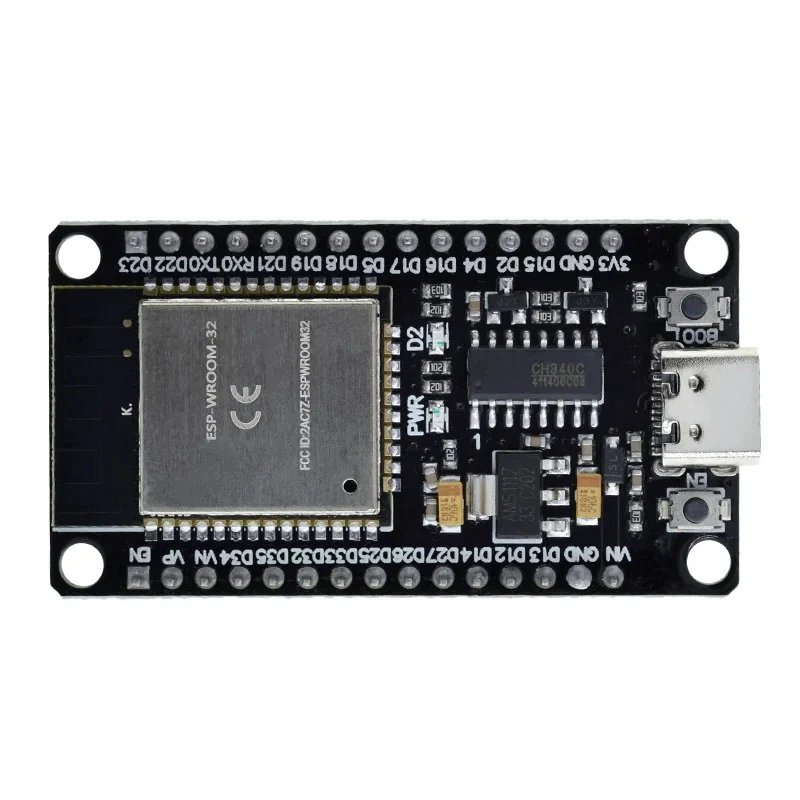

The ESP32 Type-C, manufactured by IRPANGTG, is a powerful and versatile microcontroller module designed for IoT (Internet of Things) applications. It features dual-core processing, integrated Wi-Fi and Bluetooth capabilities, and a USB Type-C interface for power and programming. This module is ideal for projects requiring wireless communication, low power consumption, and high processing power.

• Smart home devices (e.g., smart lights, thermostats)
• Wearable technology
• Industrial IoT systems
• Wireless sensor networks
• Robotics and automation
• Prototyping and development of IoT solutions

The ESP32 Type-C is built to deliver high performance while maintaining energy efficiency. Below are its key technical details:

The ESP32 Type-C module has a total of 34 GPIO pins, each with multiple functionalities. Below is a summary of the pin configuration:

Note: Some GPIO pins have specific restrictions or are reserved for internal functions. Refer to the IRPANGTG ESP32 Type-C datasheet for detailed pin mappings.

The ESP32 Type-C is easy to integrate into a variety of projects. Below are the steps and best practices for using this module:

1. Powering the Module:

   • Connect the USB Type-C port to a 5V power source or computer for power and programming.
   • Alternatively, supply 3.3V directly to the 3V3 pin if not using USB.

2. Programming the Module:

   • Install the Arduino IDE or ESP-IDF for development.
   • Add the ESP32 board support package to the Arduino IDE via the Board Manager.
   • Select "ESP32 Dev Module" as the board and the appropriate COM port.

3. Connecting Peripherals:

   • Use GPIO pins for connecting sensors, actuators, or other peripherals.
   • Ensure proper voltage levels (3.3V logic) to avoid damaging the module.

4. Uploading Code:

   • Write your code in the Arduino IDE or ESP-IDF.
   • Press the "Upload" button in the IDE to flash the code to the ESP32 Type-C.

The following example demonstrates how to blink an LED connected to GPIO2:

// Define the GPIO pin for the LED
#define LED_PIN 2

void setup() {
  // Set the LED pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(1000); // Wait for 1 second
}

• Voltage Levels: Ensure all connected devices operate at 3.3V logic levels. Use level shifters if necessary.
• Deep Sleep Mode: Use deep sleep mode to minimize power consumption in battery-powered applications.
• Pin Multiplexing: Be aware of pin multiplexing and avoid conflicts between peripherals.
• Heat Management: The ESP32 may heat up during operation. Ensure proper ventilation or heat dissipation if used in high-performance applications.

1. Issue: The ESP32 Type-C is not detected by the computer.
   Solution:

   • Ensure the USB Type-C cable supports data transfer (not just charging).
   • Install the required USB-to-serial drivers for your operating system.

2. Issue: Code upload fails with a timeout error.
   Solution:

   • Check the COM port selection in the Arduino IDE.
   • Press and hold the "BOOT" button on the module while uploading the code.

3. Issue: Wi-Fi connection is unstable.
   Solution:

   • Ensure the Wi-Fi signal strength is adequate.
   • Use external antennas if the module supports it.

4. Issue: GPIO pins are not functioning as expected.
   Solution:

   • Verify the pin configuration and ensure no conflicts with internal functions.
   • Check for short circuits or incorrect wiring.

Q1: Can the ESP32 Type-C be powered directly from a LiPo battery?
A1: Yes, but you must use a voltage regulator to step down the battery voltage to 3.3V.

Q2: Does the ESP32 Type-C support OTA (Over-the-Air) updates?
A2: Yes, the ESP32 Type-C supports OTA updates, allowing you to upload firmware wirelessly.

Q3: Can I use the ESP32 Type-C with MicroPython?
A3: Yes, the ESP32 Type-C is compatible with MicroPython. You can flash the MicroPython firmware to the module and use it for development.

Q4: What is the maximum range of the Wi-Fi module?
A4: The Wi-Fi range depends on environmental factors but typically extends up to 100 meters in open spaces.

By following this documentation, you can effectively utilize the ESP32 Type-C in your projects and troubleshoot common issues with ease.
