How to Use VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor: Examples, Pinouts, and Specs

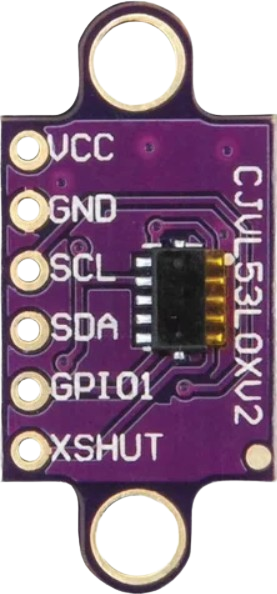

Image of VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor
Cirkit Designer LogoDesign with VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor in Cirkit Designer

Introduction

The VL53L0X GY-530 is a compact and highly accurate laser ranging sensor developed by STMicroelectronics. It utilizes advanced Time-of-Flight (ToF) technology to measure distances by emitting a laser pulse and calculating the time it takes for the reflected signal to return. This sensor is capable of measuring distances up to 2 meters with millimeter-level precision, making it ideal for applications requiring precise distance measurement.

Explore Projects Built with VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP8266 NodeMCU-Based Smart Eye Pressure Monitor with OLED Display and Wi-Fi Connectivity
Image of Copy of test 2 (7): A project utilizing VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor in a practical application
This circuit features an ESP8266 NodeMCU microcontroller interfaced with a VL53L0X time-of-flight distance sensor, a 0.96" OLED display, a piezo sensor, and a photodiode for light detection. The ESP8266 collects data from the sensors, displays readings on the OLED, and hosts a web server to present the information. It is likely designed for distance measurement, light intensity detection, and pressure sensing, with the capability to monitor and display these parameters in real-time over WiFi.
Cirkit Designer LogoOpen Project in Cirkit Designer
A-Star 32U4 Mini Controlled Servo with VL53L8CX Time-of-Flight Distance Sensing
Image of Servo con distance sensor: A project utilizing VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor in a practical application
This circuit features an A-Star 32U4 Mini microcontroller connected to a VL53L8CX Time-of-Flight distance sensor and a servo motor. The microcontroller powers both the sensor and the servo, and it is configured to communicate with the sensor via I2C (using pins 2 and 3 for SDA and SCL, respectively) and to control the servo via a PWM signal on pin 10. The purpose of the circuit is likely to measure distances and respond with movements of the servo based on the sensor readings.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B Distance Measurement System with VL53L0X Sensor
Image of inventory management 1: A project utilizing VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor in a practical application
This circuit connects a Raspberry Pi 4B to a VL53L0X V2 time-of-flight distance sensor. The Raspberry Pi provides power and communicates with the sensor via I2C protocol, enabling distance measurements to be read and processed.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B and VL53L0X Distance Sensor Integration
Image of inventory management2: A project utilizing VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor in a practical application
This circuit connects a VL53L0X V2 time-of-flight distance sensor to a Raspberry Pi 4B. The sensor is powered by the 3.3V supply from the Raspberry Pi and communicates with it via the I2C protocol using GPIO2 (SDA) and GPIO3 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Copy of test 2 (7): A project utilizing VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor in a practical application
ESP8266 NodeMCU-Based Smart Eye Pressure Monitor with OLED Display and Wi-Fi Connectivity
This circuit features an ESP8266 NodeMCU microcontroller interfaced with a VL53L0X time-of-flight distance sensor, a 0.96" OLED display, a piezo sensor, and a photodiode for light detection. The ESP8266 collects data from the sensors, displays readings on the OLED, and hosts a web server to present the information. It is likely designed for distance measurement, light intensity detection, and pressure sensing, with the capability to monitor and display these parameters in real-time over WiFi.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Servo con distance sensor: A project utilizing VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor in a practical application
A-Star 32U4 Mini Controlled Servo with VL53L8CX Time-of-Flight Distance Sensing
This circuit features an A-Star 32U4 Mini microcontroller connected to a VL53L8CX Time-of-Flight distance sensor and a servo motor. The microcontroller powers both the sensor and the servo, and it is configured to communicate with the sensor via I2C (using pins 2 and 3 for SDA and SCL, respectively) and to control the servo via a PWM signal on pin 10. The purpose of the circuit is likely to measure distances and respond with movements of the servo based on the sensor readings.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of inventory management 1: A project utilizing VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor in a practical application
Raspberry Pi 4B Distance Measurement System with VL53L0X Sensor
This circuit connects a Raspberry Pi 4B to a VL53L0X V2 time-of-flight distance sensor. The Raspberry Pi provides power and communicates with the sensor via I2C protocol, enabling distance measurements to be read and processed.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of inventory management2: A project utilizing VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor in a practical application
Raspberry Pi 4B and VL53L0X Distance Sensor Integration
This circuit connects a VL53L0X V2 time-of-flight distance sensor to a Raspberry Pi 4B. The sensor is powered by the 3.3V supply from the Raspberry Pi and communicates with it via the I2C protocol using GPIO2 (SDA) and GPIO3 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Obstacle detection in robotics
  • Gesture recognition systems
  • Proximity sensing in IoT devices
  • Autonomous navigation for drones and vehicles
  • Industrial automation and safety systems

Technical Specifications

The following table outlines the key technical details of the VL53L0X sensor:

Parameter Value
Operating Voltage 2.6V to 3.5V
Communication Interface I²C (up to 400 kHz)
Measurement Range 30mm to 2000mm
Accuracy ±3% (typical)
Field of View (FoV) 25°
Operating Temperature -20°C to +70°C
Power Consumption 20mW (typical)
Laser Wavelength 940nm (Class 1, eye-safe)

Pin Configuration and Descriptions

The VL53L0X module typically comes with the following pinout:

Pin Name Description
VIN Power supply input (3.3V or 5V)
GND Ground
SDA I²C data line
SCL I²C clock line
XSHUT Shutdown pin (active low, optional)
GPIO1 Interrupt output (optional, configurable)

Usage Instructions

How to Use the VL53L0X in a Circuit

  1. Power Supply: Connect the VIN pin to a 3.3V or 5V power source and GND to ground.
  2. I²C Communication: Connect the SDA and SCL pins to the corresponding I²C pins on your microcontroller. Use pull-up resistors (typically 4.7kΩ) if not already present on the module.
  3. Optional Pins:
    • Connect the XSHUT pin to a GPIO pin on your microcontroller for enabling/disabling the sensor.
    • Use the GPIO1 pin for interrupt-based distance measurement if required.

Important Considerations and Best Practices

  • Ensure the sensor is not exposed to direct sunlight or reflective surfaces, as this may affect accuracy.
  • Avoid placing the sensor too close to the target object (minimum range is 30mm).
  • Use a stable power supply to minimize noise and ensure consistent readings.
  • If multiple VL53L0X sensors are used on the same I²C bus, configure unique I²C addresses for each sensor.

Example Code for Arduino UNO

Below is an example of how to interface the VL53L0X with an Arduino UNO using the Adafruit VL53L0X library:

#include <Wire.h>
#include <Adafruit_VL53L0X.h>

// Create an instance of the VL53L0X sensor
Adafruit_VL53L0X lox = Adafruit_VL53L0X();

void setup() {
  Serial.begin(9600); // Initialize serial communication
  while (!Serial) {
    delay(10); // Wait for Serial Monitor to open
  }

  Serial.println("VL53L0X Test");

  // Initialize the sensor
  if (!lox.begin()) {
    Serial.println("Failed to initialize VL53L0X! Check connections.");
    while (1);
  }
  Serial.println("VL53L0X initialized successfully.");
}

void loop() {
  VL53L0X_RangingMeasurementData_t measure;

  // Perform a ranging measurement
  lox.rangingTest(&measure, false);

  // Check if the measurement is valid
  if (measure.RangeStatus != 4) { // 4 indicates an out-of-range error
    Serial.print("Distance (mm): ");
    Serial.println(measure.RangeMilliMeter);
  } else {
    Serial.println("Out of range");
  }

  delay(100); // Wait before the next measurement
}

Notes:

  • Install the Adafruit VL53L0X library via the Arduino Library Manager before running the code.
  • Adjust the delay() in the loop to control the measurement frequency.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Sensor Not Detected on I²C Bus:

    • Ensure the SDA and SCL connections are correct.
    • Verify that pull-up resistors are present on the I²C lines.
    • Check the power supply voltage (3.3V or 5V).
  2. Inaccurate Distance Measurements:

    • Avoid reflective or transparent surfaces in the sensor's field of view.
    • Ensure the sensor is mounted perpendicular to the target surface.
    • Check for obstructions near the sensor's aperture.
  3. Out-of-Range Errors:

    • Ensure the target object is within the sensor's measurement range (30mm to 2000mm).
    • Avoid using the sensor in environments with excessive ambient light.

FAQs

Q: Can the VL53L0X measure distances through glass?
A: The sensor may struggle with transparent surfaces like glass, as the laser signal can refract or scatter, leading to inaccurate readings.

Q: How do I use multiple VL53L0X sensors on the same I²C bus?
A: Use the XSHUT pin to reset each sensor individually and assign a unique I²C address during initialization.

Q: Is the laser safe for human eyes?
A: Yes, the VL53L0X uses a Class 1 laser, which is eye-safe under normal operating conditions.

By following this documentation, you can effectively integrate the VL53L0X sensor into your projects and troubleshoot common issues with ease.
