How to Use ESP32-S3 N16R8: Examples, Pinouts, and Specs

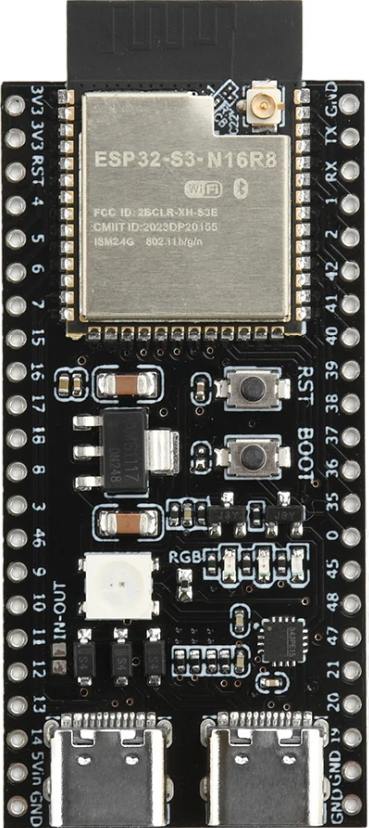

Image of ESP32-S3 N16R8
Cirkit Designer LogoDesign with ESP32-S3 N16R8 in Cirkit Designer

Introduction

The ESP32-S3 N16R8 is a powerful microcontroller designed for advanced IoT applications and complex processing tasks. It features integrated Wi-Fi and Bluetooth connectivity, making it ideal for wireless communication in smart devices. With 16MB of flash memory and 8MB of RAM, the ESP32-S3 N16R8 is well-suited for applications requiring high performance, such as AI processing, edge computing, and multimedia streaming.

Explore Projects Built with ESP32-S3 N16R8

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-S3 GPS and Wind Speed Logger with Dual OLED Displays and CAN Bus
Image of esp32-s3-ellipse: A project utilizing ESP32-S3 N16R8 in a practical application
This circuit features an ESP32-S3 microcontroller interfaced with an SD card module, two OLED displays, a GPS module, and a CAN bus module. The ESP32-S3 records GPS data to the SD card, displays speed on one OLED, and shows wind speed from the CAN bus on the other OLED, providing a comprehensive data logging and display system.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-S3 GPS Logger and Wind Speed Display with Dual OLED and CAN Bus
Image of Copy of esp32-s3-ellipse: A project utilizing ESP32-S3 N16R8 in a practical application
This circuit features an ESP32-S3 microcontroller interfaced with an SD card, two OLED displays, a GPS module, and a CAN bus module. It records GPS data to the SD card every second, displays speed in knots on one OLED display, and shows wind speed from the CAN bus in NMEA 2000 format on the other OLED display.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-S3 Based Environmental Monitoring and Control System with Data Logging
Image of ESP32: A project utilizing ESP32-S3 N16R8 in a practical application
This circuit features an ESP32-S3 microcontroller interfaced with various sensors and modules, including a DHT22 temperature and humidity sensor, an HC-SR04 ultrasonic sensor, an SGP41 VOC and NOx sensor, and an Adafruit INA260 current and power sensor. The ESP32-S3 also controls a DC motor via a relay and communicates with an SD card and an OLED display. An Arduino UNO is used to read inputs from a rotary encoder, and a step-down buck converter is used to regulate voltage from a 12V battery to power the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
Image of gps projekt circuit: A project utilizing ESP32-S3 N16R8 in a practical application
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32-S3 N16R8

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of esp32-s3-ellipse: A project utilizing ESP32-S3 N16R8 in a practical application
ESP32-S3 GPS and Wind Speed Logger with Dual OLED Displays and CAN Bus
This circuit features an ESP32-S3 microcontroller interfaced with an SD card module, two OLED displays, a GPS module, and a CAN bus module. The ESP32-S3 records GPS data to the SD card, displays speed on one OLED, and shows wind speed from the CAN bus on the other OLED, providing a comprehensive data logging and display system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of esp32-s3-ellipse: A project utilizing ESP32-S3 N16R8 in a practical application
ESP32-S3 GPS Logger and Wind Speed Display with Dual OLED and CAN Bus
This circuit features an ESP32-S3 microcontroller interfaced with an SD card, two OLED displays, a GPS module, and a CAN bus module. It records GPS data to the SD card every second, displays speed in knots on one OLED display, and shows wind speed from the CAN bus in NMEA 2000 format on the other OLED display.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP32: A project utilizing ESP32-S3 N16R8 in a practical application
ESP32-S3 Based Environmental Monitoring and Control System with Data Logging
This circuit features an ESP32-S3 microcontroller interfaced with various sensors and modules, including a DHT22 temperature and humidity sensor, an HC-SR04 ultrasonic sensor, an SGP41 VOC and NOx sensor, and an Adafruit INA260 current and power sensor. The ESP32-S3 also controls a DC motor via a relay and communicates with an SD card and an OLED display. An Arduino UNO is used to read inputs from a rotary encoder, and a step-down buck converter is used to regulate voltage from a 12V battery to power the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of gps projekt circuit: A project utilizing ESP32-S3 N16R8 in a practical application
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wearable technology
  • AI and machine learning at the edge
  • Wireless sensor networks
  • Multimedia applications, including audio and video streaming
  • Industrial automation and robotics

Technical Specifications

The ESP32-S3 N16R8 offers a robust set of features and specifications to meet the demands of modern applications.

Key Technical Details

Parameter Specification
Microcontroller Xtensa® 32-bit LX7 dual-core processor
Clock Speed Up to 240 MHz
Flash Memory 16MB
RAM 8MB
Wi-Fi 802.11 b/g/n (2.4 GHz)
Bluetooth Bluetooth 5.0 (LE)
GPIO Pins 45
Operating Voltage 3.0V to 3.6V
Power Consumption Ultra-low power modes available
Interfaces SPI, I2C, I2S, UART, ADC, DAC, PWM
Operating Temperature -40°C to +85°C

Pin Configuration and Descriptions

The ESP32-S3 N16R8 has a versatile pinout to support a wide range of peripherals and interfaces.

Pin Name Function Description
GPIO0 Input/Output, Boot Mode Selection Used for boot mode selection during startup.
GPIO1 UART TX Transmit pin for UART communication.
GPIO2 Input/Output General-purpose I/O pin.
GPIO3 UART RX Receive pin for UART communication.
GPIO4 PWM, Input/Output Supports PWM and general-purpose I/O.
GPIO5 SPI CLK Clock pin for SPI communication.
GPIO12 ADC, Input/Output Analog-to-digital converter and GPIO.
GPIO13 DAC, Input/Output Digital-to-analog converter and GPIO.
GPIO21 I2C SDA Data line for I2C communication.
GPIO22 I2C SCL Clock line for I2C communication.
EN Enable Chip enable pin; active high.
3V3 Power 3.3V power supply input.
GND Ground Ground connection.

Note: The ESP32-S3 N16R8 has additional GPIO pins and features. Refer to the full datasheet for a complete pinout.

Usage Instructions

The ESP32-S3 N16R8 is highly versatile and can be used in a variety of applications. Below are the steps and best practices for using this microcontroller in a circuit.

How to Use the ESP32-S3 N16R8 in a Circuit

  1. Power Supply: Provide a stable 3.3V power supply to the 3V3 pin and connect the GND pin to ground.
  2. Boot Mode: To upload code, connect GPIO0 to ground during startup to enter bootloader mode.
  3. Programming: Use a USB-to-serial adapter or a development board with built-in USB support to program the ESP32-S3 N16R8.
  4. Peripherals: Connect sensors, actuators, or other peripherals to the GPIO pins. Use appropriate pull-up or pull-down resistors if required.
  5. Wi-Fi and Bluetooth: Configure the Wi-Fi and Bluetooth settings in your code to enable wireless communication.

Important Considerations and Best Practices

  • Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels to avoid damaging the microcontroller.
  • Decoupling Capacitors: Place decoupling capacitors (e.g., 0.1 µF) near the power pins to stabilize the power supply.
  • Heat Management: For high-performance applications, consider adding a heatsink or ensuring proper ventilation to manage heat dissipation.
  • Firmware Updates: Regularly update the firmware to benefit from the latest features and security patches.

Example Code for Arduino UNO Integration

The ESP32-S3 N16R8 can be programmed using the Arduino IDE. Below is an example of connecting the ESP32-S3 N16R8 to a Wi-Fi network and controlling an LED.

#include <WiFi.h> // Include the Wi-Fi library

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

const int ledPin = 2; // GPIO2 is connected to an LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set GPIO2 as an output
  Serial.begin(115200);    // Initialize serial communication

  // Connect to Wi-Fi
  Serial.print("Connecting to Wi-Fi");
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP());
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Note: Replace Your_SSID and Your_PASSWORD with your Wi-Fi network credentials.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32-S3 N16R8 Not Responding

    • Cause: Incorrect boot mode configuration.
    • Solution: Ensure GPIO0 is connected to ground during startup for bootloader mode.
  2. Wi-Fi Connection Fails

    • Cause: Incorrect SSID or password.
    • Solution: Double-check the Wi-Fi credentials in your code.
  3. Overheating

    • Cause: High processing load or insufficient ventilation.
    • Solution: Reduce the workload or improve heat dissipation with a heatsink.
  4. Peripheral Not Working

    • Cause: Incorrect GPIO configuration.
    • Solution: Verify the pin assignments and ensure proper initialization in the code.

FAQs

Q: Can the ESP32-S3 N16R8 operate on 5V?
A: No, the ESP32-S3 N16R8 operates at 3.3V. Connecting 5V directly to its pins may damage the microcontroller.

Q: How do I reset the ESP32-S3 N16R8?
A: You can reset the microcontroller by toggling the EN pin or pressing the reset button on a development board.

Q: Is the ESP32-S3 N16R8 compatible with Arduino libraries?
A: Yes, the ESP32-S3 N16R8 is compatible with most Arduino libraries, but some may require modifications for optimal performance.

Q: Can I use the ESP32-S3 N16R8 for AI applications?
A: Yes, the ESP32-S3 N16R8 supports AI processing and is suitable for edge computing tasks.
