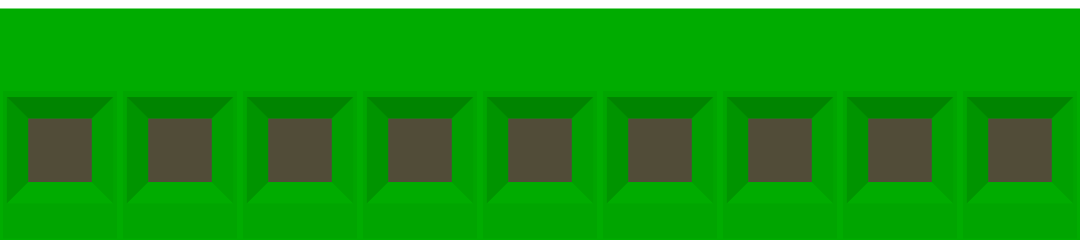

How to Use Camdenboss CTB0158-9: Examples, Pinouts, and Specs

The Camdenboss CTB0158-9 is a compact terminal block designed for easy wiring and connection of electrical circuits. It features multiple terminals that provide secure and reliable connections, making it an essential component for various electrical and electronic applications. Its robust design ensures durability and ease of use, even in demanding environments.

• Industrial control panels and automation systems
• Electrical distribution boards
• Prototyping and testing circuits
• Home and building electrical wiring
• Securely connecting multiple wires in a compact space

The Camdenboss CTB0158-9 is designed to meet the needs of modern electrical systems. Below are its key technical details:

The CTB0158-9 terminal block does not have traditional "pins" like an IC but instead features screw terminals for wire connections. Below is a description of its terminal layout:

The Camdenboss CTB0158-9 is straightforward to use and can be integrated into a variety of electrical and electronic systems. Follow the steps below for proper usage:

1. Prepare the Wires: Strip the insulation from the ends of the wires you intend to connect. Ensure the exposed wire length is approximately 5–7mm.
2. Open the Terminal: Use a screwdriver to loosen the screw on the terminal where the wire will be inserted.
3. Insert the Wire: Place the stripped end of the wire into the terminal opening.
4. Secure the Connection: Tighten the screw to clamp the wire securely in place. Avoid overtightening, as this may damage the wire or terminal.
5. Repeat for Additional Wires: Repeat the process for all other terminals as needed.

• Wire Compatibility: Ensure the wire gauge is within the supported range (24–14 AWG).
• Avoid Overloading: Do not exceed the rated voltage (450V AC) or current (24A) to prevent overheating or damage.
• Secure Mounting: If using the PCB mount version, solder the terminal block securely to the PCB. For DIN rail mounting, use the appropriate adapter.
• Environmental Conditions: Ensure the terminal block is used within its operating temperature range (-40°C to +105°C).
• Periodic Maintenance: Check the tightness of the screws periodically, especially in environments with vibration.

While the CTB0158-9 is not an active electronic component, it can be used to organize and secure connections between an Arduino UNO and external devices. Below is an example of how to use it in a circuit:

1. Connect the Arduino's digital pins to the CTB0158-9 terminals using jumper wires.
2. Use the other side of the terminal block to connect external devices (e.g., LEDs, sensors, or relays).
3. Ensure proper grounding by connecting the Arduino's GND pin to one of the terminal block's terminals.

Here is an example Arduino code for controlling an LED connected via the CTB0158-9:

// Example: Blink an LED connected through the CTB0158-9 terminal block

const int ledPin = 9; // Pin connected to the LED via the terminal block

void setup() {
  pinMode(ledPin, OUTPUT); // Set the pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000); // Wait for 1 second
  digitalWrite(ledPin, LOW); // Turn the LED off
  delay(1000); // Wait for 1 second
}

1. Loose Connections: Wires may come loose if the screws are not tightened properly.
   • Solution: Ensure all screws are securely tightened without overtightening.
2. Overheating: The terminal block may overheat if the current exceeds the rated 24A.
   • Solution: Verify that the connected load does not exceed the rated current.
3. Wire Slippage: Thin wires may slip out of the terminal.
   • Solution: Use ferrules or tin the wire ends to improve grip.
4. Short Circuits: Adjacent terminals may short if wires are improperly stripped or frayed.
   • Solution: Ensure wires are properly stripped and inserted without exposed strands.

Q: Can the CTB0158-9 be used for DC circuits?
A: Yes, the terminal block is suitable for both AC and DC circuits, provided the voltage and current ratings are not exceeded.

Q: Is the terminal block reusable?
A: Yes, the CTB0158-9 can be reused multiple times. However, ensure the screws and terminals are not damaged during use.

Q: Can it be mounted on a DIN rail?
A: Yes, with the appropriate adapter, the CTB0158-9 can be mounted on a DIN rail for industrial applications.

Q: What tools are required for installation?
A: A standard flathead or Phillips screwdriver is sufficient for securing wires in the terminals.

By following this documentation, users can effectively integrate the Camdenboss CTB0158-9 into their projects and ensure reliable performance.
