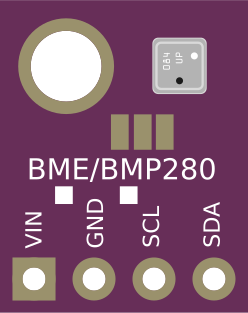

Image of BME/BMP280
Cirkit Designer LogoDesign with BME/BMP280 in Cirkit Designer

Introduction

The BME/BMP280 is a high-precision digital sensor designed to measure temperature, humidity, and atmospheric pressure. Manufactured by Bosch Sensortec, this sensor is widely used in weather stations, Internet of Things (IoT) devices, and environmental monitoring systems. Its compact size, low power consumption, and high accuracy make it an ideal choice for battery-powered and portable applications.

The BME280 is capable of measuring temperature, humidity, and pressure, while the BMP280 is a variant that measures only temperature and pressure. Both sensors communicate via I2C or SPI interfaces, making them easy to integrate with microcontrollers and development boards like the Arduino UNO.

Explore Projects Built with BME/BMP280

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Environmental Monitoring System with Solar Charging
Image of IoT Ola (Final): A project utilizing BME/BMP280 in a practical application
This circuit features an ESP32 microcontroller interfaced with a BME/BMP280 sensor for environmental monitoring and an MH-Z19B sensor for CO2 measurement, both communicating via I2C (SCL, SDA) and serial (TX, RX) connections respectively. It includes a SIM800L module for GSM communication, connected to the ESP32 via serial (TXD, RXD). Power management is handled by two TP4056 modules for charging 18650 Li-ion batteries via solar panels, with a step-up boost converter to provide consistent voltage to the MH-Z19B, and voltage regulation for the SIM800L. Decoupling capacitors are used to stabilize the power supply to the BME/BMP280 and ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Sensing Station with Wi-Fi and Light Intensity Measurement
Image of multi esp32: A project utilizing BME/BMP280 in a practical application
This circuit is designed to collect environmental data and light intensity measurements using the ESP32 microcontroller, which communicates with a BME/BMP280 sensor and a BH1750 sensor via I2C, and transmits the data through an LD2410C communication module using serial communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled Environmental Monitoring and Fan Regulation System
Image of PWM STandard ESP32WROOM (tested): A project utilizing BME/BMP280 in a practical application
This circuit features an ESP32 microcontroller interfaced with a BME/BMP280 sensor for environmental monitoring, controlling a 12V PWM fan via a relay module. The ESP32 uses I2C communication (SCL, SDA) to read data from the BME/BMP280 sensor and controls the fan speed and on/off state through GPIO pins connected to the relay and the fan's PWM input. A USB regulator provides power to the circuit, and the DC power source is used to drive the relay and the fan.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO with Dual BME/BMP280 Sensors for Environmental Monitoring
Image of Instrumentation: A project utilizing BME/BMP280 in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a BME/BMP280 sensor. The Arduino provides power to the sensor and communicates with it via I2C, using its A4 and A5 pins as SDA and SCL lines, respectively. The purpose of this circuit is likely to read environmental data such as temperature, pressure, and humidity from the BME/BMP280 sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with BME/BMP280

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of IoT Ola (Final): A project utilizing BME/BMP280 in a practical application
ESP32-Based Environmental Monitoring System with Solar Charging
This circuit features an ESP32 microcontroller interfaced with a BME/BMP280 sensor for environmental monitoring and an MH-Z19B sensor for CO2 measurement, both communicating via I2C (SCL, SDA) and serial (TX, RX) connections respectively. It includes a SIM800L module for GSM communication, connected to the ESP32 via serial (TXD, RXD). Power management is handled by two TP4056 modules for charging 18650 Li-ion batteries via solar panels, with a step-up boost converter to provide consistent voltage to the MH-Z19B, and voltage regulation for the SIM800L. Decoupling capacitors are used to stabilize the power supply to the BME/BMP280 and ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of multi esp32: A project utilizing BME/BMP280 in a practical application
ESP32-Based Environmental Sensing Station with Wi-Fi and Light Intensity Measurement
This circuit is designed to collect environmental data and light intensity measurements using the ESP32 microcontroller, which communicates with a BME/BMP280 sensor and a BH1750 sensor via I2C, and transmits the data through an LD2410C communication module using serial communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PWM STandard ESP32WROOM (tested): A project utilizing BME/BMP280 in a practical application
ESP32-Controlled Environmental Monitoring and Fan Regulation System
This circuit features an ESP32 microcontroller interfaced with a BME/BMP280 sensor for environmental monitoring, controlling a 12V PWM fan via a relay module. The ESP32 uses I2C communication (SCL, SDA) to read data from the BME/BMP280 sensor and controls the fan speed and on/off state through GPIO pins connected to the relay and the fan's PWM input. A USB regulator provides power to the circuit, and the DC power source is used to drive the relay and the fan.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Instrumentation: A project utilizing BME/BMP280 in a practical application
Arduino UNO with Dual BME/BMP280 Sensors for Environmental Monitoring
This circuit consists of an Arduino UNO microcontroller connected to a BME/BMP280 sensor. The Arduino provides power to the sensor and communicates with it via I2C, using its A4 and A5 pins as SDA and SCL lines, respectively. The purpose of this circuit is likely to read environmental data such as temperature, pressure, and humidity from the BME/BMP280 sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Key Specifications

Parameter BME280 BMP280
Supply Voltage 1.71V to 3.6V 1.71V to 3.6V
Operating Current 2.7 µA (humidity + pressure + temp) 2.7 µA (pressure + temp)
Temperature Range -40°C to +85°C -40°C to +85°C
Humidity Range 0% to 100% RH Not applicable
Pressure Range 300 hPa to 1100 hPa 300 hPa to 1100 hPa
Communication Interface I2C (up to 3.4 MHz) or SPI (up to 10 MHz) I2C (up to 3.4 MHz) or SPI (up to 10 MHz)
Accuracy (Temperature) ±1.0°C ±1.0°C
Accuracy (Pressure) ±1 hPa ±1 hPa
Accuracy (Humidity) ±3% RH Not applicable

Pin Configuration

The BME/BMP280 sensor module typically comes with a breakout board that includes the following pins:

Pin Name Description
VCC Power supply pin (1.71V to 3.6V). Connect to 3.3V for most applications.
GND Ground pin. Connect to the ground of the circuit.
SCL Serial Clock Line for I2C communication or SPI clock input.
SDA Serial Data Line for I2C communication or SPI data input/output.
CS Chip Select for SPI communication. Pull low to enable SPI mode.
SDO Serial Data Output for SPI communication or I2C address selection.

Note: For I2C communication, the SDO pin is used to set the I2C address. Connect it to GND for address 0x76 or to VCC for address 0x77.

Usage Instructions

Connecting the BME/BMP280 to an Arduino UNO

To use the BME/BMP280 with an Arduino UNO, follow these steps:

  1. Wiring: Connect the sensor to the Arduino as follows:

    • VCC3.3V
    • GNDGND
    • SCLA5 (I2C clock line on Arduino UNO)
    • SDAA4 (I2C data line on Arduino UNO)
  2. Install Libraries: Install the Adafruit BME280 or BMP280 library from the Arduino Library Manager. Go to Sketch > Include Library > Manage Libraries, search for "Adafruit BME280" or "Adafruit BMP280", and install it.

  3. Example Code: Use the following code to read temperature, humidity, and pressure from the sensor:

#include <Wire.h>
#include <Adafruit_Sensor.h>
#include <Adafruit_BME280.h>

// Create an instance of the BME280 sensor
Adafruit_BME280 bme;

// Define I2C address (0x76 or 0x77 based on SDO pin connection)
#define BME280_I2C_ADDRESS 0x76

void setup() {
  Serial.begin(9600);
  while (!Serial); // Wait for serial monitor to open

  // Initialize the BME280 sensor
  if (!bme.begin(BME280_I2C_ADDRESS)) {
    Serial.println("Could not find a valid BME280 sensor, check wiring!");
    while (1); // Halt execution if sensor is not found
  }

  Serial.println("BME280 sensor initialized successfully!");
}

void loop() {
  // Read and print temperature, humidity, and pressure
  Serial.print("Temperature: ");
  Serial.print(bme.readTemperature());
  Serial.println(" °C");

  Serial.print("Humidity: ");
  Serial.print(bme.readHumidity());
  Serial.println(" %");

  Serial.print("Pressure: ");
  Serial.print(bme.readPressure() / 100.0F); // Convert Pa to hPa
  Serial.println(" hPa");

  Serial.println(); // Add a blank line for readability
  delay(2000); // Wait 2 seconds before the next reading
}

Important Considerations

  • Power Supply: Ensure the sensor is powered with 3.3V. Using 5V may damage the sensor.
  • Pull-Up Resistors: If the breakout board does not include pull-up resistors on the I2C lines, add 4.7kΩ resistors between SCL/SDA and VCC.
  • I2C Address: Verify the I2C address (0x76 or 0x77) based on the SDO pin connection.

Troubleshooting and FAQs

Common Issues

  1. Sensor Not Detected:

    • Ensure the wiring is correct and matches the pin configuration.
    • Verify the I2C address in the code matches the hardware configuration.
    • Check if pull-up resistors are required on the I2C lines.
  2. Incorrect Readings:

    • Ensure the sensor is not exposed to extreme conditions outside its operating range.
    • Avoid placing the sensor near heat sources or in areas with high airflow.
  3. Arduino Freezes or Crashes:

    • Ensure the sensor is properly powered with 3.3V.
    • Check for loose connections or short circuits.

FAQs

Q: Can I use the BME/BMP280 with a 5V microcontroller?
A: Yes, but you must use a logic level shifter to convert the 5V signals to 3.3V. Alternatively, some breakout boards include built-in level shifters.

Q: How do I switch between I2C and SPI modes?
A: For I2C mode, leave the CS pin unconnected or pull it high. For SPI mode, connect the CS pin to the microcontroller and configure the SPI interface in your code.

Q: Can I use multiple BME/BMP280 sensors on the same I2C bus?
A: Yes, but each sensor must have a unique I2C address. Use the SDO pin to set different addresses (0x76 or 0x77).

Q: What is the difference between the BME280 and BMP280?
A: The BME280 measures temperature, humidity, and pressure, while the BMP280 measures only temperature and pressure.
