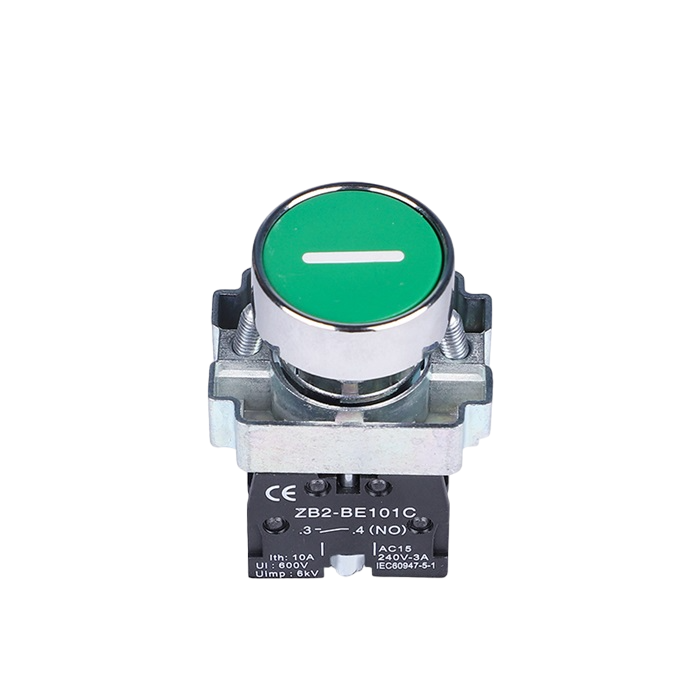

Image of Pushbutton START
Cirkit Designer LogoDesign with Pushbutton START in Cirkit Designer

Introduction

A pushbutton is a momentary switch that completes a circuit when pressed and breaks the circuit when released. It is commonly used for user input in electronic devices, such as turning devices on/off, resetting systems, or triggering specific actions. The Pushbutton START is a versatile and reliable component, ideal for applications requiring tactile user interaction.

Explore Projects Built with Pushbutton START

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Pushbutton-Controlled Interface with 40-Pin Connector and UBS Power Supply
Image of connect 4: A project utilizing Pushbutton START in a practical application
This circuit consists of a 40-pin connector interfacing with four pushbuttons and a UBS power supply. The pushbuttons are used as inputs to the connector, which then relays the signals to other components or systems. The UBS power supply provides the necessary 24V power to the pushbuttons and the common ground for the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino 101 Controlled DC Motor with Start/Stop Buttons and Pilot Lamp
Image of Skematik Motor: A project utilizing Pushbutton START in a practical application
This circuit is a motor control system using an Arduino 101, which interfaces with start and stop pushbuttons to control a DC motor via a PWM motor controller. A blue pilot lamp indicates the status, and the motor controller is powered through a socket and a DC power source.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Panic Button System with GPS and GSM Modules
Image of panic button .2\: A project utilizing Pushbutton START in a practical application
This circuit is designed as a panic button system featuring an Arduino Nano interfaced with a NEO6MV2 GPS module and three SIM800L GSM modules. It includes four pushbuttons, each assigned to trigger a call to a specific emergency service (hospital, fire department, police) or to send the GPS location. The system is powered by a lithium battery with a charging module, and it can send the GPS location to a predefined number or alongside an emergency call when the corresponding buttons are pressed simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Control with Pushbutton and Relay
Image of EXP.3 E: A project utilizing Pushbutton START in a practical application
This circuit uses a pushbutton to control a 5V relay, which in turn powers a red LED. The MAHIR 1.mini module provides the necessary 3.7V power supply, and the relay switches the LED on and off based on the pushbutton input.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Pushbutton START

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of connect 4: A project utilizing Pushbutton START in a practical application
Pushbutton-Controlled Interface with 40-Pin Connector and UBS Power Supply
This circuit consists of a 40-pin connector interfacing with four pushbuttons and a UBS power supply. The pushbuttons are used as inputs to the connector, which then relays the signals to other components or systems. The UBS power supply provides the necessary 24V power to the pushbuttons and the common ground for the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Skematik Motor: A project utilizing Pushbutton START in a practical application
Arduino 101 Controlled DC Motor with Start/Stop Buttons and Pilot Lamp
This circuit is a motor control system using an Arduino 101, which interfaces with start and stop pushbuttons to control a DC motor via a PWM motor controller. A blue pilot lamp indicates the status, and the motor controller is powered through a socket and a DC power source.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of panic button .2\: A project utilizing Pushbutton START in a practical application
Arduino Nano-Based Panic Button System with GPS and GSM Modules
This circuit is designed as a panic button system featuring an Arduino Nano interfaced with a NEO6MV2 GPS module and three SIM800L GSM modules. It includes four pushbuttons, each assigned to trigger a call to a specific emergency service (hospital, fire department, police) or to send the GPS location. The system is powered by a lithium battery with a charging module, and it can send the GPS location to a predefined number or alongside an emergency call when the corresponding buttons are pressed simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of EXP.3 E: A project utilizing Pushbutton START in a practical application
Battery-Powered LED Control with Pushbutton and Relay
This circuit uses a pushbutton to control a 5V relay, which in turn powers a red LED. The MAHIR 1.mini module provides the necessary 3.7V power supply, and the relay switches the LED on and off based on the pushbutton input.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering on/off devices
  • Resetting microcontrollers or systems
  • Triggering specific actions in embedded systems
  • User input in control panels or appliances
  • Prototyping and testing circuits

Technical Specifications

The Pushbutton START is a simple yet essential component with the following specifications:

Parameter Value
Operating Voltage 3.3V to 12V
Maximum Current Rating 50mA
Contact Resistance ≤ 50 mΩ
Insulation Resistance ≥ 100 MΩ at 500V DC
Operating Temperature -20°C to +70°C
Mechanical Durability 100,000 cycles
Mounting Type Through-hole or PCB mount

Pin Configuration and Descriptions

The Pushbutton START typically has four pins, arranged in a square configuration. The pins are internally connected in pairs, as shown below:

Pin Number Description
Pin 1 Connected to one side of the switch
Pin 2 Internally connected to Pin 1
Pin 3 Connected to the other side of the switch
Pin 4 Internally connected to Pin 3

Note: Pins 1 and 2 are electrically identical, as are Pins 3 and 4. This allows for flexible wiring in circuits.

Usage Instructions

How to Use the Pushbutton START in a Circuit

  1. Identify the Pins: Use a multimeter to confirm the internal connections between pins. Pins 1 and 2 are connected, and Pins 3 and 4 are connected.
  2. Connect to Circuit:
    • Connect one pair of pins (e.g., Pins 1 and 2) to the input signal or power source.
    • Connect the other pair (e.g., Pins 3 and 4) to the load or microcontroller input.
  3. Debounce the Signal: Pushbuttons can generate noise or "bouncing" when pressed. Use a capacitor (e.g., 0.1µF) or software debounce techniques to ensure stable operation.
  4. Test the Circuit: Press the button to verify that it completes the circuit and triggers the desired action.

Important Considerations and Best Practices

  • Voltage and Current Ratings: Ensure the pushbutton operates within its specified voltage and current limits to avoid damage.
  • Debouncing: Always implement hardware or software debouncing to prevent erratic behavior.
  • Mounting: Secure the pushbutton firmly to avoid mechanical stress or loose connections.
  • Pull-up or Pull-down Resistors: When interfacing with microcontrollers, use pull-up or pull-down resistors to ensure a defined logic state when the button is not pressed.

Example: Connecting to an Arduino UNO

Below is an example of how to use the Pushbutton START with an Arduino UNO to toggle an LED:

// Define pin numbers
const int buttonPin = 2;  // Pushbutton connected to digital pin 2
const int ledPin = 13;    // LED connected to digital pin 13

// Variable to store button state
int buttonState = 0;

void setup() {
  pinMode(buttonPin, INPUT_PULLUP); // Set button pin as input with internal pull-up
  pinMode(ledPin, OUTPUT);         // Set LED pin as output
}

void loop() {
  buttonState = digitalRead(buttonPin); // Read the button state

  if (buttonState == LOW) { // Button pressed (LOW due to pull-up resistor)
    digitalWrite(ledPin, HIGH); // Turn on the LED
  } else {
    digitalWrite(ledPin, LOW);  // Turn off the LED
  }
}

Note: The internal pull-up resistor is enabled in the code to simplify the circuit. No external resistor is required in this case.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Button Not Responding:

    • Cause: Incorrect wiring or loose connections.
    • Solution: Double-check the wiring and ensure all connections are secure.
  2. Button Generates Erratic Signals:

    • Cause: Signal bouncing due to mechanical contacts.
    • Solution: Add a capacitor (e.g., 0.1µF) across the button terminals or implement software debouncing.
  3. Microcontroller Not Detecting Button Press:

    • Cause: Missing pull-up or pull-down resistor.
    • Solution: Use an internal or external pull-up/pull-down resistor to define the logic state.
  4. Button Feels Stiff or Unresponsive:

    • Cause: Mechanical wear or debris.
    • Solution: Clean the button or replace it if worn out.

FAQs

Q: Can I use the Pushbutton START with a 5V system?
A: Yes, the Pushbutton START is compatible with systems operating between 3.3V and 12V, including 5V systems.

Q: Do I need a resistor with the pushbutton?
A: If connecting to a microcontroller, use a pull-up or pull-down resistor to ensure proper operation. For circuits with direct loads, a resistor may not be necessary.

Q: How do I debounce the pushbutton in software?
A: Implement a delay (e.g., 10-50ms) after detecting a button press to filter out bouncing signals.

Q: Can I use the Pushbutton START in outdoor applications?
A: The Pushbutton START is not weatherproof. For outdoor use, consider an enclosure or a weatherproof pushbutton.
