How to Use Diode: Examples, Pinouts, and Specs

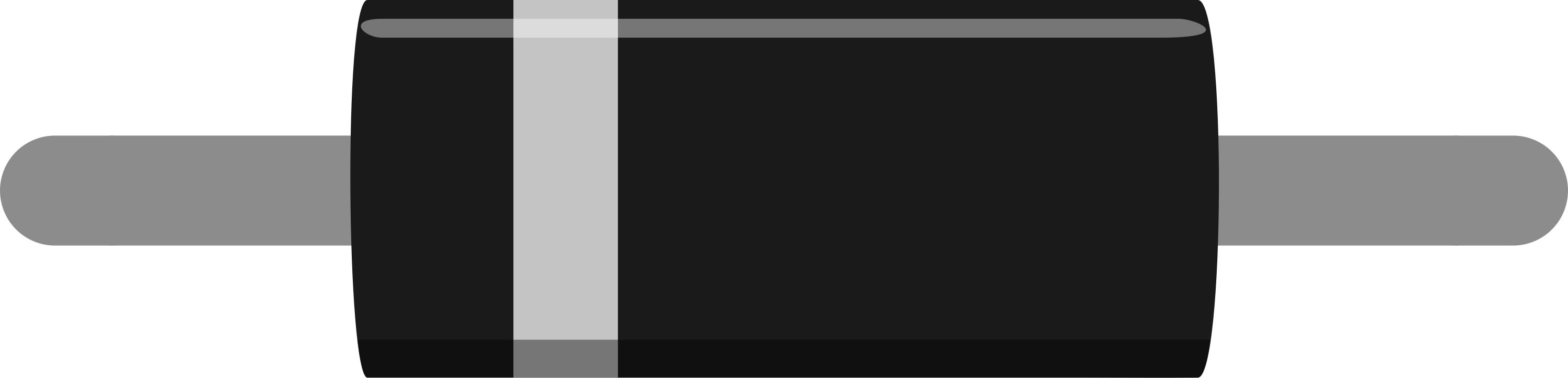

Image of Diode
Cirkit Designer LogoDesign with Diode in Cirkit Designer

Introduction

A diode is a semiconductor device that allows current to flow in one direction only, acting as a one-way valve for electrical current. It is one of the most fundamental components in electronics and is widely used in various applications. Diodes are essential for rectification, signal demodulation, voltage regulation, and circuit protection.

Explore Projects Built with Diode

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Resistor-Diode Circuit with Multimeter Current Measurement
Image of diode: A project utilizing Diode in a practical application
This circuit consists of a power supply connected in series with a resistor and a diode. A multimeter is connected across the resistor to measure the current flowing through the resistor. The diode ensures current flows in one direction, protecting the circuit from potential reverse current damage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Diode-Resistor Network for Voltage Regulation
Image of Feed bot cirkit: A project utilizing Diode in a practical application
This circuit consists of two parallel branches, each containing an 820 Ohm resistor in series with a diode. The anodes of both diodes are connected together, forming a common node.
Cirkit Designer LogoOpen Project in Cirkit Designer
Diode and Capacitor-Based Voltage Regulation Circuit
Image of Pavetra#2: A project utilizing Diode in a practical application
This circuit is a complex network of diodes and electrolytic capacitors connected to two terminal PCB 2-pin connectors. The diodes are arranged in a series-parallel configuration, while the capacitors are connected in a manner that suggests filtering or energy storage purposes. The overall design appears to be aimed at rectification and smoothing of an input signal.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC Power Supply with Diode Rectification and Bulb Indicator
Image of susa: A project utilizing Diode in a practical application
This circuit is a simple AC-powered light with a diode in series. The diode is connected in series with the AC supply's positive terminal and the AC bulb's neutral terminal, while the bulb's positive terminal is connected to the AC supply's negative terminal. The diode will rectify the AC current, allowing only one half of the AC waveform to pass through to the bulb, causing it to flicker at a rate of half the AC frequency.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Diode

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of diode: A project utilizing Diode in a practical application
Resistor-Diode Circuit with Multimeter Current Measurement
This circuit consists of a power supply connected in series with a resistor and a diode. A multimeter is connected across the resistor to measure the current flowing through the resistor. The diode ensures current flows in one direction, protecting the circuit from potential reverse current damage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Feed bot cirkit: A project utilizing Diode in a practical application
Diode-Resistor Network for Voltage Regulation
This circuit consists of two parallel branches, each containing an 820 Ohm resistor in series with a diode. The anodes of both diodes are connected together, forming a common node.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Pavetra#2: A project utilizing Diode in a practical application
Diode and Capacitor-Based Voltage Regulation Circuit
This circuit is a complex network of diodes and electrolytic capacitors connected to two terminal PCB 2-pin connectors. The diodes are arranged in a series-parallel configuration, while the capacitors are connected in a manner that suggests filtering or energy storage purposes. The overall design appears to be aimed at rectification and smoothing of an input signal.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of susa: A project utilizing Diode in a practical application
AC Power Supply with Diode Rectification and Bulb Indicator
This circuit is a simple AC-powered light with a diode in series. The diode is connected in series with the AC supply's positive terminal and the AC bulb's neutral terminal, while the bulb's positive terminal is connected to the AC supply's negative terminal. The diode will rectify the AC current, allowing only one half of the AC waveform to pass through to the bulb, causing it to flicker at a rate of half the AC frequency.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Rectification: Converting AC (alternating current) to DC (direct current) in power supplies.
  • Signal Demodulation: Extracting information from modulated signals in communication systems.
  • Voltage Regulation: Stabilizing voltage levels in circuits.
  • Circuit Protection: Preventing reverse polarity damage in sensitive components.
  • LEDs: Light-emitting diodes are specialized diodes used for illumination and indicators.

Technical Specifications

Below are the general technical specifications for a standard silicon diode (e.g., 1N4007). Specifications may vary depending on the specific diode type.

Key Technical Details

  • Forward Voltage Drop (Vf): ~0.7V (silicon diode), ~0.3V (germanium diode)
  • Maximum Reverse Voltage (Vr): 1000V (for 1N4007)
  • Maximum Forward Current (If): 1A (for 1N4007)
  • Power Dissipation: Typically 3W (varies by model)
  • Reverse Leakage Current (Ir): ~5µA at Vr (for 1N4007)
  • Operating Temperature Range: -65°C to +150°C

Pin Configuration and Descriptions

Diodes typically have two terminals: Anode and Cathode. The cathode is marked with a band or stripe on the diode body.

Pin Name Description Symbol
Anode Positive terminal; current enters here when forward-biased. A
Cathode Negative terminal; current exits here when forward-biased. K

Usage Instructions

How to Use the Diode in a Circuit

  1. Identify the Terminals: Locate the cathode (marked with a stripe) and the anode.
  2. Connect in Forward Bias:
    • Connect the anode to the positive voltage source.
    • Connect the cathode to the negative or ground terminal.
  3. Reverse Bias: If the cathode is connected to the positive voltage source and the anode to the negative, the diode will block current flow.
  4. Rectification Example: Use a diode in a bridge rectifier circuit to convert AC to DC.

Important Considerations and Best Practices

  • Forward Voltage Drop: Ensure the power supply voltage exceeds the forward voltage drop of the diode.
  • Current Rating: Do not exceed the maximum forward current rating to avoid overheating or damage.
  • Reverse Voltage: Ensure the reverse voltage does not exceed the diode's maximum reverse voltage rating.
  • Heat Dissipation: Use heat sinks or proper ventilation if the diode operates near its maximum power dissipation.

Example: Connecting a Diode to an Arduino UNO

Below is an example of using a diode to protect an Arduino UNO from reverse polarity:

/*
 * This example demonstrates how to use a diode to protect an Arduino UNO
 * from reverse polarity. The diode is placed in series with the power supply.
 */

void setup() {
  // No specific code is required for the diode itself.
  // The diode is a passive component that works automatically.
}

void loop() {
  // Example: Blink an LED connected to pin 13
  pinMode(13, OUTPUT);
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Circuit Setup:

  • Place a diode (e.g., 1N4007) in series with the Arduino's power supply.
  • Connect the anode to the positive terminal of the power source.
  • Connect the cathode to the Arduino's VIN pin.

Troubleshooting and FAQs

Common Issues

  1. Diode Not Conducting Current:

    • Cause: The diode may be reverse-biased.
    • Solution: Check the polarity of the connections. Ensure the anode is connected to the positive voltage source and the cathode to the negative.
  2. Excessive Heat:

    • Cause: The diode is operating near or beyond its maximum current rating.
    • Solution: Use a diode with a higher current rating or add a heat sink.
  3. Voltage Drop Too High:

    • Cause: The forward voltage drop of the diode is too large for the application.
    • Solution: Use a Schottky diode, which has a lower forward voltage drop (~0.2V to 0.4V).
  4. Diode Fails to Block Reverse Current:

    • Cause: The reverse voltage exceeds the diode's maximum reverse voltage rating.
    • Solution: Replace the diode with one that has a higher reverse voltage rating.

FAQs

Q1: Can I use a diode to protect my circuit from reverse polarity?
A1: Yes, placing a diode in series with the power supply can prevent damage from reverse polarity. Ensure the diode's current and voltage ratings are suitable for your circuit.

Q2: What is the difference between a standard diode and a Schottky diode?
A2: A Schottky diode has a lower forward voltage drop (0.2V to 0.4V) compared to a standard silicon diode (0.7V). Schottky diodes are faster and more efficient but have lower reverse voltage ratings.

Q3: How do I test if a diode is working?
A3: Use a multimeter in diode mode:

  • Connect the positive probe to the anode and the negative probe to the cathode. A forward voltage drop (~0.7V for silicon) indicates the diode is functional.
  • Reverse the probes. If the multimeter shows no reading, the diode is blocking reverse current as expected.

Q4: Can a diode be used to regulate voltage?
A4: Not directly. However, Zener diodes are a special type of diode designed for voltage regulation in reverse bias mode.
