How to Use Infrared Receiver: Examples, Pinouts, and Specs

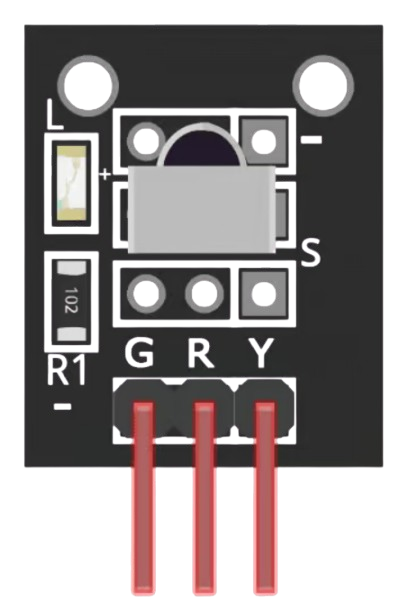

Image of Infrared Receiver
Cirkit Designer LogoDesign with Infrared Receiver in Cirkit Designer

Introduction

The Infrared Receiver is a device designed to detect and decode infrared (IR) signals. It is commonly used in remote control applications to receive commands from an IR transmitter, such as a TV remote. The receiver converts the modulated IR light signal into an electrical signal that can be processed by a microcontroller or other digital systems.

Explore Projects Built with Infrared Receiver

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO IR Remote Control Receiver
Image of IR pilot: A project utilizing Infrared Receiver in a practical application
This circuit uses an Arduino UNO to receive and decode infrared signals from a VS1838B IR Receiver. The Arduino is programmed to read the IR signals on digital pin D2 and print the decoded IR codes to the serial monitor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO IR Remote-Controlled LCD Display
Image of IR pilot - LCD1602: A project utilizing Infrared Receiver in a practical application
This circuit uses an Arduino UNO to receive infrared signals from an IR remote control via a VS1838B IR receiver and displays the received IR codes on a 16x2 I2C LCD screen. The Arduino processes the IR signals and updates the LCD with the corresponding IR code in real-time.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP-01 Based IR Remote Control Receiver
Image of Stock: A project utilizing Infrared Receiver in a practical application
This circuit consists of an ESP-01 microcontroller connected to an IR receiver. The ESP-01 is configured to receive data from the IR receiver through its GPIO0 pin, and both components share a common ground and power connection. The provided code for the ESP-01 microcontroller is a template with empty setup and loop functions, indicating that the specific functionality for the IR data processing has not been implemented yet.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Based IR Sensor Interface
Image of IR sensor: A project utilizing Infrared Receiver in a practical application
This circuit consists of an Arduino UNO microcontroller connected to an infrared (IR) sensor. The Arduino provides 5V power and ground to the IR sensor and receives sensor output signals on its digital pin D2. The purpose of this circuit is likely to detect IR signals, which the Arduino can process in its main loop, although the provided code is currently empty and does not implement any specific functionality.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Infrared Receiver

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of IR pilot: A project utilizing Infrared Receiver in a practical application
Arduino UNO IR Remote Control Receiver
This circuit uses an Arduino UNO to receive and decode infrared signals from a VS1838B IR Receiver. The Arduino is programmed to read the IR signals on digital pin D2 and print the decoded IR codes to the serial monitor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IR pilot - LCD1602: A project utilizing Infrared Receiver in a practical application
Arduino UNO IR Remote-Controlled LCD Display
This circuit uses an Arduino UNO to receive infrared signals from an IR remote control via a VS1838B IR receiver and displays the received IR codes on a 16x2 I2C LCD screen. The Arduino processes the IR signals and updates the LCD with the corresponding IR code in real-time.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Stock: A project utilizing Infrared Receiver in a practical application
ESP-01 Based IR Remote Control Receiver
This circuit consists of an ESP-01 microcontroller connected to an IR receiver. The ESP-01 is configured to receive data from the IR receiver through its GPIO0 pin, and both components share a common ground and power connection. The provided code for the ESP-01 microcontroller is a template with empty setup and loop functions, indicating that the specific functionality for the IR data processing has not been implemented yet.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IR sensor: A project utilizing Infrared Receiver in a practical application
Arduino UNO Based IR Sensor Interface
This circuit consists of an Arduino UNO microcontroller connected to an infrared (IR) sensor. The Arduino provides 5V power and ground to the IR sensor and receives sensor output signals on its digital pin D2. The purpose of this circuit is likely to detect IR signals, which the Arduino can process in its main loop, although the provided code is currently empty and does not implement any specific functionality.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Remote control systems for TVs, air conditioners, and other appliances
  • Wireless communication between devices
  • IR-based object detection and proximity sensing
  • Home automation systems
  • Robotics and hobbyist projects

Technical Specifications

Below are the key technical details of a typical Infrared Receiver:

Parameter Value
Operating Voltage 2.7V to 5.5V
Operating Current 0.4mA to 1.5mA
Carrier Frequency 30kHz to 56kHz (commonly 38kHz)
Reception Distance Up to 10 meters (depending on IR LED strength)
Reception Angle ±45°
Output Signal Type Digital (active low)
Response Time Typically < 100µs

Pin Configuration and Descriptions

The Infrared Receiver typically has three pins. Below is the pinout and description:

Pin Name Description
1 VCC Power supply pin (connect to 3.3V or 5V)
2 GND Ground pin (connect to circuit ground)
3 OUT Digital output pin (active low, connects to microcontroller)

Usage Instructions

How to Use the Infrared Receiver in a Circuit

  1. Power the Receiver: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground of your circuit.
  2. Connect the Output: Connect the OUT pin to a digital input pin of a microcontroller (e.g., Arduino UNO).
  3. Add a Pull-Up Resistor: If necessary, use a pull-up resistor (e.g., 10kΩ) on the OUT pin to ensure a stable high signal when no IR signal is detected.
  4. Positioning: Ensure the receiver is positioned to face the IR transmitter for optimal signal reception.

Important Considerations and Best Practices

  • Avoid Direct Sunlight: Infrared Receivers can be affected by ambient IR light from sunlight or incandescent bulbs. Use the receiver in a controlled environment or shield it from such interference.
  • Match the Carrier Frequency: Ensure the IR transmitter and receiver operate at the same carrier frequency (e.g., 38kHz).
  • Use Decoupling Capacitors: Place a small capacitor (e.g., 0.1µF) between VCC and GND to filter out power supply noise.
  • Signal Decoding: Use a microcontroller or dedicated IR decoder IC to process the output signal and extract the transmitted data.

Example: Connecting to an Arduino UNO

Below is an example of how to use the Infrared Receiver with an Arduino UNO to decode IR signals from a remote control.

Circuit Diagram

  • Connect the VCC pin of the receiver to the 5V pin on the Arduino.
  • Connect the GND pin of the receiver to the GND pin on the Arduino.
  • Connect the OUT pin of the receiver to digital pin 2 on the Arduino.

Arduino Code

#include <IRremote.h> // Include the IRremote library

const int RECV_PIN = 2; // Define the pin connected to the IR receiver
IRrecv irrecv(RECV_PIN); // Create an IRrecv object
decode_results results;  // Create a variable to store decoded results

void setup() {
  Serial.begin(9600); // Initialize serial communication
  irrecv.enableIRIn(); // Start the IR receiver
  Serial.println("IR Receiver is ready to receive signals.");
}

void loop() {
  if (irrecv.decode(&results)) { // Check if a signal is received
    Serial.print("Received IR code: ");
    Serial.println(results.value, HEX); // Print the received code in HEX format
    irrecv.resume(); // Prepare to receive the next signal
  }
}

Notes on the Code

  • Install the IRremote library in the Arduino IDE before uploading the code.
  • The received IR code will be displayed in the Serial Monitor in hexadecimal format.
  • Use the decoded IR codes to trigger specific actions in your project.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Signal Detected:

    • Ensure the IR transmitter is functional and emitting signals.
    • Verify the receiver is powered correctly and connected to the microcontroller.
    • Check for interference from ambient light sources.
  2. Unstable or Incorrect Output:

    • Add a pull-up resistor to the OUT pin if the signal is unstable.
    • Use a decoupling capacitor to reduce noise on the power supply.
  3. Short Reception Range:

    • Ensure the IR transmitter and receiver are aligned properly.
    • Check the strength of the IR LED in the transmitter.
  4. Library Issues:

    • Ensure the IRremote library is installed and up to date.
    • Verify the correct pin is defined in the code for the receiver.

FAQs

Q: Can I use the Infrared Receiver with a 3.3V microcontroller?
A: Yes, most Infrared Receivers operate within a voltage range of 2.7V to 5.5V, making them compatible with 3.3V systems.

Q: How do I know the carrier frequency of my remote control?
A: Check the remote control's datasheet or use an oscilloscope to measure the frequency of the transmitted signal.

Q: Can the Infrared Receiver detect signals through obstacles?
A: No, IR signals require a clear line of sight between the transmitter and receiver.
