Component Documentation

How to Use PICAXE-40X1: Examples, Pinouts, and Specs

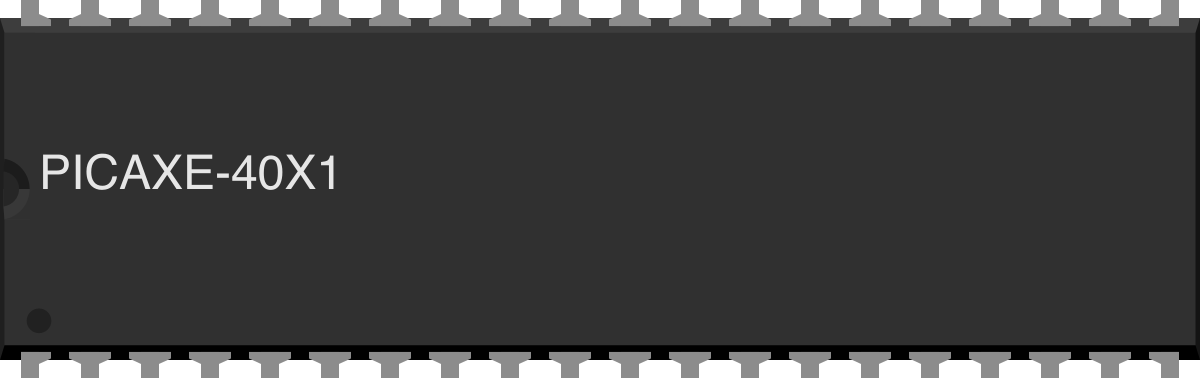

Image of PICAXE-40X1

Design with PICAXE-40X1 in Cirkit Designer

Introduction

The PICAXE-40X1 is a versatile microcontroller designed for educational and hobbyist projects. With its 40-pin configuration, it provides ample input and output options, making it suitable for controlling a wide range of electronic devices. The microcontroller is programmable using a simple BASIC-like language, which makes it beginner-friendly while still offering advanced functionality for experienced users.

Explore Projects Built with PICAXE-40X1

Arduino UNO-Based Coin-Operated Communication System with LCD Display and Servo Control

Image of Veding Machine: A project utilizing PICAXE-40X1 in a practical application

This is a microcontroller-based control system for a vending or arcade application, featuring an Arduino UNO that manages user inputs through arcade buttons, drives servos, displays information on an LCD, and communicates over GSM with the SIM900A module. Power regulation is achieved through a switching power supply and DC-DC buck converters.

Open Project in Cirkit Designer

I2C-Controlled OLED Display with External EEPROM and Interactive Pushbuttons

Image of godmode: A project utilizing PICAXE-40X1 in a practical application

This is a microcontroller-based interactive device featuring a Wemos D1 Mini, an OLED display, external EEPROM, and an I/O expander. It includes user input buttons and status LEDs, with potential MIDI interface capabilities.

Open Project in Cirkit Designer

ATMEGA328 Microcontroller Circuit with Serial Programming Interface

Image of breadboardArduino: A project utilizing PICAXE-40X1 in a practical application

This circuit features an ATMEGA328 microcontroller configured with a crystal oscillator for precise timing, and a pushbutton for reset functionality. An FTDI Programmer is connected for serial communication, allowing for programming and data exchange with the microcontroller.

Open Project in Cirkit Designer

Battery-Powered Line Following Robot with ATmega328P and L298N Motor Driver

Image of Arduino-Controlled Line Following Robot with Dual DC Motors and L298N Driver: A project utilizing PICAXE-40X1 in a practical application

This circuit is a line-following robot controller. It uses a Nano 3.0 ATmega328P microcontroller to read inputs from a line sensor and control two DC motors via an L298N motor driver. Power is supplied by a 9V battery regulated through an XL4015 DC buck converter.

Open Project in Cirkit Designer

Explore Projects Built with PICAXE-40X1

Image of Veding Machine: A project utilizing PICAXE-40X1 in a practical application

Arduino UNO-Based Coin-Operated Communication System with LCD Display and Servo Control

This is a microcontroller-based control system for a vending or arcade application, featuring an Arduino UNO that manages user inputs through arcade buttons, drives servos, displays information on an LCD, and communicates over GSM with the SIM900A module. Power regulation is achieved through a switching power supply and DC-DC buck converters.

Open Project in Cirkit Designer

Image of godmode: A project utilizing PICAXE-40X1 in a practical application

I2C-Controlled OLED Display with External EEPROM and Interactive Pushbuttons

This is a microcontroller-based interactive device featuring a Wemos D1 Mini, an OLED display, external EEPROM, and an I/O expander. It includes user input buttons and status LEDs, with potential MIDI interface capabilities.

Open Project in Cirkit Designer

Image of breadboardArduino: A project utilizing PICAXE-40X1 in a practical application

ATMEGA328 Microcontroller Circuit with Serial Programming Interface

This circuit features an ATMEGA328 microcontroller configured with a crystal oscillator for precise timing, and a pushbutton for reset functionality. An FTDI Programmer is connected for serial communication, allowing for programming and data exchange with the microcontroller.

Open Project in Cirkit Designer

Image of Arduino-Controlled Line Following Robot with Dual DC Motors and L298N Driver: A project utilizing PICAXE-40X1 in a practical application

Battery-Powered Line Following Robot with ATmega328P and L298N Motor Driver

This circuit is a line-following robot controller. It uses a Nano 3.0 ATmega328P microcontroller to read inputs from a line sensor and control two DC motors via an L298N motor driver. Power is supplied by a 9V battery regulated through an XL4015 DC buck converter.

Open Project in Cirkit Designer

Common Applications and Use Cases

Robotics and automation projects
Sensor data acquisition and processing
Controlling actuators such as motors, servos, and relays
Educational tools for learning programming and electronics
Home automation systems

Technical Specifications

The PICAXE-40X1 offers a robust set of features that make it ideal for a variety of applications. Below are its key technical specifications:

Specification	Details
Operating Voltage	4.5V to 5.5V
Clock Speed	4 MHz (default) or up to 16 MHz with external resonator
Number of I/O Pins	40 pins (28 digital I/O, 13 analog inputs, 1 serial input/output)
Programming Language	BASIC-like language
Memory	256 bytes of EEPROM, 2048 bytes of program memory
Communication Protocols	Serial (RS-232), I2C, SPI
ADC Resolution	10-bit resolution for analog inputs
Power Consumption	Low power consumption in sleep mode (<1 µA)
Package Type	DIP-40 (Dual Inline Package)

Pin Configuration and Descriptions

The PICAXE-40X1 has 40 pins, each with specific functions. Below is a summary of the pin configuration:

Pin Number	Pin Name	Function
1	VSS	Ground (0V)
11, 31	VDD	Positive supply voltage (4.5V to 5.5V)
2-9, 12-19	Port B	Digital I/O pins (can also be used for ADC inputs)
21-28	Port C	Digital I/O pins
33-40	Port D	Digital I/O pins
10, 20, 30	Reserved	Reserved for internal use or external clock
32	Serial In	Serial programming input
34	Serial Out	Serial programming output

Usage Instructions

How to Use the PICAXE-40X1 in a Circuit

Power Supply: Connect the VDD pin to a 5V power source and the VSS pin to ground.
Programming: Use the PICAXE programming cable to connect the Serial In and Serial Out pins to your computer. The PICAXE Editor software is required to write and upload programs.
I/O Connections: Connect sensors, actuators, or other peripherals to the I/O pins. Ensure that the voltage and current ratings of the connected devices are within the microcontroller's limits.
External Clock (Optional): For higher clock speeds, connect an external resonator to the appropriate pins.

Important Considerations and Best Practices

Use decoupling capacitors (e.g., 0.1 µF) near the VDD and VSS pins to stabilize the power supply.
Avoid exceeding the maximum current rating of the I/O pins (20 mA per pin, 100 mA total).
Use pull-up or pull-down resistors for unused input pins to prevent floating states.
When using analog inputs, ensure the input voltage does not exceed the operating voltage range.

Example Code for Arduino-like Functionality

Below is an example program to blink an LED connected to pin B.0:

' Blink an LED connected to pin B.0
' The LED will turn on for 1 second and off for 1 second in a loop.

main:                     ' Start of the main program loop
  high B.0                ' Set pin B.0 to HIGH (turn on LED)
  pause 1000              ' Wait for 1000 milliseconds (1 second)
  low B.0                 ' Set pin B.0 to LOW (turn off LED)
  pause 1000              ' Wait for 1000 milliseconds (1 second)
  goto main               ' Repeat the loop

Troubleshooting and FAQs

Common Issues and Solutions

The microcontroller does not respond to programming commands.
- Ensure the programming cable is securely connected to the Serial In and Serial Out pins.
- Verify that the correct COM port is selected in the PICAXE Editor software.
- Check the power supply to ensure the microcontroller is powered on.
The connected devices are not functioning as expected.
- Double-check the wiring and ensure that the devices are connected to the correct pins.
- Verify that the program logic matches the intended functionality.
- Ensure that the voltage and current requirements of the devices are within the microcontroller's limits.
The microcontroller overheats or behaves erratically.
- Check for short circuits or incorrect wiring.
- Ensure that the power supply voltage does not exceed 5.5V.
- Use a heat sink or cooling mechanism if necessary.

FAQs

Q: Can the PICAXE-40X1 be powered by batteries?
A: Yes, it can be powered by batteries as long as the voltage is within the 4.5V to 5.5V range.

Q: Is it possible to use the PICAXE-40X1 with an external clock?
A: Yes, you can connect an external resonator to increase the clock speed up to 16 MHz.

Q: What software is required to program the PICAXE-40X1?
A: The PICAXE Editor software, which is available for free on the official PICAXE website, is used to write and upload programs.

Q: Can I use the PICAXE-40X1 with I2C devices?
A: Yes, the PICAXE-40X1 supports I2C communication for interfacing with compatible devices.
