How to Use ultrasonic sensor: Examples, Pinouts, and Specs

An ultrasonic sensor is a device that uses ultrasonic waves to measure distance or detect objects. It emits a sound wave at a frequency higher than the audible range and measures the time it takes for the echo to return, allowing it to calculate the distance to the object.

Ultrasonic sensors are widely used in various applications, including:

• Obstacle detection in robotics
• Distance measurement in industrial automation
• Parking assistance systems in vehicles
• Liquid level sensing in tanks
• Proximity detection in security systems

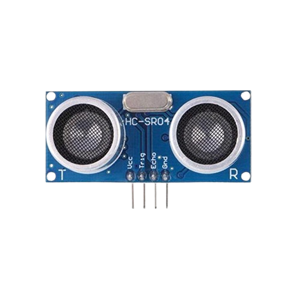

Below are the key technical details for a typical ultrasonic sensor, such as the HC-SR04:

The ultrasonic sensor typically has four pins, as described below:

1. Power the Sensor: Connect the VCC pin to a 5V power source and the GND pin to ground.
2. Trigger the Sensor: Send a 10 µs HIGH pulse to the Trig pin to initiate a measurement.
3. Read the Echo: Measure the duration of the HIGH pulse on the Echo pin. This duration is proportional to the distance of the object.
4. Calculate Distance: Use the formula below to calculate the distance: [ \text{Distance (cm)} = \frac{\text{Pulse Duration (µs)}}{58} ] Alternatively, for distance in inches: [ \text{Distance (in)} = \frac{\text{Pulse Duration (µs)}}{148} ]

• Ensure the sensor is mounted securely and aligned properly for accurate measurements.
• Avoid placing the sensor near ultrasonic noise sources, as this may interfere with readings.
• Use a capacitor (e.g., 10 µF) across the VCC and GND pins to stabilize the power supply.
• The sensor may not work reliably with soft or sound-absorbing materials, as they may not reflect ultrasonic waves effectively.

Below is an example of how to use the HC-SR04 ultrasonic sensor with an Arduino UNO:

// Define pins for the ultrasonic sensor
const int trigPin = 9; // Trigger pin connected to digital pin 9
const int echoPin = 10; // Echo pin connected to digital pin 10

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);

  // Set pin modes
  pinMode(trigPin, OUTPUT); // Trig pin as output
  pinMode(echoPin, INPUT);  // Echo pin as input
}

void loop() {
  // Send a 10 µs pulse to the Trig pin
  digitalWrite(trigPin, LOW);
  delayMicroseconds(2);
  digitalWrite(trigPin, HIGH);
  delayMicroseconds(10);
  digitalWrite(trigPin, LOW);

  // Measure the duration of the pulse on the Echo pin
  long duration = pulseIn(echoPin, HIGH);

  // Calculate the distance in centimeters
  float distance = duration * 0.034 / 2; // Speed of sound is ~0.034 cm/µs

  // Print the distance to the Serial Monitor
  Serial.print("Distance: ");
  Serial.print(distance);
  Serial.println(" cm");

  // Wait before the next measurement
  delay(500);
}

1. No Output or Incorrect Readings

   • Cause: Loose or incorrect wiring.
   • Solution: Double-check all connections, ensuring VCC, GND, Trig, and Echo are connected properly.

2. Unstable or Fluctuating Measurements

   • Cause: Electrical noise or unstable power supply.
   • Solution: Add a decoupling capacitor (e.g., 10 µF) across the VCC and GND pins.

3. Sensor Not Detecting Objects

   • Cause: Object is out of range or made of sound-absorbing material.
   • Solution: Ensure the object is within the sensor's range (2 cm to 400 cm) and is reflective.

4. Echo Pin Always HIGH or LOW

   • Cause: Faulty sensor or incorrect trigger signal.
   • Solution: Verify the Trig pin is receiving a 10 µs pulse. Replace the sensor if necessary.

Q: Can the ultrasonic sensor measure distance through glass?
A: Ultrasonic waves may not pass through glass effectively, as they are often reflected or absorbed. For such applications, consider alternative sensors like infrared.

Q: What is the maximum angle of detection for the sensor?
A: The HC-SR04 has a detection angle of approximately 15 degrees. Ensure objects are within this cone for accurate measurements.

Q: Can I use the sensor with a 3.3V microcontroller?
A: While the sensor operates at 5V, you can use a level shifter to safely interface it with a 3.3V microcontroller.
