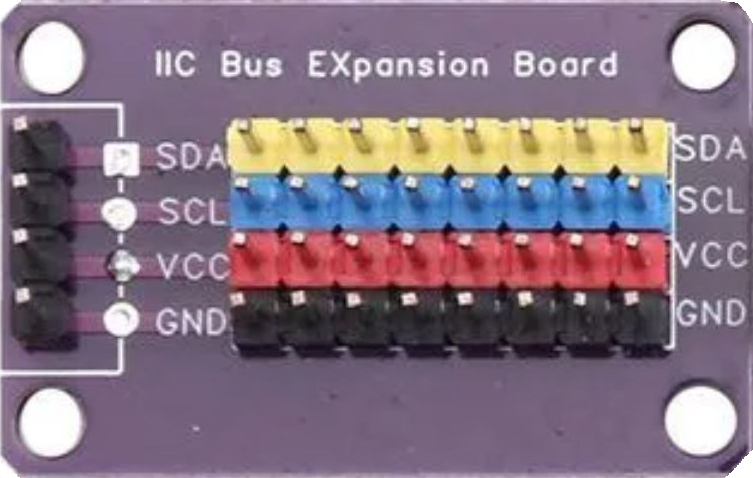

How to Use I2C HUB: Examples, Pinouts, and Specs

An I2C HUB is a device designed to expand the connectivity of an I2C (Inter-Integrated Circuit) bus, allowing multiple I2C devices to communicate with a single master controller. It simplifies the process of connecting multiple peripherals by managing address conflicts, improving signal integrity, and ensuring reliable communication.

I2C HUBs are commonly used in applications where multiple sensors, displays, or other I2C-enabled devices need to operate simultaneously on the same bus. They are particularly useful in embedded systems, IoT devices, robotics, and industrial automation.

Below are the general technical specifications for an I2C HUB. Note that specific values may vary depending on the manufacturer and model.

• Operating Voltage: 3.3V to 5V
• I2C Speed Support: Standard Mode (100 kHz), Fast Mode (400 kHz), and Fast Mode Plus (1 MHz)
• Number of Ports: Typically 4 to 8 downstream I2C ports
• Signal Isolation: Optional, depending on the model
• Address Management: Supports address translation or multiplexing
• Operating Temperature: -40°C to +85°C (typical)

The pin configuration of an I2C HUB may vary, but a typical 6-pin configuration is shown below:

1. Power the HUB: Connect the VCC and GND pins of the I2C HUB to the power supply of your system (3.3V or 5V, as required).
2. Connect the Master Controller: Attach the SDA and SCL lines of the master controller (e.g., Arduino, Raspberry Pi) to the corresponding SDA and SCL pins on the HUB.
3. Connect I2C Devices: Attach the SDA and SCL lines of each I2C device to the downstream ports of the HUB.
4. Address Configuration: If the HUB supports address translation or multiplexing, configure the addresses of the connected devices to avoid conflicts.
5. Pull-Up Resistors: Ensure appropriate pull-up resistors are present on the SDA and SCL lines. Some HUBs include built-in pull-ups; if not, add external resistors (typically 4.7kΩ to 10kΩ).

• Signal Integrity: For long I2C bus lines, consider using an I2C HUB with signal buffering or isolation to maintain signal quality.
• Address Conflicts: Use the HUB's address translation feature (if available) to resolve conflicts between devices with the same I2C address.
• I2C Speed: Ensure all connected devices support the same I2C speed (e.g., 100 kHz or 400 kHz).
• Power Supply: Verify that the power supply voltage matches the requirements of the HUB and connected devices.

Below is an example of how to use an I2C HUB with an Arduino UNO to connect multiple I2C devices.

1. Connect the HUB's VCC and GND to the Arduino's 5V and GND pins.
2. Connect the HUB's SDA and SCL to the Arduino's A4 (SDA) and A5 (SCL) pins.
3. Attach multiple I2C devices to the HUB's downstream ports.

#include <Wire.h>

// Define I2C addresses for connected devices
#define DEVICE_1_ADDR 0x40  // Example address for device 1
#define DEVICE_2_ADDR 0x41  // Example address for device 2

void setup() {
  Wire.begin();  // Initialize I2C communication
  Serial.begin(9600);  // Start serial communication for debugging

  Serial.println("I2C HUB Example: Initializing devices...");
}

void loop() {
  // Communicate with Device 1
  Wire.beginTransmission(DEVICE_1_ADDR);
  Wire.write(0x01);  // Example command to device 1
  Wire.endTransmission();
  delay(100);

  // Communicate with Device 2
  Wire.beginTransmission(DEVICE_2_ADDR);
  Wire.write(0x02);  // Example command to device 2
  Wire.endTransmission();
  delay(100);

  Serial.println("Commands sent to devices via I2C HUB.");
  delay(1000);  // Wait 1 second before repeating
}

1. Devices Not Responding:

   • Cause: Incorrect wiring or missing pull-up resistors.
   • Solution: Double-check all connections and ensure pull-up resistors are present on the SDA and SCL lines.

2. Address Conflicts:

   • Cause: Multiple devices with the same I2C address.
   • Solution: Use the HUB's address translation feature or modify the address of one of the devices (if possible).

3. Signal Degradation:

   • Cause: Long I2C bus lines or high capacitance.
   • Solution: Use an I2C HUB with signal buffering or reduce the length of the bus lines.

4. HUB Not Detected:

   • Cause: Incorrect power supply voltage or faulty HUB.
   • Solution: Verify the power supply voltage and test the HUB with a different master controller.

• Q: Can I connect devices with different voltage levels to the same HUB?
  A: Only if the HUB supports voltage level translation. Otherwise, use level shifters.

• Q: How many devices can I connect to an I2C HUB?
  A: This depends on the number of downstream ports on the HUB. Common models support 4 to 8 devices.

• Q: Do I need external pull-up resistors if the HUB has built-in ones?
  A: No, if the HUB includes built-in pull-ups, external resistors are not required.

• Q: Can I use an I2C HUB with a Raspberry Pi?
  A: Yes, the HUB can be used with any I2C-compatible master controller, including Raspberry Pi.

This concludes the documentation for the I2C HUB.
