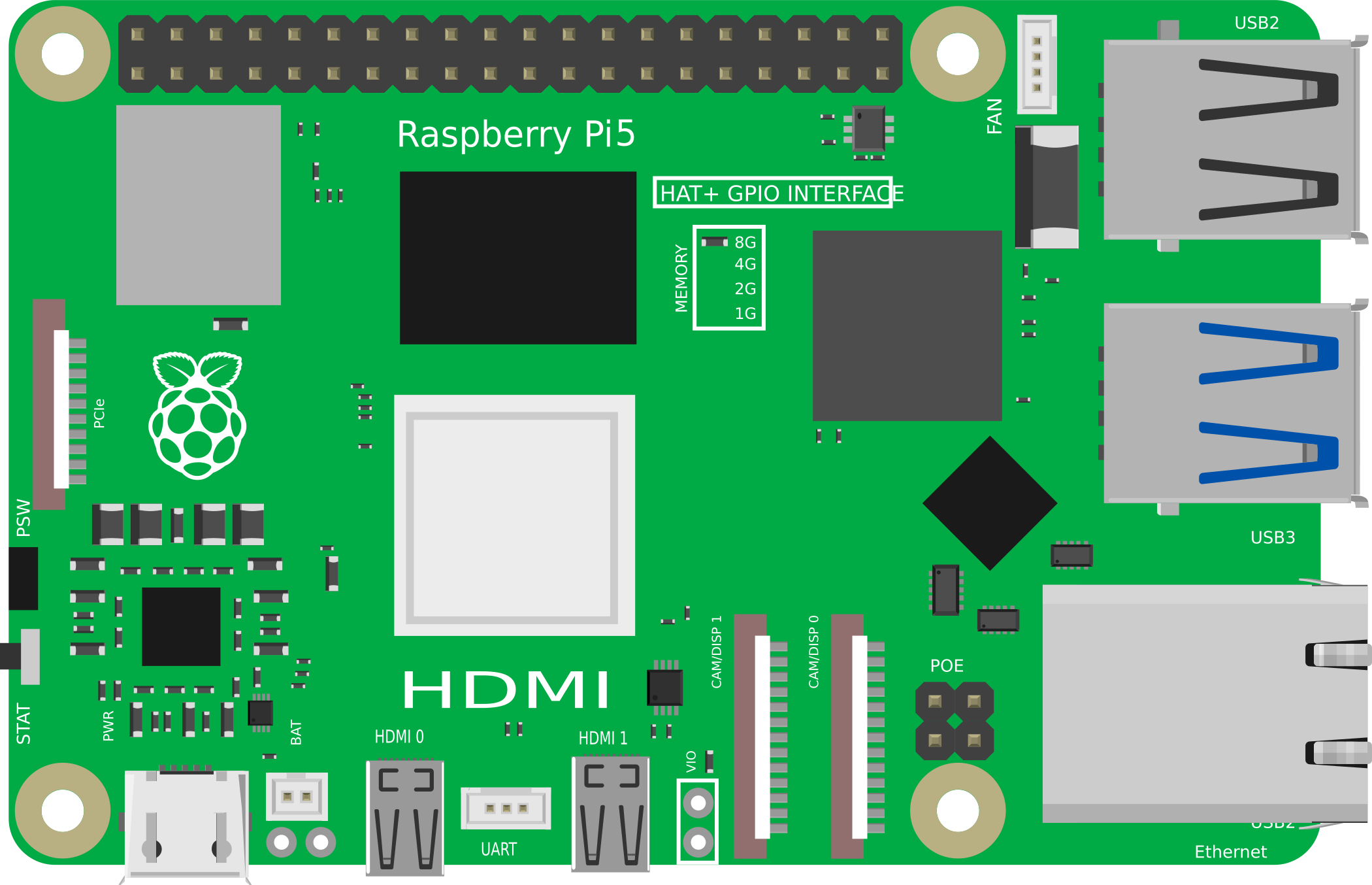

The Raspberry Pi 5, manufactured by Raspi (Part ID: 5), is a compact and affordable single-board computer (SBC) designed for a wide range of applications. It is the latest iteration in the Raspberry Pi series, offering improved processing power, enhanced graphics capabilities, and versatile connectivity options. The Raspberry Pi 5 is ideal for education, prototyping, hobbyist projects, and advanced IoT applications. Its small form factor and robust performance make it a popular choice for both beginners and experienced developers.

• Education: Teaching programming, electronics, and computer science concepts.
• Prototyping: Developing and testing hardware and software solutions.
• IoT Projects: Building smart home devices, sensors, and automation systems.
• Media Centers: Setting up home theater PCs with media streaming capabilities.
• Retro Gaming: Emulating classic gaming consoles.
• Robotics: Powering robots and autonomous systems.
• Edge Computing: Running lightweight AI and machine learning models.

The Raspberry Pi 5 features a 40-pin GPIO header, which is backward-compatible with previous Raspberry Pi models. Below is the pinout configuration:

For the full GPIO pinout, refer to the official Raspberry Pi 5 documentation.

1. Powering the Raspberry Pi 5:

   • Use a USB-C power adapter capable of supplying 5V/5A.
   • Ensure the power supply is stable to avoid performance issues.

2. Connecting Peripherals:

   • Attach a monitor via the micro-HDMI ports.
   • Connect a keyboard and mouse to the USB ports.
   • Insert a microSD card with a compatible operating system (e.g., Raspberry Pi OS).

3. Using GPIO Pins:

   • Use the 40-pin GPIO header for interfacing with sensors, actuators, and other devices.
   • Be cautious about voltage levels; GPIO pins operate at 3.3V logic.

4. Networking:

   • Connect to the internet via Ethernet or Wi-Fi.
   • Use Bluetooth for wireless peripherals or data transfer.

5. Storage Expansion:

   • Use the PCIe Gen 3 x1 interface for high-speed NVMe SSDs.
   • Alternatively, use USB 3.0 ports for external storage devices.

• Cooling: The Raspberry Pi 5 can generate significant heat under load. Use a heatsink or active cooling (fan) for optimal performance.
• Static Protection: Handle the board with care to avoid static discharge, which can damage components.
• Software Updates: Regularly update the operating system and firmware to ensure compatibility and security.
• Power Supply: Avoid using low-quality power adapters, as they may cause instability.

The Raspberry Pi 5 can control an LED using its GPIO pins. Below is an example Python script using the RPi.GPIO library:

import RPi.GPIO as GPIO import time

GPIO.setmode(GPIO.BCM)

LED_PIN = 18

GPIO.setup(LED_PIN, GPIO.OUT)

try: while True: GPIO.output(LED_PIN, GPIO.HIGH) # Turn the LED on time.sleep(1) # Wait for 1 second GPIO.output(LED_PIN, GPIO.LOW) # Turn the LED off time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings on exit GPIO.cleanup()

---

1. The Raspberry Pi 5 does not boot:

   • Ensure the microSD card is properly inserted and contains a valid operating system.
   • Verify the power supply is providing sufficient voltage and current.

2. Overheating:

   • Use a heatsink or fan to cool the board.
   • Avoid placing the Raspberry Pi 5 in an enclosed space without ventilation.

3. No display output:

   • Check the micro-HDMI cable and ensure it is securely connected.
   • Verify the monitor is set to the correct input source.

4. GPIO pins not working:

   • Ensure the correct pin numbering mode (BCM or BOARD) is used in your code.
   • Check for short circuits or incorrect wiring.

• Can I use older Raspberry Pi accessories with the Raspberry Pi 5? Yes, most accessories like cases, power supplies, and HATs are compatible, but verify specifications for compatibility.

• What operating systems are supported? The Raspberry Pi 5 supports Raspberry Pi OS, Ubuntu, and other Linux distributions.

• Does the Raspberry Pi 5 support dual displays? Yes, it supports dual 4K displays via the two micro-HDMI ports.

• Can I power the Raspberry Pi 5 via GPIO pins? Yes, but it is not recommended unless you are experienced, as incorrect wiring can damage the board.

This concludes the documentation for the Raspberry Pi 5. For further details, refer to the official Raspi website or community forums.
