Introduction

The 2N2222 is a widely used NPN bipolar junction transistor (BJT) known for its versatility in switching and amplification applications. Manufactured by Transistor, this component is designed to handle moderate current and voltage levels, making it suitable for a wide range of electronic circuits. Its robust design and reliability have made it a staple in both hobbyist and professional projects.

Explore Projects Built with 2N2222

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered Tesla Coil with 2N2222 Transistor Control
Image of tesla coil: A project utilizing 2N2222 in a practical application
This circuit is a basic Tesla coil driver powered by a Li-ion battery. It uses a 2n2222 transistor to switch the primary coil of the Tesla coil, with a resistor and switch controlling the base of the transistor. The circuit generates high voltage in the secondary coil of the Tesla coil.
Cirkit Designer LogoOpen Project in Cirkit Designer
Transistor-Based Signal Modulation Circuit with AC/DC Power Integration
Image of PPPPP: A project utilizing 2N2222 in a practical application
This circuit appears to be a transistor-based switching or amplification system powered by a 12v battery, with an AC supply possibly for signal input or additional power. It includes filtering through ceramic capacitors and uses resistors for biasing the transistors. The presence of both PNP and NPN transistors suggests a push-pull configuration or a form of signal modulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
NPN Transistor-Based Voltage Measurement Circuit with Dual Power Supplies
Image of lab9: A project utilizing 2N2222 in a practical application
This circuit is a simple NPN transistor switch configuration powered by two power supplies. It includes resistors to limit current and multimeters to measure voltage and current at various points in the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
NPN Transistor-Based Signal Amplifier with Power Supply and Capacitors
Image of lab10: A project utilizing 2N2222 in a practical application
This circuit appears to be a basic transistor amplifier with a power supply, resistors, and capacitors. The NPN transistor is configured with various resistors and capacitors to control the biasing and signal amplification, while the AC supply and electrolytic capacitors are used for coupling and filtering purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with 2N2222

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of tesla coil: A project utilizing 2N2222 in a practical application
Battery-Powered Tesla Coil with 2N2222 Transistor Control
This circuit is a basic Tesla coil driver powered by a Li-ion battery. It uses a 2n2222 transistor to switch the primary coil of the Tesla coil, with a resistor and switch controlling the base of the transistor. The circuit generates high voltage in the secondary coil of the Tesla coil.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PPPPP: A project utilizing 2N2222 in a practical application
Transistor-Based Signal Modulation Circuit with AC/DC Power Integration
This circuit appears to be a transistor-based switching or amplification system powered by a 12v battery, with an AC supply possibly for signal input or additional power. It includes filtering through ceramic capacitors and uses resistors for biasing the transistors. The presence of both PNP and NPN transistors suggests a push-pull configuration or a form of signal modulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lab9: A project utilizing 2N2222 in a practical application
NPN Transistor-Based Voltage Measurement Circuit with Dual Power Supplies
This circuit is a simple NPN transistor switch configuration powered by two power supplies. It includes resistors to limit current and multimeters to measure voltage and current at various points in the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lab10: A project utilizing 2N2222 in a practical application
NPN Transistor-Based Signal Amplifier with Power Supply and Capacitors
This circuit appears to be a basic transistor amplifier with a power supply, resistors, and capacitors. The NPN transistor is configured with various resistors and capacitors to control the biasing and signal amplification, while the AC supply and electrolytic capacitors are used for coupling and filtering purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Switching Applications: Used to control relays, LEDs, and other low-power devices.
  • Signal Amplification: Amplifies weak signals in audio, RF, and other circuits.
  • Oscillators: Functions as a key component in oscillator circuits.
  • Pulse Width Modulation (PWM): Commonly used in motor control and dimming applications.

Technical Specifications

The 2N2222 transistor is designed to operate efficiently in various electronic circuits. Below are its key technical details:

General Specifications

Parameter Value
Manufacturer Part ID NPN bipolar junction transistor
Type NPN BJT
Maximum Collector Current (Ic) 800 mA
Maximum Collector-Emitter Voltage (Vce) 40 V
Maximum Collector-Base Voltage (Vcb) 75 V
Maximum Emitter-Base Voltage (Veb) 6 V
Power Dissipation (Ptot) 500 mW
DC Current Gain (hFE) 100 to 300
Transition Frequency (ft) 250 MHz
Package Type TO-18, TO-92

Pin Configuration

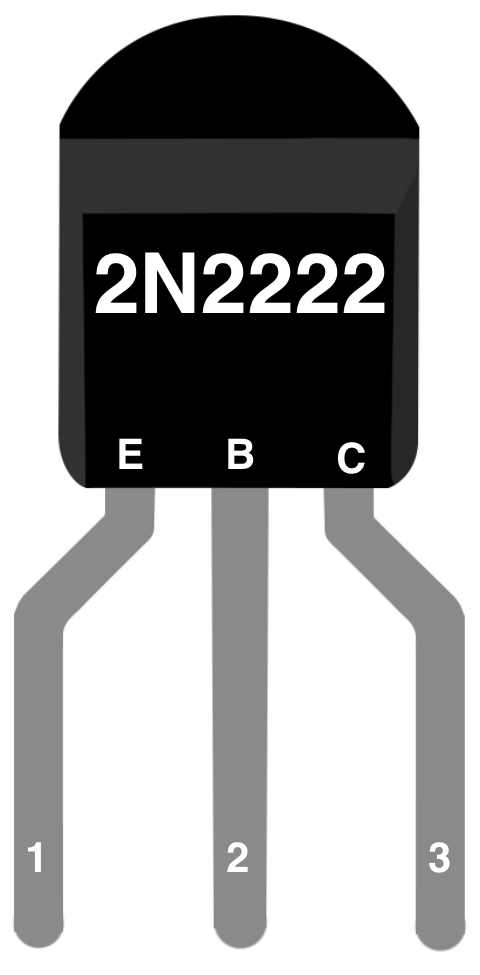

The 2N2222 is typically available in a TO-92 package. Below is the pinout configuration:

Pin Number Pin Name Description
1 Emitter Current flows out of this terminal.
2 Base Controls the transistor's operation.
3 Collector Current flows into this terminal.

Usage Instructions

The 2N2222 transistor can be used in a variety of circuits. Below are guidelines for its proper usage:

How to Use the 2N2222 in a Circuit

  1. Determine the Configuration: Decide whether the transistor will be used in a common-emitter, common-base, or common-collector configuration.
  2. Base Resistor Selection: Use a resistor to limit the base current. The value can be calculated using Ohm's Law: [ R_b = \frac{V_{in} - V_{be}}{I_b} ] where ( V_{be} ) is typically 0.7 V for the 2N2222.
  3. Connect the Load: Place the load (e.g., LED, motor) in series with the collector or emitter, depending on the configuration.
  4. Power Supply: Ensure the supply voltage does not exceed the maximum ratings of the transistor.

Example: Controlling an LED with Arduino UNO

Below is an example of using the 2N2222 to control an LED with an Arduino UNO:

Circuit Diagram

  • Collector: Connect to one terminal of the LED (with a current-limiting resistor in series).
  • Emitter: Connect to ground.
  • Base: Connect to an Arduino digital pin through a 1 kΩ resistor.

Arduino Code

// Define the pin connected to the 2N2222 base
const int transistorBasePin = 9;

void setup() {
  pinMode(transistorBasePin, OUTPUT); // Set the pin as an output
}

void loop() {
  digitalWrite(transistorBasePin, HIGH); // Turn on the LED
  delay(1000); // Wait for 1 second
  digitalWrite(transistorBasePin, LOW);  // Turn off the LED
  delay(1000); // Wait for 1 second
}

Important Considerations and Best Practices

  • Heat Dissipation: Ensure adequate heat dissipation if the transistor operates near its maximum power rating.
  • Base Current: Avoid exceeding the maximum base current to prevent damage.
  • Voltage Ratings: Do not exceed the maximum voltage ratings for ( V_{ce} ), ( V_{cb} ), or ( V_{eb} ).

Troubleshooting and FAQs

Common Issues and Solutions

  1. Transistor Not Switching Properly:

    • Cause: Insufficient base current.
    • Solution: Check the base resistor value and ensure the base current is sufficient to saturate the transistor.
  2. Excessive Heat:

    • Cause: Operating near or beyond the maximum power dissipation.
    • Solution: Use a heat sink or reduce the load current.
  3. No Output Signal:

    • Cause: Incorrect pin connections.
    • Solution: Verify the pinout and ensure proper connections.
  4. Damaged Transistor:

    • Cause: Exceeding voltage or current ratings.
    • Solution: Replace the transistor and ensure the circuit operates within specified limits.

FAQs

  • Q: Can the 2N2222 handle high-power applications?
    A: No, the 2N2222 is designed for moderate power applications. For high-power needs, consider using a power transistor like the TIP120.

  • Q: What is the maximum frequency the 2N2222 can handle?
    A: The 2N2222 has a transition frequency (( f_t )) of 250 MHz, making it suitable for high-frequency applications.

  • Q: Can I use the 2N2222 without a base resistor?
    A: No, a base resistor is necessary to limit the base current and prevent damage to the transistor.

By following this documentation, users can effectively integrate the 2N2222 transistor into their electronic projects.
