How to Use Big MOSFET Slide Switch with Reverse Voltage Protection, MP: Examples, Pinouts, and Specs

The Big MOSFET Slide Switch with Reverse Voltage Protection, MP (Manufacturer Part ID: 2814) by Pololu is a robust electronic component designed to control high-current loads with minimal power loss. This switch integrates a MOSFET for efficient switching and includes reverse voltage protection to safeguard your circuits from accidental reverse polarity connections.

• Robotics: Powering motors and actuators.
• Automotive: Controlling high-current devices like lights and pumps.
• DIY Electronics: General-purpose high-current switching.
• Power Management: Efficiently switching power in battery-operated devices.

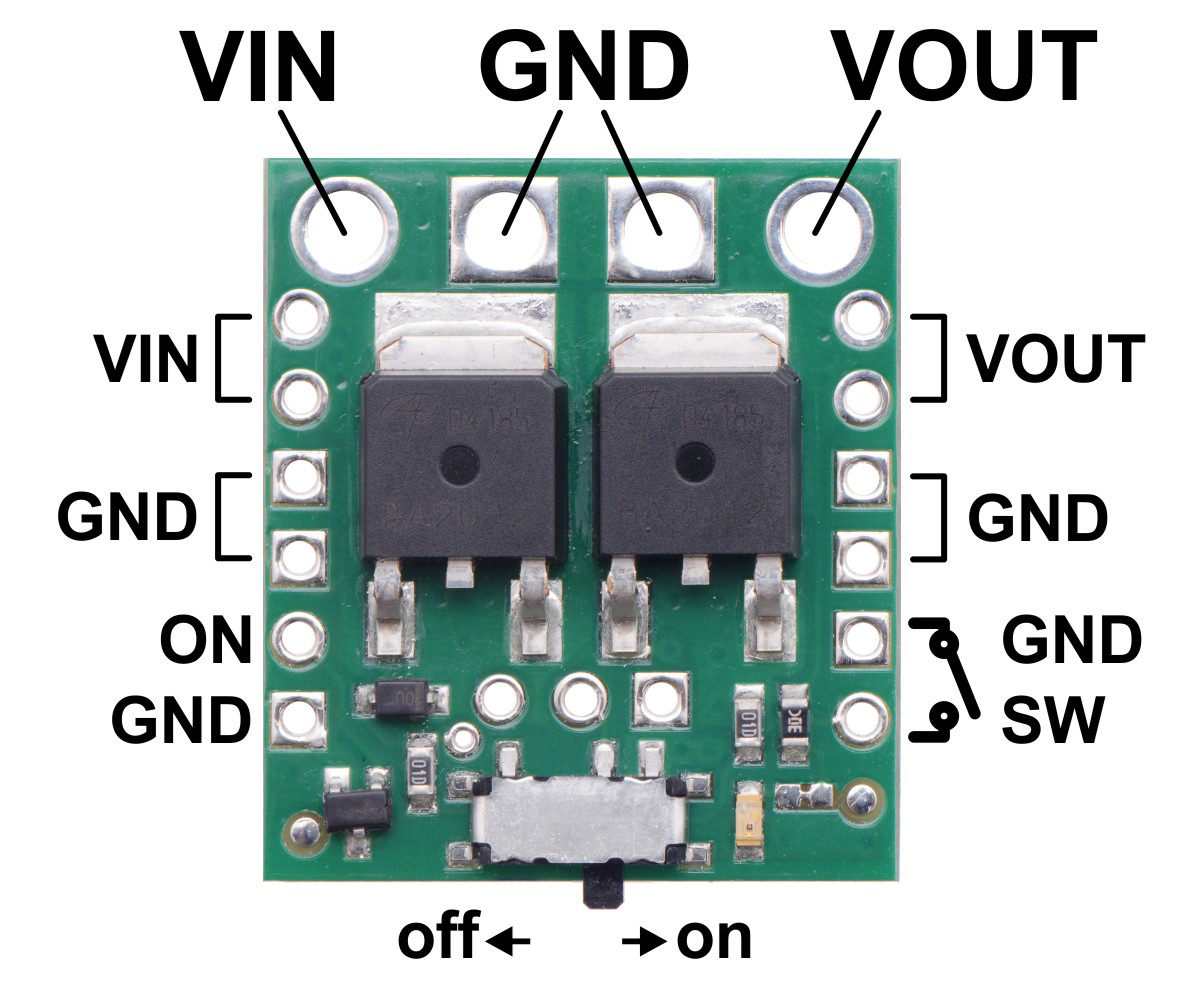

1. Power Connections:

   • Connect the VIN pin to your power source (4.5V to 40V).
   • Connect the GND pin to the ground of your power source.

2. Load Connection:

   • Connect the VOUT pin to the positive terminal of your load.
   • Ensure the ground of your load is connected to the common ground.

3. Control Signal:

   • Apply a control voltage (2.5V to 20V) to the CTRL pin to turn the switch on.
   • When the control voltage is removed or falls below 2.5V, the switch turns off.

• Heat Dissipation: Ensure adequate cooling for high-current applications to prevent overheating.
• Reverse Voltage Protection: The built-in protection will safeguard your circuit, but always double-check connections.
• Control Signal: Use a stable control voltage to avoid unintended switching.

/*
 * Example code to control the Big MOSFET Slide Switch with Reverse Voltage
 * Protection, MP using an Arduino UNO.
 */

const int controlPin = 7; // Pin connected to the CTRL pin of the switch

void setup() {
  pinMode(controlPin, OUTPUT); // Set the control pin as an output
}

void loop() {
  digitalWrite(controlPin, HIGH); // Turn on the switch
  delay(5000); // Keep the switch on for 5 seconds
  digitalWrite(controlPin, LOW); // Turn off the switch
  delay(5000); // Keep the switch off for 5 seconds
}

1. Switch Not Turning On:

   • Solution: Check the control voltage. Ensure it is within the 2.5V to 20V range.
   • Solution: Verify all connections, especially the ground connections.

2. Overheating:

   • Solution: Ensure the load current does not exceed 16A.
   • Solution: Provide adequate cooling or heat sinking.

3. No Output Voltage:

   • Solution: Check the input voltage at the VIN pin.
   • Solution: Ensure the control signal is properly applied to the CTRL pin.

• Q: Can I use this switch with a 3.3V control signal?

  • A: Yes, the switch can be controlled with any voltage between 2.5V and 20V.

• Q: What happens if I connect the power supply in reverse?

  • A: The built-in reverse voltage protection will prevent damage to the switch and your circuit.

• Q: Can this switch handle inductive loads like motors?

  • A: Yes, but consider using a flyback diode to protect against voltage spikes.

This documentation provides a comprehensive guide to using the Big MOSFET Slide Switch with Reverse Voltage Protection, MP. Whether you are a beginner or an experienced user, following these guidelines will help you effectively integrate this component into your projects.
