How to Use Voltage Regulator LM7806: Examples, Pinouts, and Specs

The LM7806 is a linear voltage regulator that provides a fixed output voltage of 6V. It is designed to supply up to 1A of current, making it ideal for powering low-power electronic devices. The LM7806 features built-in thermal overload protection and short-circuit protection, ensuring safe and reliable operation. With its wide input voltage range, it is a versatile component for various applications.

• Powering microcontrollers and sensors in embedded systems
• Voltage regulation for battery-powered devices
• Providing a stable 6V supply for analog and digital circuits
• Used in DIY electronics projects and prototyping

The LM7806 is a robust and reliable voltage regulator with the following key specifications:

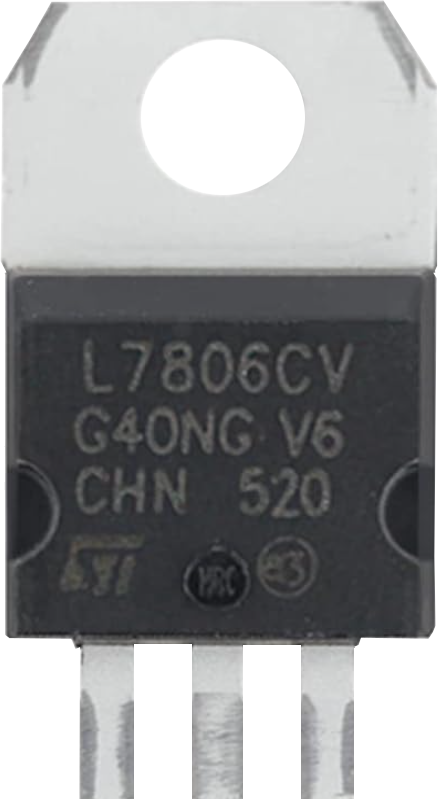

The LM7806 typically comes in a TO-220 package with three pins. The pinout is as follows:

1. Input Voltage: Connect the input pin (IN) to a DC voltage source. Ensure the input voltage is at least 8V and does not exceed 25V.
2. Output Voltage: Connect the output pin (OUT) to the load that requires a 6V regulated supply.
3. Ground Connection: Connect the ground pin (GND) to the common ground of the circuit.
4. Capacitors: Add decoupling capacitors to improve stability and reduce noise:
   • Place a 0.33µF capacitor between the input pin and ground.
   • Place a 0.1µF capacitor between the output pin and ground.

Below is a simple circuit diagram for using the LM7806:

   Input Voltage (8V-25V)
          |
          |
         [C1]  0.33µF
          |
          |-----> IN (Pin 1)
          |       LM7806
         [C2]  0.1µF
          |-----> OUT (Pin 3) -----> Regulated 6V Output
          |
         GND (Pin 2)

• Heat Dissipation: The LM7806 can generate heat during operation, especially at high input voltages or currents. Use a heatsink with the TO-220 package to prevent overheating.
• Input Voltage: Ensure the input voltage is at least 2V higher than the output voltage (minimum 8V) for proper regulation.
• Load Current: Do not exceed the maximum output current of 1A to avoid damage.
• Bypass Capacitors: Always use the recommended capacitors to ensure stable operation and minimize noise.

The LM7806 can be used to power an Arduino UNO by providing a stable 6V supply. Below is an example of how to connect the LM7806 to an Arduino UNO:

/*
 * Example: Powering Arduino UNO with LM7806
 * This setup uses the LM7806 to provide a stable 6V supply to the Arduino UNO.
 */

void setup() {
  // No specific code is required for powering the Arduino UNO.
  // Ensure the LM7806 is properly connected to the Arduino's VIN pin.
}

void loop() {
  // Your Arduino code goes here.
}

Connection Notes:

• Connect the LM7806 output (OUT) to the Arduino UNO's VIN pin.
• Connect the LM7806 ground (GND) to the Arduino UNO's GND pin.
• Ensure the input voltage to the LM7806 is within the specified range (8V-25V).

1. No Output Voltage:

   • Check the input voltage. Ensure it is at least 8V.
   • Verify all connections, especially the ground connection.
   • Inspect the capacitors for proper placement and values.

2. Overheating:

   • Use a heatsink to dissipate heat effectively.
   • Reduce the input voltage if possible to minimize power dissipation.

3. Output Voltage is Unstable:

   • Ensure the recommended capacitors (0.33µF and 0.1µF) are connected correctly.
   • Check for noise or interference in the input voltage source.

4. Short Circuit Protection Triggered:

   • Disconnect the load and check for short circuits in the output wiring.
   • Ensure the load does not exceed the maximum current rating of 1A.

Q: Can I use the LM7806 with an input voltage below 8V?
A: No, the LM7806 requires a minimum input voltage of 8V to regulate the output to 6V.

Q: What happens if the input voltage exceeds 25V?
A: Exceeding the maximum input voltage can damage the LM7806. Use a voltage source within the specified range.

Q: Can I use the LM7806 without capacitors?
A: While the LM7806 may work without capacitors, it is highly recommended to use the specified capacitors to ensure stable operation and reduce noise.

Q: Is the LM7806 suitable for battery-powered applications?
A: Yes, as long as the battery voltage is within the input voltage range and can supply sufficient current.

By following this documentation, you can effectively use the LM7806 voltage regulator in your electronic projects.
