Introduction

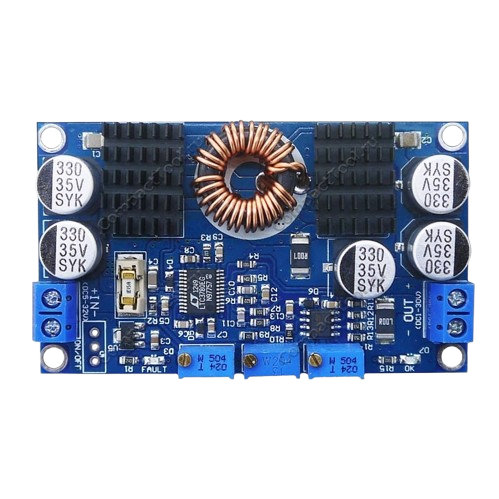

A buck-boost converter is a type of DC-DC converter that can step up (boost) or step down (buck) an input voltage to a desired output voltage level. This makes it highly versatile for applications where the input voltage may vary but a stable output voltage is required. Buck-boost converters are widely used in battery-powered devices, renewable energy systems, and automotive electronics.

Explore Projects Built with buck-boost

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing buck-boost in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
Image of Pencuci Kipas: A project utilizing buck-boost in a practical application
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Boost Converter with USB Type-C and BMS
Image of Weird Case: A project utilizing buck-boost in a practical application
This circuit is a power management and conversion system that includes a boost converter, battery management system (BMS), and various MOSFETs and passive components. It is designed to regulate and boost the voltage from a 2000mAh battery, providing stable power output through a USB Type C interface. The circuit also includes protection and switching mechanisms to ensure safe and efficient power delivery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC Generator with XL4015 Buck Converter
Image of conveyor: A project utilizing buck-boost in a practical application
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with buck-boost

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Subramanyak_Power_Circuit: A project utilizing buck-boost in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Pencuci Kipas: A project utilizing buck-boost in a practical application
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Weird Case: A project utilizing buck-boost in a practical application
Battery-Powered Boost Converter with USB Type-C and BMS
This circuit is a power management and conversion system that includes a boost converter, battery management system (BMS), and various MOSFETs and passive components. It is designed to regulate and boost the voltage from a 2000mAh battery, providing stable power output through a USB Type C interface. The circuit also includes protection and switching mechanisms to ensure safe and efficient power delivery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of conveyor: A project utilizing buck-boost in a practical application
Battery-Powered DC Generator with XL4015 Buck Converter
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering microcontrollers and sensors from batteries with fluctuating voltage levels
  • Renewable energy systems, such as solar panels, where input voltage varies with sunlight
  • Automotive electronics to stabilize voltage for sensitive components
  • Portable devices to maintain consistent voltage as battery discharges
  • LED drivers and other constant-voltage applications

Technical Specifications

Below are the general technical specifications for a typical buck-boost converter. Specific values may vary depending on the model or manufacturer.

Parameter Value
Input Voltage Range 2V to 36V (varies by model)
Output Voltage Range 1.2V to 24V (adjustable or fixed)
Output Current Up to 5A (depending on the design)
Efficiency Up to 95% (depending on load and design)
Switching Frequency 100 kHz to 2 MHz
Operating Temperature -40°C to +85°C

Pin Configuration and Descriptions

The pin configuration of a buck-boost converter IC (e.g., LM2587 or XL6009) typically includes the following:

Pin Name Description
VIN Input voltage pin. Connect to the power source.
GND Ground pin. Connect to the circuit ground.
VOUT Output voltage pin. Provides the regulated output voltage.
FB (Feedback) Feedback pin. Used to set and stabilize the output voltage via a resistor divider.
EN (Enable) Enable pin. Used to turn the converter on or off (optional, depending on model).
SW (Switch) Switching pin. Connects to the inductor for energy transfer.

Usage Instructions

How to Use the Buck-Boost Converter in a Circuit

  1. Determine Input and Output Voltage Requirements:

    • Identify the input voltage range and the desired output voltage for your application.
    • Ensure the converter's specifications meet these requirements.
  2. Connect the Input Voltage:

    • Connect the positive terminal of the power source to the VIN pin.
    • Connect the negative terminal of the power source to the GND pin.
  3. Set the Output Voltage:

    • If the converter has an adjustable output, use a resistor divider network connected to the FB pin to set the desired output voltage. Refer to the datasheet for the formula.
  4. Connect the Load:

    • Attach the load to the VOUT pin and GND.
  5. Add External Components:

    • Place an inductor, input/output capacitors, and a diode as specified in the datasheet to ensure stable operation.
  6. Power On:

    • Apply the input voltage and measure the output voltage to confirm proper operation.

Important Considerations and Best Practices

  • Inductor Selection: Choose an inductor with the appropriate current rating and inductance value to avoid saturation and ensure efficient operation.
  • Capacitor Selection: Use low-ESR capacitors for input and output filtering to minimize voltage ripple.
  • Thermal Management: Ensure adequate heat dissipation, especially for high-power applications. Use a heatsink or proper PCB layout for thermal management.
  • Load Testing: Test the converter with the actual load to verify stability and performance.
  • Avoid Overloading: Do not exceed the maximum current rating of the converter to prevent damage.

Example: Using a Buck-Boost Converter with Arduino UNO

Below is an example of connecting a buck-boost converter to power an Arduino UNO with a stable 5V output from a 3.7V lithium-ion battery.

Circuit Connections

  • Connect the battery's positive terminal to the VIN pin of the buck-boost converter.
  • Connect the battery's negative terminal to the GND pin of the converter.
  • Set the output voltage of the converter to 5V using the feedback resistor or onboard potentiometer.
  • Connect the VOUT pin of the converter to the 5V pin of the Arduino UNO.
  • Connect the GND pin of the converter to the GND pin of the Arduino UNO.

Arduino Code Example

// Example code to blink an LED connected to Arduino UNO powered by a buck-boost converter

const int ledPin = 13; // Pin 13 is connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Incorrect wiring or insufficient input voltage.
    • Solution: Double-check all connections and ensure the input voltage is within the specified range.
  2. Output Voltage is Unstable:

    • Cause: Inadequate filtering or incorrect feedback resistor values.
    • Solution: Use low-ESR capacitors and verify the resistor divider network.
  3. Excessive Heat:

    • Cause: Overloading or poor thermal management.
    • Solution: Reduce the load current or improve heat dissipation with a heatsink.
  4. High Voltage Ripple:

    • Cause: Poor capacitor selection or insufficient capacitance.
    • Solution: Use capacitors with higher capacitance and lower ESR.

FAQs

  • Can I use a buck-boost converter for powering sensitive electronics? Yes, but ensure proper filtering and stable output voltage to avoid damaging sensitive components.

  • What happens if the input voltage exceeds the specified range? Exceeding the input voltage range can damage the converter. Always use a power source within the specified range.

  • How do I calculate the feedback resistor values for adjustable output? Refer to the datasheet of the specific buck-boost converter IC for the formula and recommended resistor values.

  • Can I use a buck-boost converter with a solar panel? Yes, buck-boost converters are ideal for solar panels as they can handle varying input voltages and provide a stable output.

By following this documentation, you can effectively use a buck-boost converter in your projects and troubleshoot common issues.
