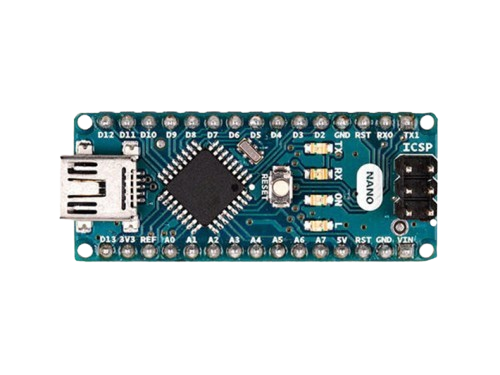

Image of Arduino nano
Cirkit Designer LogoDesign with Arduino nano in Cirkit Designer

Introduction

The Arduino Nano is a compact microcontroller board developed by Arduino, based on the ATmega328P microcontroller. It is designed for easy integration into a wide range of electronic projects, offering a small form factor without compromising functionality. The Nano is equipped with digital and analog input/output pins, USB connectivity for programming, and compatibility with the Arduino IDE, making it an excellent choice for both beginners and experienced developers.

Explore Projects Built with Arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
Image of Compass: A project utilizing Arduino nano in a practical application
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and OLED Display for Real-Time Data Visualization
Image of OLED Display: A project utilizing Arduino nano in a practical application
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Basic Setup for Embedded Projects
Image of yt: A project utilizing Arduino nano in a practical application
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Multi-Sensor Data Logger with GPS, Bluetooth, and TFT Display
Image of mt: A project utilizing Arduino nano in a practical application
This circuit features an Arduino Nano as the central microcontroller, interfaced with a variety of sensors and modules for data acquisition and display. It includes a GPS module for location tracking, a DS18B20 temperature sensor, an MPU-6050 for motion tracking, an ADXL335 accelerometer, a MAX30100 pulse oximeter, and an Adafruit TFT display for output. Additionally, the circuit integrates an HC-05 Bluetooth module for wireless communication and is powered by a 3.7v LiPo battery through a charging module, indicating a portable, multi-sensor data logging or monitoring system with display and wireless capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Compass: A project utilizing Arduino nano in a practical application
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of OLED Display: A project utilizing Arduino nano in a practical application
Arduino Nano and OLED Display for Real-Time Data Visualization
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of yt: A project utilizing Arduino nano in a practical application
Arduino Nano Basic Setup for Embedded Projects
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mt: A project utilizing Arduino nano in a practical application
Arduino Nano-Based Multi-Sensor Data Logger with GPS, Bluetooth, and TFT Display
This circuit features an Arduino Nano as the central microcontroller, interfaced with a variety of sensors and modules for data acquisition and display. It includes a GPS module for location tracking, a DS18B20 temperature sensor, an MPU-6050 for motion tracking, an ADXL335 accelerometer, a MAX30100 pulse oximeter, and an Adafruit TFT display for output. Additionally, the circuit integrates an HC-05 Bluetooth module for wireless communication and is powered by a 3.7v LiPo battery through a charging module, indicating a portable, multi-sensor data logging or monitoring system with display and wireless capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and development of embedded systems
  • Robotics and automation projects
  • IoT (Internet of Things) devices
  • Wearable electronics
  • Sensor data acquisition and processing
  • Educational tools for learning microcontroller programming

Technical Specifications

The Arduino Nano is a versatile board with the following key technical specifications:

Specification Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connectivity Mini-B USB
Dimensions 18 x 45 mm

Pin Configuration and Descriptions

The Arduino Nano has a total of 30 pins, including power, digital, and analog pins. Below is a detailed description of the pin configuration:

Power Pins

Pin Description
VIN Input voltage to the board when using an external power source (7-12V recommended).
5V Regulated 5V output from the onboard voltage regulator.
3.3V Regulated 3.3V output (maximum current: 50 mA).
GND Ground pins (multiple GND pins available).
RESET Resets the microcontroller when pulled LOW.

Digital Pins

Pin Description
D0-D13 General-purpose digital I/O pins. Pins D3, D5, D6, D9, D10, and D11 support PWM.

Analog Pins

Pin Description
A0-A7 Analog input pins (10-bit resolution). Can also be used as digital I/O pins.

Communication Pins

Pin Description
TX (D1) Transmit pin for serial communication.
RX (D0) Receive pin for serial communication.
A4 SDA pin for I2C communication.
A5 SCL pin for I2C communication.

Usage Instructions

How to Use the Arduino Nano in a Circuit

  1. Powering the Board:

    • Connect the Nano to your computer via a Mini-B USB cable for programming and power.
    • Alternatively, supply power through the VIN pin (7-12V recommended) or the 5V pin (regulated 5V).
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Select "Arduino Nano" as the board type in the IDE.
    • Choose the correct processor (ATmega328P) and port under the "Tools" menu.
    • Write your code and upload it to the board using the "Upload" button.
  3. Connecting Components:

    • Use the digital pins (D0-D13) for digital input/output operations.
    • Use the analog pins (A0-A7) for reading analog signals or as additional digital I/O pins.
    • Connect sensors, actuators, and other peripherals as needed.

Important Considerations and Best Practices

  • Avoid exceeding the maximum current rating (40 mA) for each I/O pin to prevent damage.
  • Use appropriate resistors when connecting LEDs or other components to limit current.
  • Ensure proper grounding for all connected components to avoid noise or erratic behavior.
  • When using the Nano in standalone mode, ensure a stable power supply to the VIN or 5V pin.

Example Code for Arduino Nano

The following example demonstrates how to blink an LED connected to pin D13:

// Blink an LED connected to pin D13
// This example toggles the LED ON and OFF every second.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED ON
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED OFF
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is properly connected and functional.
    • Install the necessary USB drivers for the Arduino Nano.
  2. Error uploading code to the board:

    • Verify that the correct board type (Arduino Nano) and processor (ATmega328P) are selected in the Arduino IDE.
    • Check the selected COM port under the "Tools" menu.
  3. The board is not powering on:

    • Confirm that the power source (USB or external) is supplying the correct voltage.
    • Check for loose or faulty connections.
  4. Components connected to the board are not working:

    • Double-check the wiring and connections.
    • Ensure that the components are compatible with the Arduino Nano's voltage and current ratings.

FAQs

Q: Can the Arduino Nano be powered by a battery?
A: Yes, the Nano can be powered by a battery through the VIN pin (7-12V) or the 5V pin (regulated 5V).

Q: How do I reset the Arduino Nano?
A: Press the onboard reset button or connect the RESET pin to GND momentarily.

Q: Can I use the Arduino Nano for wireless communication?
A: Yes, you can connect external wireless modules (e.g., Bluetooth, Wi-Fi) to the Nano via its digital or serial pins.

Q: Is the Arduino Nano compatible with shields?
A: The Nano does not directly support standard Arduino shields due to its smaller size, but it can be used with custom shields or breakout boards.

This concludes the documentation for the Arduino Nano. For more information, visit the official Arduino website.
