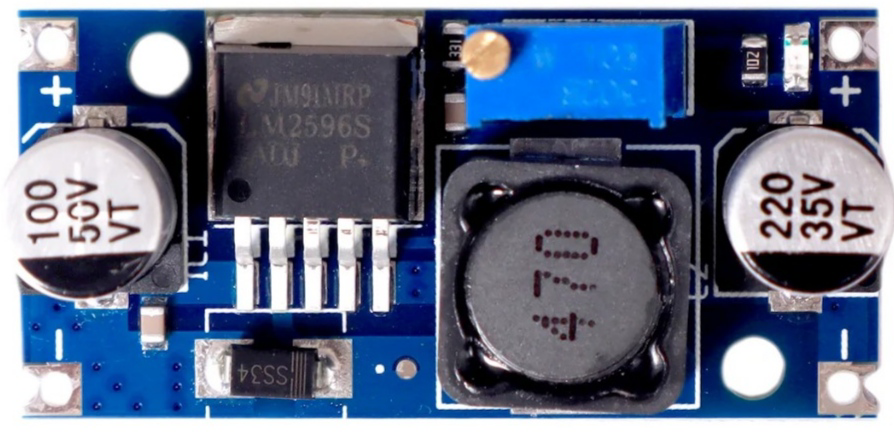

Image of step down buck converter lm2596
Cirkit Designer LogoDesign with step down buck converter lm2596 in Cirkit Designer

Introduction

The LM2596, manufactured by STMicroelectronics (Part ID: UNO), is a step-down (buck) voltage regulator designed to efficiently convert a higher input voltage to a lower output voltage. It is widely used in power supply applications due to its high efficiency, ease of use, and robust protection features. The LM2596 can handle up to 3A of output current and includes built-in thermal shutdown and current limiting to ensure safe operation.

Explore Projects Built with step down buck converter lm2596

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
Image of solar system router ups: A project utilizing step down buck converter lm2596 in a practical application
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB Power Supply with Overcurrent Protection
Image of USB Charging port: A project utilizing step down buck converter lm2596 in a practical application
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing step down buck converter lm2596 in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered ESP32 Devkit V1 with Buck Converter and Switch Control
Image of Autonomus Car: A project utilizing step down buck converter lm2596 in a practical application
This circuit is a power management system that uses two 18650 Li-ion batteries to supply power through a toggle switch and a rocker switch to an LM2956 Buck Converter. The buck converter steps down the voltage to a suitable level for a connected device via a Micro USB cable.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with step down buck converter lm2596

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of solar system router ups: A project utilizing step down buck converter lm2596 in a practical application
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of USB Charging port: A project utilizing step down buck converter lm2596 in a practical application
USB Power Supply with Overcurrent Protection
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Mini ups: A project utilizing step down buck converter lm2596 in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Autonomus Car: A project utilizing step down buck converter lm2596 in a practical application
Battery-Powered ESP32 Devkit V1 with Buck Converter and Switch Control
This circuit is a power management system that uses two 18650 Li-ion batteries to supply power through a toggle switch and a rocker switch to an LM2956 Buck Converter. The buck converter steps down the voltage to a suitable level for a connected device via a Micro USB cable.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • DC-DC power supply modules for embedded systems
  • Battery-powered devices
  • Voltage regulation for microcontrollers and sensors
  • LED drivers
  • Industrial and automotive electronics

Technical Specifications

Key Technical Details

Parameter Value
Input Voltage Range 4.5V to 40V
Output Voltage Range 1.23V to 37V (adjustable)
Maximum Output Current 3A
Efficiency Up to 92%
Switching Frequency 150 kHz
Output Voltage Tolerance ±4%
Operating Temperature Range -40°C to +125°C
Protection Features Thermal shutdown, current limiting

Pin Configuration and Descriptions

The LM2596 is typically available in a 5-pin TO-220 or TO-263 package. Below is the pin configuration:

Pin Number Pin Name Description
1 VIN Input voltage pin. Connect to the unregulated DC input voltage.
2 Output Regulated output voltage pin. Connect to the load.
3 Ground (GND) Ground pin. Connect to the system ground.
4 Feedback Feedback pin. Used to set the output voltage via an external resistor divider.
5 ON/OFF Enable pin. Pull high to enable the regulator, or low to disable it.

Usage Instructions

How to Use the LM2596 in a Circuit

  1. Input Voltage: Connect the input voltage (4.5V to 40V) to the VIN pin. Ensure the input voltage is higher than the desired output voltage by at least 3V for proper regulation.
  2. Output Voltage Adjustment: Use a resistor divider network connected to the Feedback pin to set the desired output voltage. The output voltage can be calculated using the formula: [ V_{OUT} = V_{REF} \times \left(1 + \frac{R1}{R2}\right) ] where ( V_{REF} ) is 1.23V, and ( R1 ) and ( R2 ) are the resistors in the divider.
  3. Output Capacitor: Place a low ESR capacitor (e.g., 100µF) at the output to stabilize the voltage and reduce ripple.
  4. Input Capacitor: Add a capacitor (e.g., 100µF) at the input to filter noise and improve stability.
  5. Inductor Selection: Choose an inductor with a current rating higher than the maximum load current and an appropriate inductance value (e.g., 33µH to 100µH).
  6. Enable Pin: Connect the ON/OFF pin to VIN or a logic high signal to enable the regulator. Pull it low to disable the output.

Important Considerations and Best Practices

  • Ensure proper heat dissipation by using a heatsink or adequate PCB thermal design, especially when operating at high currents.
  • Use short and thick traces for the input, output, and ground connections to minimize resistance and voltage drops.
  • Place the input and output capacitors as close as possible to the LM2596 to reduce noise and improve stability.
  • Avoid exceeding the maximum input voltage (40V) or output current (3A) to prevent damage to the component.

Example: Connecting LM2596 to an Arduino UNO

The LM2596 can be used to power an Arduino UNO by stepping down a higher voltage (e.g., 12V) to 5V. Below is an example circuit and Arduino code:

Circuit Connections

  • Connect the input voltage (e.g., 12V) to the VIN pin of the LM2596.
  • Set the output voltage to 5V using the feedback resistor divider.
  • Connect the output pin of the LM2596 to the 5V pin of the Arduino UNO.
  • Connect the GND pin of the LM2596 to the GND pin of the Arduino UNO.

Arduino Code Example

// Example code to blink an LED using an Arduino UNO powered by the LM2596
// Ensure the LM2596 output is set to 5V before connecting to the Arduino

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Output Voltage is Incorrect

    • Cause: Incorrect resistor values in the feedback network.
    • Solution: Verify the resistor values and recalculate the output voltage using the formula provided.
  2. Excessive Heat

    • Cause: High current load or insufficient heat dissipation.
    • Solution: Use a heatsink or improve PCB thermal design. Ensure the load current does not exceed 3A.
  3. No Output Voltage

    • Cause: ON/OFF pin is not properly connected.
    • Solution: Ensure the ON/OFF pin is pulled high to enable the regulator.
  4. High Output Ripple

    • Cause: Insufficient output capacitance or poor capacitor quality.
    • Solution: Use a low ESR capacitor with a higher capacitance value.

FAQs

Q: Can the LM2596 be used with a 24V input to power a 5V device?
A: Yes, the LM2596 can step down a 24V input to 5V, provided the input voltage does not exceed 40V and the load current is within 3A.

Q: What type of inductor should I use with the LM2596?
A: Use an inductor with a current rating higher than the maximum load current and an inductance value between 33µH and 100µH, depending on your application.

Q: Can I use the LM2596 to power a Raspberry Pi?
A: Yes, the LM2596 can power a Raspberry Pi if the input voltage is within the acceptable range and the output is set to 5V with sufficient current capacity.

Q: Is the LM2596 suitable for battery-powered applications?
A: Yes, the LM2596 is highly efficient and suitable for battery-powered applications, as it minimizes power loss during voltage conversion.
