How to Use VS1103: Examples, Pinouts, and Specs

The VS1103, manufactured by VLSI Solution, is a versatile audio decoder chip designed for high-quality audio playback in embedded systems. It supports a wide range of audio formats, including MP3, WAV, and MIDI, making it an ideal choice for applications requiring efficient and reliable audio decoding. The chip integrates seamlessly with microcontrollers, offering a compact and cost-effective solution for audio processing.

• MP3 players and audio playback devices
• Embedded systems requiring audio output
• Musical instruments with MIDI playback
• Audio-enabled IoT devices
• Automotive infotainment systems

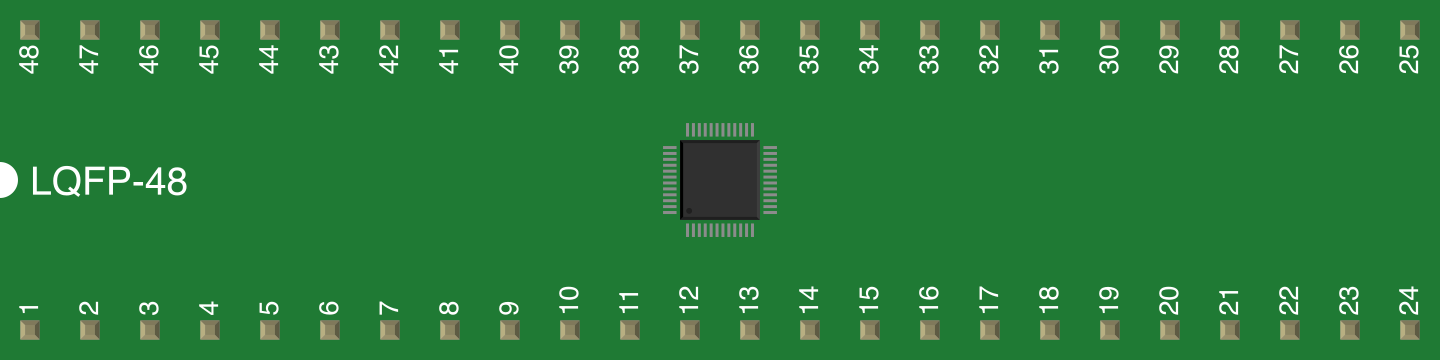

The VS1103 comes in a 48-pin LQFP package. Below is a summary of the key pins and their functions:

For a complete pinout, refer to the VS1103 datasheet provided by VLSI Solution.

1. Power Supply: Connect the VDD pin to a regulated 3.3V power source and GND to ground.
2. Audio Output: Use the LINE_OUT_L and LINE_OUT_R pins to connect to an audio amplifier or headphones.
3. SPI Communication: Connect the SPI pins (CS, SCLK, SI, SO) to the corresponding pins on your microcontroller. Ensure proper pull-up resistors if required.
4. Reset: Use the RESET pin to initialize the chip during power-up or after a fault condition.
5. Data Request (DREQ): Monitor the DREQ pin to determine when the chip is ready to receive new data.

• Use decoupling capacitors (e.g., 0.1 µF) near the power supply pins to reduce noise.
• Ensure proper grounding to minimize interference and improve audio quality.
• Avoid exceeding the maximum voltage ratings to prevent damage to the chip.
• Use shielded cables for audio connections to reduce noise and interference.

Below is an example of how to interface the VS1103 with an Arduino UNO for MP3 playback:

#include <SPI.h>

// Define VS1103 pins
#define VS_CS 10      // Chip select
#define VS_DREQ 9     // Data request
#define VS_RESET 8    // Reset pin

void setup() {
  // Initialize SPI
  SPI.begin();
  pinMode(VS_CS, OUTPUT);
  pinMode(VS_DREQ, INPUT);
  pinMode(VS_RESET, OUTPUT);

  // Reset the VS1103
  digitalWrite(VS_RESET, LOW);
  delay(100); // Wait for reset
  digitalWrite(VS_RESET, HIGH);

  // Initialize serial communication for debugging
  Serial.begin(9600);
  Serial.println("VS1103 Initialized");
}

void loop() {
  // Check if VS1103 is ready for data
  if (digitalRead(VS_DREQ) == HIGH) {
    // Send audio data via SPI (example data)
    digitalWrite(VS_CS, LOW);
    SPI.transfer(0xFF); // Example byte
    digitalWrite(VS_CS, HIGH);
  }
}

Note: Replace the SPI.transfer(0xFF) line with actual audio data from an SD card or other source.

1. No Audio Output:

   • Verify the power supply voltage (3.3V) and ensure proper grounding.
   • Check the audio connections to the amplifier or headphones.
   • Ensure the audio data format is supported by the VS1103.

2. Chip Not Responding:

   • Confirm the SPI connections and ensure the correct pin mapping.
   • Check the RESET pin and ensure the chip is properly initialized.

3. Distorted Audio:

   • Verify the audio input levels and ensure they are within the recommended range.
   • Check for noise or interference in the circuit.

• Use an oscilloscope to monitor the SPI signals and ensure proper communication.
• Test the DREQ pin to confirm the chip is ready to receive data.
• Refer to the VS1103 datasheet for detailed timing diagrams and electrical characteristics.

By following this documentation, you can effectively integrate the VS1103 into your audio playback projects and troubleshoot common issues with ease.
