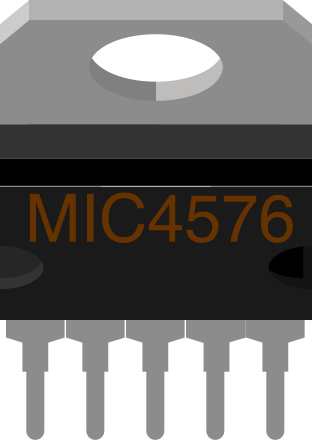

Image of Microchip MIC4576 3 A Buck Regulator (TO-220-5)
Cirkit Designer LogoDesign with Microchip MIC4576 3 A Buck Regulator (TO-220-5) in Cirkit Designer

Introduction

The Microchip MIC4576 is a high-efficiency step-down (buck) voltage regulator designed to deliver up to 3 A of output current. It operates over a wide input voltage range and integrates advanced features such as thermal shutdown, current limiting, and high switching efficiency. The MIC4576 is ideal for applications requiring efficient power conversion, such as battery-powered devices, industrial equipment, and embedded systems.

Explore Projects Built with Microchip MIC4576 3 A Buck Regulator (TO-220-5)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator
Image of Breadboard: A project utilizing Microchip MIC4576 3 A Buck Regulator (TO-220-5) in a practical application
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing Microchip MIC4576 3 A Buck Regulator (TO-220-5) in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Control Circuit with Potentiometer and Transistors
Image of STROBE LIGHTS: A project utilizing Microchip MIC4576 3 A Buck Regulator (TO-220-5) in a practical application
This circuit is a regulated power supply with a 12V battery input, a 7805 voltage regulator providing a 5V output, and a potentiometer for adjustable voltage control. It includes transistors and resistors for current regulation and an LED indicator to show the operational status.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Arduino UNO and ESP-8266 Smart Controller with LCD and RTC
Image of Ogie Diagram: A project utilizing Microchip MIC4576 3 A Buck Regulator (TO-220-5) in a practical application
This circuit is a power management and control system that uses a 12V power supply and a 18650 Li-ion battery pack to provide a stable 5V output through a step-down buck converter. It includes an Arduino UNO, an ESP-8266 controller, a DS1307 RTC module, and a 20x4 I2C LCD display for monitoring and control purposes. The ULN2003A breakout board is used for driving higher current loads.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Microchip MIC4576 3 A Buck Regulator (TO-220-5)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Breadboard: A project utilizing Microchip MIC4576 3 A Buck Regulator (TO-220-5) in a practical application
Battery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing Microchip MIC4576 3 A Buck Regulator (TO-220-5) in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of STROBE LIGHTS: A project utilizing Microchip MIC4576 3 A Buck Regulator (TO-220-5) in a practical application
Battery-Powered LED Control Circuit with Potentiometer and Transistors
This circuit is a regulated power supply with a 12V battery input, a 7805 voltage regulator providing a 5V output, and a potentiometer for adjustable voltage control. It includes transistors and resistors for current regulation and an LED indicator to show the operational status.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Ogie Diagram: A project utilizing Microchip MIC4576 3 A Buck Regulator (TO-220-5) in a practical application
Battery-Powered Arduino UNO and ESP-8266 Smart Controller with LCD and RTC
This circuit is a power management and control system that uses a 12V power supply and a 18650 Li-ion battery pack to provide a stable 5V output through a step-down buck converter. It includes an Arduino UNO, an ESP-8266 controller, a DS1307 RTC module, and a 20x4 I2C LCD display for monitoring and control purposes. The ULN2003A breakout board is used for driving higher current loads.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Power supply for microcontrollers and digital circuits
  • Battery-powered devices
  • Industrial automation systems
  • Consumer electronics
  • Automotive electronics

Technical Specifications

Key Technical Details

Parameter Value
Input Voltage Range 4 V to 40 V
Output Voltage Range Adjustable (1.23 V to 37 V)
Output Current Up to 3 A
Efficiency Up to 90% (depending on input/output ratio)
Switching Frequency 200 kHz
Dropout Voltage 1.4 V at 3 A
Thermal Shutdown Yes
Current Limiting Yes
Package Type TO-220-5

Pin Configuration and Descriptions

The MIC4576 is available in a TO-220-5 package. The pinout is as follows:

Pin Number Pin Name Description
1 VIN Input voltage (4 V to 40 V)
2 GND Ground
3 VOUT Regulated output voltage
4 FB Feedback pin for output voltage adjustment
5 ON/OFF Enable/disable control (logic high = ON)

Usage Instructions

How to Use the MIC4576 in a Circuit

  1. Input Voltage: Connect the input voltage (VIN) to Pin 1. Ensure the input voltage is within the range of 4 V to 40 V.
  2. Output Voltage Adjustment: Use a resistor divider network connected to the FB pin (Pin 4) to set the desired output voltage. The formula for the output voltage is: [ V_{OUT} = V_{REF} \times \left(1 + \frac{R1}{R2}\right) ] where ( V_{REF} ) is 1.23 V.
  3. Output Capacitor: Place a low-ESR capacitor (e.g., 100 µF) at the output (VOUT) to ensure stable operation.
  4. Input Capacitor: Add a capacitor (e.g., 100 µF) at the input (VIN) to filter input noise.
  5. Inductor Selection: Choose an inductor with a current rating higher than the maximum load current (3 A) and an appropriate inductance value for stable operation.
  6. Enable/Disable Control: Use the ON/OFF pin (Pin 5) to enable or disable the regulator. Connect this pin to VIN for always-on operation or use a logic signal for control.

Important Considerations and Best Practices

  • Thermal Management: The MIC4576 can generate heat during operation. Use a heatsink with the TO-220-5 package to ensure proper thermal dissipation.
  • PCB Layout: Minimize the trace lengths for high-current paths (VIN, VOUT, and GND) to reduce noise and improve efficiency.
  • Protection Features: The MIC4576 includes built-in thermal shutdown and current limiting. However, ensure the circuit design does not exceed the component's maximum ratings.

Example: Using MIC4576 with Arduino UNO

The MIC4576 can be used to power an Arduino UNO by stepping down a higher input voltage (e.g., 12 V) to 5 V. Below is an example circuit and Arduino code:

Circuit Connections

  • Connect a 12 V DC power supply to the VIN pin of the MIC4576.
  • Set the output voltage to 5 V using a resistor divider network on the FB pin.
  • Connect the VOUT pin to the Arduino UNO's 5 V pin.
  • Connect the GND pin of the MIC4576 to the Arduino's GND.

Arduino Code Example

// Example code to blink an LED using Arduino UNO powered by MIC4576
// Ensure the MIC4576 output is set to 5 V before connecting to Arduino

const int ledPin = 13; // Built-in LED pin on Arduino UNO

void setup() {
  pinMode(ledPin, OUTPUT); // Set LED pin as output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Output Voltage is Incorrect

    • Cause: Incorrect resistor values in the feedback network.
    • Solution: Verify the resistor values and recalculate the output voltage using the formula provided.
  2. Regulator Overheats

    • Cause: Insufficient heatsinking or excessive load current.
    • Solution: Attach a proper heatsink to the TO-220-5 package and ensure the load current does not exceed 3 A.
  3. No Output Voltage

    • Cause: ON/OFF pin is not properly connected.
    • Solution: Ensure the ON/OFF pin is connected to VIN or a logic high signal.
  4. High Output Ripple

    • Cause: Inadequate output capacitor or poor PCB layout.
    • Solution: Use a low-ESR capacitor at the output and optimize the PCB layout.

FAQs

Q1: Can the MIC4576 be used with a 24 V input?
A1: Yes, the MIC4576 supports input voltages up to 40 V, so 24 V is within its operating range.

Q2: What is the minimum load current required for stable operation?
A2: The MIC4576 does not require a minimum load current for stability, but using a small preload resistor can improve performance in some cases.

Q3: Can I use the MIC4576 to power a 3.3 V device?
A3: Yes, you can set the output voltage to 3.3 V by selecting appropriate resistor values for the feedback network.

Q4: Is the MIC4576 suitable for battery-powered applications?
A4: Yes, its high efficiency and wide input voltage range make it ideal for battery-powered devices.
