How to Use ESP32 DevKitC: Examples, Pinouts, and Specs

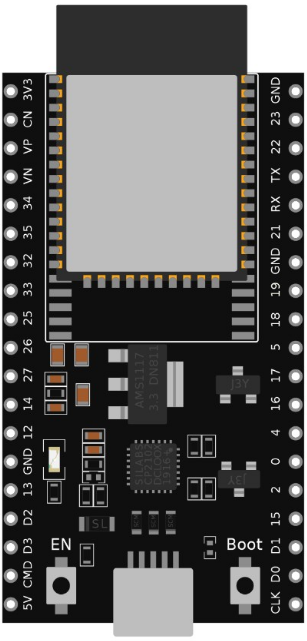

Image of ESP32 DevKitC
Cirkit Designer LogoDesign with ESP32 DevKitC in Cirkit Designer

Introduction

The ESP32 DevKitC, manufactured by A-Z Delivery, is a compact and versatile development board built around the powerful ESP32 chip. This board integrates Wi-Fi and Bluetooth capabilities, making it an ideal choice for Internet of Things (IoT) applications. With its rich set of GPIO pins, ADCs, and communication interfaces, the ESP32 DevKitC is well-suited for prototyping and developing connected devices.

Explore Projects Built with ESP32 DevKitC

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32 Devkit V1 and OLED Display Bitmap Viewer
Image of Esp32_monochromeimage: A project utilizing ESP32 DevKitC in a practical application
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 1.3" OLED display via I2C communication. The ESP32 initializes the OLED display and renders a predefined bitmap image on it.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather and Health Monitoring System with Wi-Fi Connectivity
Image of Health Monitoring System: A project utilizing ESP32 DevKitC in a practical application
This circuit uses an ESP32 Devkit V1 microcontroller to interface with multiple sensors, including a DHT11 temperature and humidity sensor, a DS18B20 temperature sensor, and a MAX30102 pulse oximeter and heart-rate sensor. The ESP32 reads data from these sensors and can process or transmit the information for further use.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32 DevKitC in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
Image of mark: A project utilizing ESP32 DevKitC in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32 DevKitC

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Esp32_monochromeimage: A project utilizing ESP32 DevKitC in a practical application
ESP32 Devkit V1 and OLED Display Bitmap Viewer
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 1.3" OLED display via I2C communication. The ESP32 initializes the OLED display and renders a predefined bitmap image on it.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Health Monitoring System: A project utilizing ESP32 DevKitC in a practical application
ESP32-Based Smart Weather and Health Monitoring System with Wi-Fi Connectivity
This circuit uses an ESP32 Devkit V1 microcontroller to interface with multiple sensors, including a DHT11 temperature and humidity sensor, a DS18B20 temperature sensor, and a MAX30102 pulse oximeter and heart-rate sensor. The ESP32 reads data from these sensors and can process or transmit the information for further use.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32 DevKitC in a practical application
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mark: A project utilizing ESP32 DevKitC in a practical application
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable technology
  • Industrial automation and monitoring
  • Robotics and remote control systems
  • Prototyping for Wi-Fi and Bluetooth-enabled projects

Technical Specifications

The ESP32 DevKitC is designed to provide robust performance and flexibility for a wide range of applications. Below are its key technical details:

Key Technical Details

  • Microcontroller: ESP32 dual-core processor with Xtensa® 32-bit LX6 CPUs
  • Clock Speed: Up to 240 MHz
  • Flash Memory: 4 MB (varies by model)
  • SRAM: 520 KB
  • Wireless Connectivity:
    • Wi-Fi: 802.11 b/g/n
    • Bluetooth: v4.2 BR/EDR and BLE
  • Operating Voltage: 3.3V
  • Input Voltage (via USB): 5V
  • GPIO Pins: 30 (varies by board version)
  • ADC Channels: Up to 18 (12-bit resolution)
  • Interfaces: UART, SPI, I2C, I2S, PWM, and more
  • Power Consumption: Ultra-low power consumption in deep sleep mode (~10 µA)
  • Dimensions: 25.4 mm x 51 mm

Pin Configuration and Descriptions

The ESP32 DevKitC features a 2x19 pin header layout. Below is the pin configuration:

Pin Name Description
1 GND Ground pin
2 3V3 3.3V power output
3 EN Enable pin (active high, used to reset the chip)
4 IO0 GPIO0, used for boot mode selection during programming
5 IO1 (TX0) GPIO1, UART0 TX pin
6 IO3 (RX0) GPIO3, UART0 RX pin
7 IO4 GPIO4, general-purpose I/O
8 IO5 GPIO5, general-purpose I/O
9 IO12 GPIO12, ADC2 channel 5
10 IO13 GPIO13, ADC2 channel 4
11 IO14 GPIO14, ADC2 channel 6
12 IO15 GPIO15, ADC2 channel 3
13 IO16 GPIO16, general-purpose I/O
14 IO17 GPIO17, general-purpose I/O
15 IO18 GPIO18, SPI clock (SCK)
16 IO19 GPIO19, SPI master-out/slave-in (MOSI)
17 IO21 GPIO21, I2C data (SDA)
18 IO22 GPIO22, I2C clock (SCL)
19 IO23 GPIO23, SPI master-in/slave-out (MISO)
20 IO25 GPIO25, ADC2 channel 8
21 IO26 GPIO26, ADC2 channel 9
22 IO27 GPIO27, ADC2 channel 7
23 IO32 GPIO32, ADC1 channel 4
24 IO33 GPIO33, ADC1 channel 5
25 IO34 GPIO34, ADC1 channel 6 (input only)
26 IO35 GPIO35, ADC1 channel 7 (input only)
27 VIN Input voltage (5V)

Note: Some GPIO pins have specific restrictions or dual functions. Refer to the ESP32 datasheet for detailed pin behavior.

Usage Instructions

How to Use the ESP32 DevKitC in a Circuit

  1. Powering the Board:

    • Connect the board to your computer via a micro-USB cable for power and programming.
    • Alternatively, supply 5V to the VIN pin or 3.3V to the 3V3 pin.
  2. Programming the Board:

    • Install the Arduino IDE and add the ESP32 board support package.
    • Select the correct board (ESP32 Dev Module) and port in the Arduino IDE.
    • Write your code and upload it to the board.
  3. Connecting Peripherals:

    • Use the GPIO pins to connect sensors, actuators, or other peripherals.
    • Ensure that the voltage levels of connected devices are compatible with the ESP32 (3.3V logic).

Important Considerations and Best Practices

  • Voltage Levels: The ESP32 operates at 3.3V logic. Avoid connecting 5V signals directly to GPIO pins.
  • Boot Mode: GPIO0 must be pulled low during programming. This is typically handled automatically by the USB-to-serial chip.
  • Power Supply: Use a stable power source to avoid unexpected resets or instability.
  • Deep Sleep Mode: Use deep sleep mode to minimize power consumption in battery-powered applications.

Example Code for Arduino IDE

Below is an example of how to blink an LED connected to GPIO2:

// Define the GPIO pin for the LED
const int ledPin = 2;

void setup() {
  // Initialize the LED pin as an output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(ledPin, LOW);
  delay(1000); // Wait for 1 second
}

Tip: Ensure the LED is connected to GPIO2 with a current-limiting resistor (e.g., 220Ω).

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB-to-serial driver for the ESP32 DevKitC.
  2. Upload fails with a timeout error:

    • Check that the correct board and port are selected in the Arduino IDE.
    • Press and hold the BOOT button on the board while uploading the code.
  3. Wi-Fi connection issues:

    • Verify the SSID and password in your code.
    • Ensure the router is within range and supports 2.4 GHz Wi-Fi (ESP32 does not support 5 GHz).
  4. GPIO pin not working as expected:

    • Check if the pin is being used for another function (e.g., ADC, SPI).
    • Avoid using GPIO6-GPIO11 as they are connected to the onboard flash memory.

FAQs

  • Can I power the ESP32 DevKitC with a battery? Yes, you can use a 3.7V LiPo battery connected to the 3V3 pin or a 5V source connected to the VIN pin.

  • Does the ESP32 DevKitC support OTA updates? Yes, the ESP32 supports Over-The-Air (OTA) updates. You can implement this feature in your code.

  • What is the maximum current draw of the ESP32? The ESP32 can draw up to 500 mA during peak operation. Ensure your power source can supply sufficient current.

  • Can I use the ESP32 DevKitC with MicroPython? Yes, the ESP32 is compatible with MicroPython. You can flash the MicroPython firmware to the board and use it for development.

For more detailed information, refer to the official ESP32 datasheet and technical reference manual.
