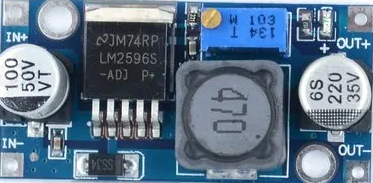

Image of LM2596 buck converter
Cirkit Designer LogoDesign with LM2596 buck converter in Cirkit Designer

Introduction

The LM2596 buck converter is a step-down voltage regulator designed to efficiently convert a higher input voltage to a lower output voltage. It is widely used in power supply applications due to its high efficiency, ease of use, and ability to handle significant current loads. The LM2596 is ideal for applications requiring a stable and adjustable DC voltage, such as powering microcontrollers, sensors, and other electronic devices.

Explore Projects Built with LM2596 buck converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing LM2596 buck converter in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB Power Supply with Overcurrent Protection
Image of USB Charging port: A project utilizing LM2596 buck converter in a practical application
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
Image of test 1 ih: A project utilizing LM2596 buck converter in a practical application
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
Image of solar system router ups: A project utilizing LM2596 buck converter in a practical application
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LM2596 buck converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Subramanyak_Power_Circuit: A project utilizing LM2596 buck converter in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of USB Charging port: A project utilizing LM2596 buck converter in a practical application
USB Power Supply with Overcurrent Protection
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of test 1 ih: A project utilizing LM2596 buck converter in a practical application
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of solar system router ups: A project utilizing LM2596 buck converter in a practical application
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Powering microcontrollers (e.g., Arduino, Raspberry Pi)
  • Battery-powered systems
  • LED drivers
  • Industrial automation
  • DIY electronics projects

Technical Specifications

The LM2596 buck converter is available in both fixed and adjustable output voltage versions. Below are the key technical details:

General Specifications

Parameter Value
Input Voltage Range 4.5V to 40V
Output Voltage Range 1.23V to 37V (adjustable version)
Output Current Up to 3A
Efficiency Up to 92%
Switching Frequency 150 kHz
Operating Temperature -40°C to +125°C

Pin Configuration

The LM2596 is typically available in a 5-pin TO-220 package. Below is the pinout description:

Pin Number Pin Name Description
1 VIN Input voltage (4.5V to 40V)
2 Output Regulated output voltage
3 Ground Ground connection
4 Feedback Voltage feedback for adjustable output
5 ON/OFF Enable/disable control (optional, not always used)

Usage Instructions

How to Use the LM2596 in a Circuit

  1. Connect the Input Voltage (VIN):
    Attach the positive terminal of your power source to the VIN pin and the negative terminal to the Ground pin.

  2. Set the Output Voltage (Adjustable Version):

    • Use a potentiometer or resistor divider connected to the Feedback pin to set the desired output voltage.
    • The output voltage can be calculated using the formula:
      [ V_{OUT} = V_{REF} \times \left(1 + \frac{R1}{R2}\right) ]
      where ( V_{REF} ) is typically 1.23V.
  3. Connect the Load:
    Attach the positive terminal of your load to the Output pin and the negative terminal to Ground.

  4. Enable the Converter (if applicable):
    If the ON/OFF pin is available, connect it to a logic HIGH (enable) or LOW (disable) signal.

Important Considerations

  • Input Voltage: Ensure the input voltage is at least 1.5V higher than the desired output voltage for proper regulation.
  • Heat Dissipation: For high current loads, use a heatsink to prevent overheating.
  • Capacitors: Use appropriate input and output capacitors (e.g., 100µF electrolytic) to stabilize the circuit and reduce noise.
  • Inductor Selection: Choose an inductor with a current rating higher than the maximum load current.

Example: Using LM2596 with Arduino UNO

Below is an example of how to use the LM2596 to power an Arduino UNO with a 12V input and 5V output:

Circuit Connections

  • Connect a 12V DC power supply to the VIN and Ground pins of the LM2596.
  • Adjust the potentiometer to set the output voltage to 5V.
  • Connect the Output pin to the Arduino's 5V pin and Ground to Ground.

Arduino Code Example

// Example code to blink an LED using Arduino UNO powered by LM2596
// Ensure the LM2596 output is set to 5V before connecting to the Arduino

const int ledPin = 13; // Built-in LED pin on Arduino UNO

void setup() {
  pinMode(ledPin, OUTPUT); // Set LED pin as output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues

  1. Output Voltage is Incorrect:

    • Cause: Potentiometer not adjusted properly or incorrect resistor values.
    • Solution: Recheck the potentiometer or resistor divider settings and adjust as needed.
  2. Overheating:

    • Cause: High current load or insufficient heat dissipation.
    • Solution: Attach a heatsink to the LM2596 and ensure proper ventilation.
  3. No Output Voltage:

    • Cause: Input voltage is too low or ON/OFF pin is disabled.
    • Solution: Verify the input voltage and ensure the ON/OFF pin is enabled.
  4. Noise or Instability:

    • Cause: Missing or insufficient capacitors.
    • Solution: Add appropriate input and output capacitors (e.g., 100µF electrolytic and 0.1µF ceramic).

FAQs

Q: Can the LM2596 be used with a battery as the input source?
A: Yes, the LM2596 can be powered by a battery as long as the input voltage is within the 4.5V to 40V range.

Q: What is the maximum current the LM2596 can handle?
A: The LM2596 can handle up to 3A, but proper heat dissipation is required for high current loads.

Q: Can I use the LM2596 to step up voltage?
A: No, the LM2596 is a buck (step-down) converter and cannot increase the input voltage.

Q: Is the LM2596 suitable for audio applications?
A: The LM2596 may introduce switching noise, so it is not ideal for sensitive audio circuits without additional filtering.

By following this documentation, you can effectively use the LM2596 buck converter in your projects.
