How to Use Shield Cytron MD-10: Examples, Pinouts, and Specs

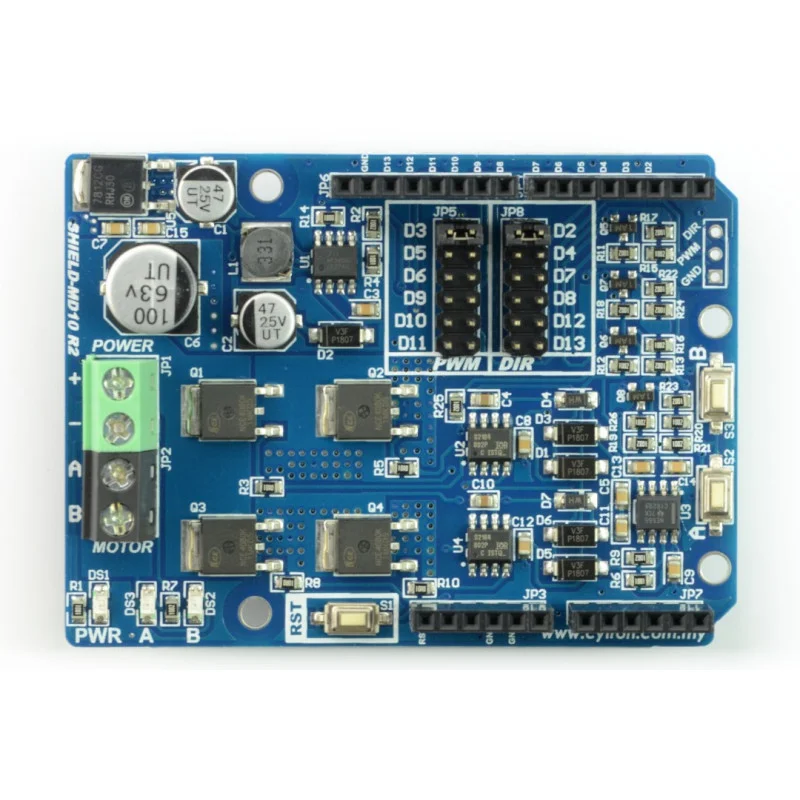

The Cytron MD-10 Motor Driver Shield is a robust and versatile motor driver designed specifically for Arduino. It is capable of driving a single brushed DC motor with a continuous current of 10A and a peak current of 30A. This shield is ideal for applications requiring high current and precise motor control, such as robotics, automation systems, and electric vehicles.

1. Mount the Shield: Place the Cytron MD-10 Motor Driver Shield on top of the Arduino UNO, ensuring that all pins are correctly aligned and inserted.

2. Connect the Motor: Connect the positive terminal of the brushed DC motor to the M+ terminal on the shield and the negative terminal to the M- terminal.

3. Power Supply: Connect an appropriate power supply (7V to 30V) to the VIN and GND terminals on the shield.

4. Arduino Code: Upload the following sample code to the Arduino UNO to control the motor.

// Cytron MD-10 Motor Driver Shield Example Code
// This code controls the speed and direction of a DC motor using PWM and DIR pins.

const int dirPin = 7;  // Direction control pin
const int pwmPin = 6;  // PWM speed control pin

void setup() {
  pinMode(dirPin, OUTPUT);  // Set direction pin as output
  pinMode(pwmPin, OUTPUT);  // Set PWM pin as output
}

void loop() {
  // Rotate motor in one direction at full speed
  digitalWrite(dirPin, HIGH);  // Set direction to forward
  analogWrite(pwmPin, 255);    // Set speed to maximum (255)
  delay(2000);                 // Run for 2 seconds

  // Rotate motor in the opposite direction at half speed
  digitalWrite(dirPin, LOW);   // Set direction to reverse
  analogWrite(pwmPin, 128);    // Set speed to half (128)
  delay(2000);                 // Run for 2 seconds
}

• Heat Dissipation: Ensure adequate ventilation or cooling for the shield, especially when operating at high currents.
• Power Supply: Use a stable and sufficient power supply to avoid voltage drops that could affect motor performance.
• Motor Specifications: Verify that the motor's voltage and current ratings are within the shield's capabilities to prevent damage.

1. Motor Not Running:

   • Solution: Check all connections, ensure the power supply is adequate, and verify that the Arduino code is correctly uploaded.

2. Motor Running in Only One Direction:

   • Solution: Verify the DIR pin connection and ensure the direction control logic in the code is correct.

3. Overheating:

   • Solution: Ensure proper ventilation and consider adding a heat sink or fan if necessary.

4. PWM Control Not Working:

   • Solution: Check the PWM pin connection and ensure the PWM frequency is within the shield's specifications.

• Q: Can I use this shield with other Arduino boards?

  • A: Yes, the Cytron MD-10 Motor Driver Shield is compatible with other Arduino boards that have the same pin configuration.

• Q: What type of motors can I drive with this shield?

  • A: This shield is designed for brushed DC motors.

• Q: Can I control the motor speed and direction simultaneously?

  • A: Yes, you can control both speed and direction using the PWM and DIR pins.

By following this documentation, users can effectively utilize the Cytron MD-10 Motor Driver Shield in their projects, ensuring reliable and efficient motor control.
