How to Use Voltage Regulator LM7812: Examples, Pinouts, and Specs

The LM7812 is a linear voltage regulator that provides a stable and reliable output voltage of 12V. It is part of the 78xx series of voltage regulators, which are widely used in electronic circuits to maintain a constant voltage level. The LM7812 is capable of delivering a maximum output current of 1.5A and includes built-in features such as thermal overload protection and short-circuit protection. These features make it a robust and versatile component for powering various electronic devices and circuits.

• Power supply circuits for microcontrollers, sensors, and other electronic components
• Voltage regulation in battery-powered devices
• Protection of sensitive electronic components from voltage fluctuations
• Use in DIY electronics projects and prototyping
• Industrial and consumer electronics requiring a stable 12V power source

The LM7812 is designed to operate efficiently under a wide range of conditions. Below are its key technical details:

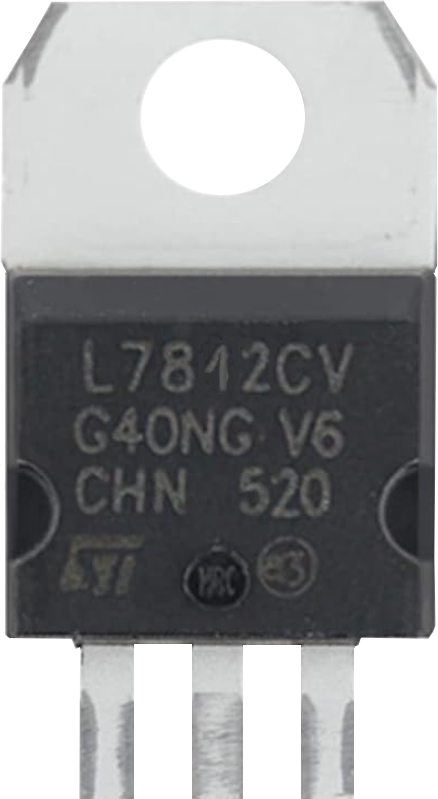

The LM7812 typically comes in a TO-220 package with three pins. Below is the pin configuration:

1. Input Voltage Requirements: Ensure the input voltage (VIN) is at least 14.5V and does not exceed 35V. This ensures proper regulation and avoids damage to the component.
2. Capacitor Placement:
   • Place a 0.33µF capacitor between the input pin (VIN) and ground to filter input noise.
   • Place a 0.1µF capacitor between the output pin (VOUT) and ground to stabilize the output voltage.
3. Heat Dissipation: If the LM7812 is expected to handle high currents or operate for extended periods, attach a heatsink to the component to prevent overheating.
4. Wiring: Connect the input voltage source to the VIN pin, the ground of the circuit to the GND pin, and the load to the VOUT pin.

Below is a simple circuit diagram for using the LM7812:

   Unregulated Input Voltage
           +14.5V to +35V
                |
                |
               [C1]  0.33µF
                |
                |-----> VIN (Pin 1)
                |       LM7812
                |-----> GND (Pin 2)
                |
               [C2]  0.1µF
                |
                |
           Regulated Output Voltage
                +12V

The LM7812 can be used to power an Arduino UNO by providing a stable 12V input to the Arduino's VIN pin. Below is an example code snippet for a simple LED blink project powered by the LM7812:

// Simple LED Blink Example
// Ensure the Arduino UNO is powered via the LM7812 regulator
// connected to the VIN pin for stable 12V input.

int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

• Input Voltage Margin: Always ensure the input voltage is at least 2V higher than the output voltage to maintain proper regulation.
• Heat Management: Use a heatsink if the regulator is dissipating significant power (e.g., high input voltage and/or high current).
• Capacitor Selection: Use high-quality capacitors with appropriate voltage ratings to ensure stability and noise filtering.
• Load Current: Do not exceed the maximum output current of 1.5A to avoid damaging the regulator.

1. Output Voltage is Not 12V:

   • Check the input voltage. Ensure it is within the specified range (14.5V to 35V).
   • Verify the capacitors are correctly placed and have the correct values.
   • Ensure the load does not exceed the maximum current rating of 1.5A.

2. Regulator Overheating:

   • Attach a heatsink to the LM7812 to improve heat dissipation.
   • Reduce the input voltage if it is significantly higher than 12V.
   • Check for excessive load current and reduce it if necessary.

3. No Output Voltage:

   • Verify all connections, especially the input and ground pins.
   • Check for short circuits or damaged components in the circuit.
   • Ensure the input voltage is at least 2V higher than the output voltage.

Q: Can I use the LM7812 to power a 5V device?
A: No, the LM7812 provides a fixed output of 12V. To power a 5V device, use a 7805 regulator or a DC-DC step-down converter.

Q: What happens if the input voltage drops below 14.5V?
A: The LM7812 may fail to regulate properly, resulting in an unstable or lower-than-expected output voltage.

Q: Can I use the LM7812 without capacitors?
A: While the LM7812 may function without capacitors, it is highly recommended to use them to ensure stable operation and noise filtering.

Q: Is the LM7812 suitable for battery-powered applications?
A: Yes, but ensure the battery voltage is within the input voltage range and consider the power dissipation to avoid excessive energy loss.
