How to Use SN74LS00: Examples, Pinouts, and Specs

The SN74LS00, manufactured by Texas Instruments (TI), is a quad 2-input NAND gate. This digital logic component is designed to perform the NAND operation, which outputs a LOW signal only when all inputs are HIGH. The SN74LS00 contains four independent NAND gates, each capable of accepting two inputs and providing a single output.

This versatile component is widely used in digital circuits for implementing logic functions, signal processing, and control systems. Its robust design and compatibility with TTL (Transistor-Transistor Logic) make it a popular choice in educational, industrial, and hobbyist applications.

• Logic function implementation in digital circuits
• Signal inversion and control
• Clock signal generation and timing circuits
• Basic building block for flip-flops, multiplexers, and other digital systems

• Manufacturer Part ID: SN74LS00
• Logic Family: TTL (Low Power Schottky)
• Number of Gates: 4 (quad)
• Number of Inputs per Gate: 2
• Supply Voltage (Vcc): 4.75V to 5.25V
• Input Voltage (VI): 0V to 5.5V
• Output Voltage (VO): 0V to Vcc
• High-Level Output Current (IOH): -0.4 mA
• Low-Level Output Current (IOL): 8 mA
• Propagation Delay: 9 ns (typical at 5V)
• Operating Temperature Range: 0°C to 70°C
• Package Types: DIP-14, SOIC-14, and others

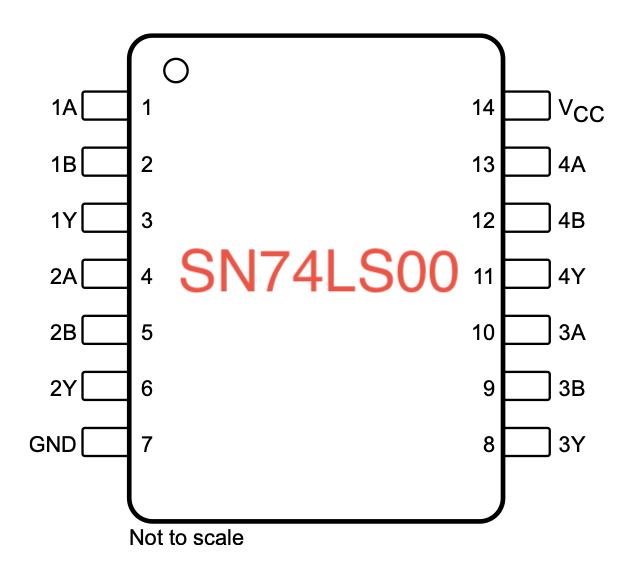

The SN74LS00 is typically available in a 14-pin Dual Inline Package (DIP). The pinout is as follows:

1. Power Supply: Connect the Vcc pin (Pin 14) to a 5V power supply and the GND pin (Pin 7) to ground.
2. Inputs: Provide digital signals (HIGH or LOW) to the input pins (e.g., 1A and 1B for Gate 1).
3. Outputs: The output pin (e.g., 1Y for Gate 1) will provide the NAND operation result based on the inputs.
   • Output is HIGH unless both inputs are HIGH, in which case the output is LOW.
4. Load Considerations: Ensure the output current does not exceed the specified limits (8 mA for LOW-level output).

• Unused Inputs: Tie unused inputs to either Vcc or GND to avoid floating inputs, which can cause unpredictable behavior.
• Decoupling Capacitor: Place a 0.1 µF ceramic capacitor close to the Vcc and GND pins to filter noise and stabilize the power supply.
• Input Voltage Levels: Ensure input signals are within the specified voltage range (0V to 5.5V).

The SN74LS00 can be used with an Arduino UNO to perform basic logic operations. Below is an example of using one NAND gate to process two digital signals.

• Connect Pin 14 (Vcc) to the Arduino's 5V pin.
• Connect Pin 7 (GND) to the Arduino's GND pin.
• Connect two digital pins of the Arduino (e.g., D2 and D3) to the inputs of Gate 1 (Pins 1A and 1B).
• Connect the output of Gate 1 (Pin 3) to another digital pin (e.g., D4) for reading the result.

// Define input and output pins
const int inputA = 2;  // Arduino pin connected to 1A (Pin 1)
const int inputB = 3;  // Arduino pin connected to 1B (Pin 2)
const int outputY = 4; // Arduino pin connected to 1Y (Pin 3)

void setup() {
  // Configure input pins
  pinMode(inputA, OUTPUT);
  pinMode(inputB, OUTPUT);

  // Configure output pin
  pinMode(outputY, INPUT);

  // Initialize inputs to LOW
  digitalWrite(inputA, LOW);
  digitalWrite(inputB, LOW);
}

void loop() {
  // Example: Test NAND operation
  digitalWrite(inputA, HIGH); // Set input A to HIGH
  digitalWrite(inputB, HIGH); // Set input B to HIGH

  // Read the NAND gate output
  int result = digitalRead(outputY);

  // Print the result to the Serial Monitor
  Serial.begin(9600);
  Serial.print("NAND Gate Output: ");
  Serial.println(result); // Should print 0 (LOW) when both inputs are HIGH
  delay(1000); // Wait for 1 second
}

1. No Output Signal:

   • Check the power supply connections (Vcc and GND).
   • Verify that input signals are within the specified voltage range.
   • Ensure unused inputs are tied to Vcc or GND.

2. Unstable Output:

   • Add a decoupling capacitor (0.1 µF) near the Vcc and GND pins.
   • Avoid long wires for input and output connections to reduce noise.

3. Incorrect Logic Operation:

   • Double-check the input connections and logic levels.
   • Verify the pinout to ensure correct wiring.

• Q: Can the SN74LS00 operate at 3.3V?

  • A: No, the SN74LS00 is designed for a supply voltage range of 4.75V to 5.25V. Use a compatible 3.3V logic family if needed.

• Q: What happens if I leave an input pin floating?

  • A: Floating inputs can cause unpredictable behavior. Always tie unused inputs to Vcc or GND.

• Q: Can I use all four gates simultaneously?

  • A: Yes, all four gates are independent and can be used simultaneously, provided the total current does not exceed the device's limits.

This concludes the documentation for the SN74LS00.
