How to Use ir object sensor: Examples, Pinouts, and Specs

An infrared (IR) object sensor detects the presence of objects by emitting infrared light and measuring the reflection. It is a versatile and cost-effective component widely used in automation, robotics, and security systems. The sensor is ideal for applications such as obstacle detection in robots, proximity sensing in automated doors, and object counting in conveyor systems.

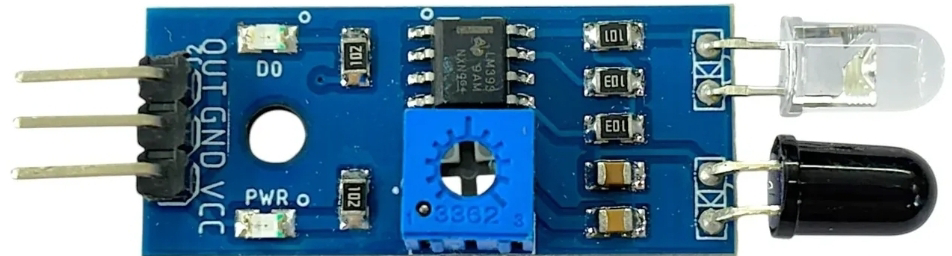

The IR object sensor typically consists of an IR LED (emitter) and a photodiode or phototransistor (receiver). Below are the key technical details:

• Operating Voltage: 3.3V to 5V DC
• Current Consumption: ~20mA
• Detection Range: 2cm to 30cm (varies by model and environment)
• Output Type: Digital (High/Low) or Analog (voltage proportional to distance)
• Response Time: <1ms
• Operating Temperature: -10°C to 50°C

The IR object sensor typically has three or four pins. Below is a table describing the pin configuration for a common 3-pin IR object sensor:

For a 4-pin IR object sensor with both digital and analog outputs, the configuration is as follows:

1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground.
2. Connect the Output:
   • For digital output, connect the OUT or DOUT pin to a microcontroller's digital input pin.
   • For analog output (if available), connect the AOUT pin to an analog input pin of the microcontroller.
3. Adjust Sensitivity: Many IR object sensors have a potentiometer to adjust the detection range. Turn the potentiometer clockwise or counterclockwise to fine-tune the sensitivity.
4. Test the Sensor: Place an object within the detection range and observe the output signal.

• Ambient Light: IR sensors can be affected by ambient light. Use the sensor in controlled lighting conditions or shield it from direct sunlight.
• Reflective Surfaces: Highly reflective surfaces may cause false readings. Test the sensor with the intended objects to ensure reliable operation.
• Power Supply: Use a stable power supply to avoid fluctuations in sensor performance.
• Mounting: Position the sensor at an appropriate angle and distance for optimal detection.

Below is an example of how to connect and use a 3-pin IR object sensor with an Arduino UNO:

• VCC: Connect to the Arduino's 5V pin.
• GND: Connect to the Arduino's GND pin.
• OUT: Connect to Arduino digital pin 2.

// IR Object Sensor Example Code
// This code reads the digital output of the IR sensor and turns on an LED
// when an object is detected.

const int sensorPin = 2;  // Pin connected to the IR sensor's OUT pin
const int ledPin = 13;    // Pin connected to the onboard LED

void setup() {
  pinMode(sensorPin, INPUT);  // Set the sensor pin as input
  pinMode(ledPin, OUTPUT);    // Set the LED pin as output
  Serial.begin(9600);         // Initialize serial communication
}

void loop() {
  int sensorValue = digitalRead(sensorPin);  // Read the sensor output

  if (sensorValue == LOW) {
    // Object detected
    digitalWrite(ledPin, HIGH);  // Turn on the LED
    Serial.println("Object detected!");
  } else {
    // No object detected
    digitalWrite(ledPin, LOW);   // Turn off the LED
    Serial.println("No object detected.");
  }

  delay(100);  // Small delay for stability
}

1. Sensor Not Detecting Objects:

   • Ensure the sensor is powered correctly (check VCC and GND connections).
   • Adjust the sensitivity using the potentiometer.
   • Verify that the object is within the detection range.

2. False Detections:

   • Reduce ambient light interference by shielding the sensor.
   • Avoid using the sensor near highly reflective surfaces.

3. Unstable Output:

   • Use a decoupling capacitor (e.g., 0.1µF) across the VCC and GND pins to stabilize the power supply.
   • Check for loose or faulty connections.

Q1: Can the IR object sensor detect transparent objects?
A1: No, most IR object sensors cannot reliably detect transparent objects like glass, as they do not reflect sufficient infrared light.

Q2: What is the maximum detection range of the sensor?
A2: The detection range varies by model but is typically between 2cm and 30cm. Check the datasheet for your specific sensor.

Q3: Can I use the sensor outdoors?
A3: While the sensor can be used outdoors, direct sunlight may interfere with its operation. Use shielding or place the sensor in a shaded area for better performance.

Q4: How do I clean the sensor?
A4: Use a soft, dry cloth to clean the sensor lens. Avoid using water or harsh chemicals.

By following this documentation, you can effectively integrate and troubleshoot an IR object sensor in your projects.
