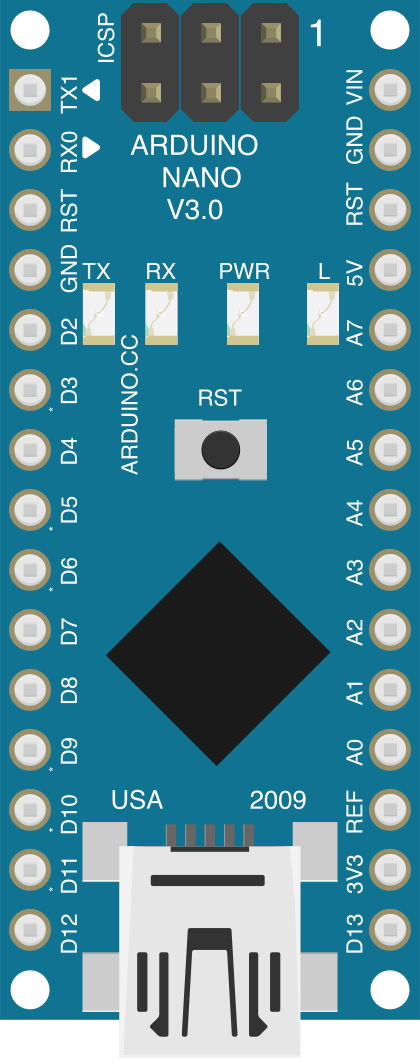

Image of Arduino Nano (Rev3.0)
Cirkit Designer LogoDesign with Arduino Nano (Rev3.0) in Cirkit Designer

Introduction

The Arduino Nano (Rev3.0), manufactured by Arduino (Part ID: A000005), is a compact and versatile microcontroller board based on the ATmega328P microcontroller. It is designed for embedded systems and prototyping, offering a small form factor without compromising functionality. The Nano is equipped with 14 digital input/output pins, 6 analog inputs, and a mini-USB port for programming and power. Its compatibility with the Arduino IDE and wide range of libraries makes it an excellent choice for beginners and professionals alike.

Explore Projects Built with Arduino Nano (Rev3.0)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano-Based OLED Clock with RTC and LiPo Battery Charging
Image of RTC for Keyboard: A project utilizing Arduino Nano (Rev3.0) in a practical application
This circuit features an Arduino Nano connected to an OLED display and a DS3231 real-time clock (RTC) module for displaying the current time. The Arduino Nano is powered through a toggle switch connected to its VIN pin, with power supplied by a TP4056 charging module that charges and manages two 3.7V LiPo batteries connected in parallel. The OLED and RTC module communicate with the Arduino via I2C, with shared SDA and SCL lines connected to the A4 and A5 pins of the Arduino, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
Image of Compass: A project utilizing Arduino Nano (Rev3.0) in a practical application
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Controlled LCD Interface with Pushbutton Inputs
Image of MacroDisplay: A project utilizing Arduino Nano (Rev3.0) in a practical application
This circuit features a Nano 3.0 ATmega328P microcontroller connected to a 16x2 I2C LCD display for output. Two pushbuttons, each with a 10k Ohm pull-down resistor, are connected to digital pins D2 and D3 of the microcontroller for input. The LCD and pushbuttons are powered by the 5V output from the microcontroller, and all components share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Controlled Automatic Pet Feeder with OLED Display and RTC
Image of Solar-Based Pet Feeding Machine: A project utilizing Arduino Nano (Rev3.0) in a practical application
This circuit features an Arduino Nano microcontroller interfaced with a DS3231 real-time clock, a servo motor, a buzzer, and an OLED display. The Arduino controls the servo motor based on the time from the DS3231 and displays information on the OLED screen. It is designed to function as an automated feeder, with the ability to set feeding intervals and portion sizes, and includes manual override buttons.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino Nano (Rev3.0)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of RTC for Keyboard: A project utilizing Arduino Nano (Rev3.0) in a practical application
Arduino Nano-Based OLED Clock with RTC and LiPo Battery Charging
This circuit features an Arduino Nano connected to an OLED display and a DS3231 real-time clock (RTC) module for displaying the current time. The Arduino Nano is powered through a toggle switch connected to its VIN pin, with power supplied by a TP4056 charging module that charges and manages two 3.7V LiPo batteries connected in parallel. The OLED and RTC module communicate with the Arduino via I2C, with shared SDA and SCL lines connected to the A4 and A5 pins of the Arduino, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Compass: A project utilizing Arduino Nano (Rev3.0) in a practical application
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of MacroDisplay: A project utilizing Arduino Nano (Rev3.0) in a practical application
Arduino Nano Controlled LCD Interface with Pushbutton Inputs
This circuit features a Nano 3.0 ATmega328P microcontroller connected to a 16x2 I2C LCD display for output. Two pushbuttons, each with a 10k Ohm pull-down resistor, are connected to digital pins D2 and D3 of the microcontroller for input. The LCD and pushbuttons are powered by the 5V output from the microcontroller, and all components share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Solar-Based Pet Feeding Machine: A project utilizing Arduino Nano (Rev3.0) in a practical application
Arduino Nano Controlled Automatic Pet Feeder with OLED Display and RTC
This circuit features an Arduino Nano microcontroller interfaced with a DS3231 real-time clock, a servo motor, a buzzer, and an OLED display. The Arduino controls the servo motor based on the time from the DS3231 and displays information on the OLED screen. It is designed to function as an automated feeder, with the ability to set feeding intervals and portion sizes, and includes manual override buttons.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • DIY electronics and prototyping
  • Robotics and automation systems
  • IoT (Internet of Things) devices
  • Sensor data acquisition and processing
  • Wearable technology
  • Educational projects and learning platforms

Technical Specifications

The following table outlines the key technical details of the Arduino Nano (Rev3.0):

Specification Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 6
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
Dimensions 18 x 45 mm
Weight 7 g

Pin Configuration and Descriptions

The Arduino Nano (Rev3.0) has a total of 30 pins. Below is a detailed description of the pin configuration:

Pin Type Description
D0-D13 Digital I/O General-purpose digital input/output pins. D3, D5, D6, D9, D10, D11 support PWM.
A0-A5 Analog Input Analog input pins with a 10-bit resolution. Can also be used as digital pins.
VIN Power Input Input voltage to the board when using an external power source (7-12V).
5V Power Output Regulated 5V output from the onboard voltage regulator.
3.3V Power Output Regulated 3.3V output (maximum current: 50 mA).
GND Ground Ground pins.
RESET Reset Resets the microcontroller.
TX (D1) UART Transmit Transmits serial data.
RX (D0) UART Receive Receives serial data.
USB USB Port Used for programming and powering the board.

Usage Instructions

How to Use the Arduino Nano in a Circuit

  1. Powering the Board:

    • Connect the Nano to your computer via a mini-USB cable for programming and power.
    • Alternatively, supply power through the VIN pin (7-12V recommended) or the 5V pin (regulated 5V).
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Select "Arduino Nano" as the board type and "ATmega328P" as the processor in the Tools menu.
    • Connect the Nano to your computer and select the appropriate COM port.
    • Write or load your sketch and click the "Upload" button.
  3. Connecting Components:

    • Use the digital pins (D0-D13) for digital input/output operations.
    • Use the analog pins (A0-A5) for reading analog signals or as additional digital pins.
    • Connect sensors, actuators, or other peripherals as needed, ensuring current and voltage limits are not exceeded.

Important Considerations and Best Practices

  • Avoid supplying more than 5V to the 5V pin or more than 12V to the VIN pin to prevent damage.
  • Use resistors with LEDs to limit current and prevent damage to the pins.
  • When using PWM pins, ensure the connected device supports PWM signals.
  • For serial communication, avoid using D0 and D1 if the USB connection is active, as these pins are shared with the USB interface.

Example Code for Arduino Nano

The following example demonstrates how to blink an LED connected to pin D13:

// Blink an LED connected to pin D13
// This example toggles the LED on and off every second.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Check if the correct COM port is selected in the Arduino IDE.
    • Install or update the USB drivers for the Arduino Nano.
  2. Sketch upload fails:

    • Verify that the correct board and processor are selected in the Tools menu.
    • Press the reset button on the Nano just before uploading the sketch.
    • Ensure no other application is using the COM port.
  3. The board is overheating:

    • Check the input voltage; ensure it is within the recommended range.
    • Avoid drawing excessive current from the I/O pins.
  4. Analog readings are unstable:

    • Use proper grounding and shielding for analog sensors.
    • Add a capacitor between the sensor's power and ground pins to reduce noise.

FAQs

Q: Can the Arduino Nano be powered by batteries?
A: Yes, you can power the Nano using batteries. Connect a 9V battery to the VIN pin or a 5V regulated source to the 5V pin.

Q: What is the difference between the Nano and the Uno?
A: The Nano is smaller and more compact than the Uno, making it suitable for space-constrained projects. However, both use the same ATmega328P microcontroller and are functionally similar.

Q: Can I use the Nano for wireless communication?
A: Yes, you can connect wireless modules like Bluetooth (HC-05/HC-06) or Wi-Fi (ESP8266) to the Nano via its UART or SPI/I2C interfaces.

Q: How do I reset the Nano?
A: Press the reset button on the board or connect the RESET pin to GND momentarily.

By following this documentation, you can effectively utilize the Arduino Nano (Rev3.0) for a wide range of projects and applications.
