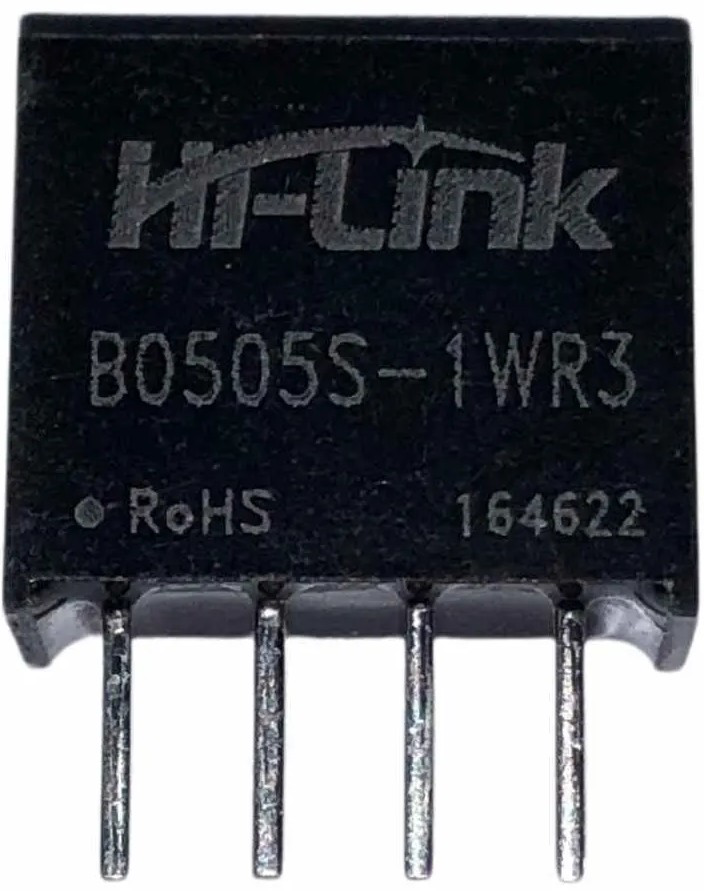

The B0505S-1W is a compact DC-DC converter designed to step down voltage from 5V to 5V while providing electrical isolation. With an output power of 1W, this component is ideal for applications requiring efficient power conversion in a small form factor. Its high efficiency and isolation capabilities make it suitable for use in industrial control systems, medical devices, communication equipment, and other sensitive electronic circuits.
Explore Projects Built with B0505S-1W
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is designed for a tow release control system in an aircraft, featuring a P68 Tow Control Panel and a Tow Release With Switches assembly. The control panel receives power from two separate aircraft batteries, with one providing main power and the other serving as a backup. The Tow Release With Switches assembly is connected to the control panel, allowing for the actuation of the tow mechanism and providing feedback via an LED indicator.
This circuit is a power management system that integrates a 12V power supply, a solar charger power bank, and multiple Li-ion batteries to provide a stable power output. The Waveshare UPS 3S manages the input from the power sources and batteries, ensuring continuous power delivery. The MRB045 module is used to interface the solar charger with the rest of the system.
This circuit appears to be a complex system involving power supply management, GPS and timing synchronization, and data communication. It includes a SI-TEX G1 Satellite Compass for GPS data, an XHTF1021 Atomic Rubidium Clock for precise timing, and Ettus USRP B200 units for software-defined radio communication. Power is supplied through various SMPS units and distributed via terminal blocks and DC jacks. Data communication is facilitated by Beelink MINI S12 N95 computers, RS232 splitters, and a 1000BASE-T Media Converter for network connectivity. RF Directional Couplers are used to interface antennas with the USRP units, and the entire system is likely contained within cases for protection and organization.
This circuit is a solar-powered laser emitter system with an LED indicator. The solar panel charges a 18650 battery via a TP4056 charging module, and a push button controls the activation of the laser emitter and the LED through a MOSFET switch.
The B0505S-1W is a highly efficient and reliable DC-DC converter. Below are its key technical details:
Key Specifications
Parameter
Value
Input Voltage Range
4.5V to 5.5V
Output Voltage
5V
Output Power
1W
Efficiency
Up to 80%
Isolation Voltage
1000V DC
Operating Temperature
-40°C to +85°C
Package Type
SIP-4
Pin Configuration and Descriptions
The B0505S-1W comes in a SIP-4 (Single Inline Package) with the following pinout:
Pin Number
Name
Description
1
VIN (+)
Positive input voltage (4.5V to 5.5V)
2
GND (Input)
Ground for input voltage
3
GND (Output)
Ground for output voltage
4
VOUT (+)
Positive output voltage (5V)
Usage Instructions
How to Use the B0505S-1W in a Circuit
Input Voltage Connection: Connect the input voltage (4.5V to 5.5V) to the VIN (+) pin (Pin 1) and the input ground to the GND (Input) pin (Pin 2).
Output Voltage Connection: Connect the load to the VOUT (+) pin (Pin 4) and the output ground to the GND (Output) pin (Pin 3).
Isolation: Ensure that the input and output grounds are not directly connected to maintain isolation.
Bypass Capacitors: For stable operation, place a 10µF capacitor across the input pins (VIN and GND) and another 10µF capacitor across the output pins (VOUT and GND).
Important Considerations and Best Practices
Input Voltage Range: Ensure the input voltage remains within the specified range (4.5V to 5.5V) to avoid damage to the component.
Load Requirements: The load should not exceed the maximum output power of 1W.
Thermal Management: Operate the component within the specified temperature range (-40°C to +85°C) to prevent overheating.
Isolation: Use the isolation feature to protect sensitive circuits from noise or ground loops.
Example: Using the B0505S-1W with an Arduino UNO
The B0505S-1W can be used to provide an isolated 5V power supply for sensors or modules connected to an Arduino UNO. Below is an example circuit and code:
Circuit Setup
Connect the Arduino's 5V pin to the VIN (+) pin of the B0505S-1W.
Connect the Arduino's GND pin to the GND (Input) pin of the B0505S-1W.
Connect the isolated output (VOUT and GND) to the sensor or module requiring a 5V supply.
Example Code
// Example code for reading data from a sensor powered by the B0505S-1W
// connected to an Arduino UNO. The sensor is connected to pin A0.
const int sensorPin = A0; // Analog pin connected to the sensor output
void setup() {
Serial.begin(9600); // Initialize serial communication at 9600 baud
pinMode(sensorPin, INPUT); // Set the sensor pin as input
}
void loop() {
int sensorValue = analogRead(sensorPin); // Read the sensor value
float voltage = sensorValue * (5.0 / 1023.0); // Convert to voltage
Serial.print("Sensor Voltage: ");
Serial.print(voltage);
Serial.println(" V");
delay(1000); // Wait for 1 second before the next reading
}
Troubleshooting and FAQs
Common Issues and Solutions
No Output Voltage:
Cause: Input voltage is outside the specified range.
Solution: Verify that the input voltage is between 4.5V and 5.5V.
Overheating:
Cause: Excessive load or operation outside the temperature range.
Solution: Ensure the load does not exceed 1W and maintain proper ventilation.
Noise on Output Voltage:
Cause: Insufficient bypass capacitors.
Solution: Add 10µF capacitors across the input and output pins.
Loss of Isolation:
Cause: Input and output grounds are connected.
Solution: Ensure the input and output grounds are electrically isolated.
FAQs
Q1: Can the B0505S-1W be used with a 3.3V input?
A1: No, the input voltage must be within the range of 4.5V to 5.5V for proper operation.
Q2: Is the B0505S-1W suitable for audio applications?
A2: Yes, its isolation and noise reduction capabilities make it suitable for audio circuits.
Q3: What is the maximum load current?
A3: The maximum load current is 200mA (calculated as 1W / 5V).
Q4: Can I use the B0505S-1W in parallel for higher power?
A4: No, the B0505S-1W is not designed for parallel operation. Use a higher-rated DC-DC converter for higher power requirements.
