How to Use DC-DC_CONVERTER: Examples, Pinouts, and Specs

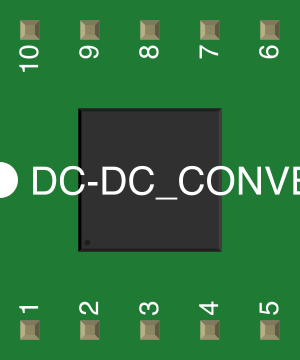

Image of DC-DC_CONVERTER
Cirkit Designer LogoDesign with DC-DC_CONVERTER in Cirkit Designer

Introduction

A DC-DC converter is an electronic circuit that converts a source of direct current (DC) from one voltage level to another. It is widely used in applications where efficient power management is critical. These converters are essential in modern electronics, enabling devices to operate at different voltage levels while minimizing energy loss.

Explore Projects Built with DC-DC_CONVERTER

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
Image of test 1 ih: A project utilizing DC-DC_CONVERTER in a practical application
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing DC-DC_CONVERTER in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
DC-DC Converter and Relay Module Power Distribution System
Image of relay: A project utilizing DC-DC_CONVERTER in a practical application
This circuit consists of a DC-DC converter powering a 6-channel power module, which in turn supplies 5V to a 2-relay module. The power module distributes the converted voltage to the relay module, enabling it to control external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC to DC Micro USB Power Supply with Buck Converter
Image of ac: A project utilizing DC-DC_CONVERTER in a practical application
This circuit is designed to convert AC power to regulated DC power. An AC source feeds a power transformer that steps down the voltage, which is then rectified by a bridge rectifier to produce a pulsating DC. This DC is further converted to a stable DC output by a step-down buck converter, which then provides power through a Micro USB connector.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DC-DC_CONVERTER

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of test 1 ih: A project utilizing DC-DC_CONVERTER in a practical application
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing DC-DC_CONVERTER in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of relay: A project utilizing DC-DC_CONVERTER in a practical application
DC-DC Converter and Relay Module Power Distribution System
This circuit consists of a DC-DC converter powering a 6-channel power module, which in turn supplies 5V to a 2-relay module. The power module distributes the converted voltage to the relay module, enabling it to control external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ac: A project utilizing DC-DC_CONVERTER in a practical application
AC to DC Micro USB Power Supply with Buck Converter
This circuit is designed to convert AC power to regulated DC power. An AC source feeds a power transformer that steps down the voltage, which is then rectified by a bridge rectifier to produce a pulsating DC. This DC is further converted to a stable DC output by a step-down buck converter, which then provides power through a Micro USB connector.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering microcontrollers and sensors in embedded systems
  • Battery-powered devices, such as smartphones and laptops
  • Renewable energy systems, including solar panels and wind turbines
  • Automotive electronics for voltage regulation
  • Industrial equipment requiring multiple voltage levels

Technical Specifications

Below are the general technical specifications for a typical DC-DC converter. Note that specific models may vary, so always refer to the datasheet of the exact component you are using.

Key Technical Details

  • Input Voltage Range: 3V to 40V (varies by model)
  • Output Voltage Range: 1.2V to 35V (adjustable or fixed)
  • Output Current: Up to 3A (depending on the model)
  • Efficiency: Up to 95% (varies with load and input/output conditions)
  • Switching Frequency: 150 kHz to 1 MHz
  • Operating Temperature: -40°C to +85°C

Pin Configuration and Descriptions

The pinout of a DC-DC converter depends on its type (e.g., buck, boost, or buck-boost). Below is an example pin configuration for a common adjustable buck converter module (e.g., LM2596-based module):

Pin Name Description
VIN Input voltage pin. Connect the DC input source here.
GND Ground pin. Connect to the ground of the input and output circuits.
VOUT Output voltage pin. Provides the regulated DC output voltage.
ADJ (or FB) Adjustment pin. Used to set the output voltage (via a potentiometer or resistor).

Usage Instructions

How to Use the Component in a Circuit

  1. Determine Input and Output Voltage Requirements:

    • Identify the input voltage range and the desired output voltage for your application.
    • Ensure the input voltage is within the converter's specified range.
  2. Connect the Input and Output:

    • Connect the DC input source to the VIN pin and ground to the GND pin.
    • Connect the load to the VOUT pin and ground to the GND pin.
  3. Adjust the Output Voltage (if applicable):

    • For adjustable converters, use the onboard potentiometer or external resistors to set the desired output voltage.
    • Measure the output voltage with a multimeter to ensure accuracy.
  4. Add External Components (if required):

    • Some converters may require external capacitors or inductors for stable operation. Refer to the datasheet for recommended values.
  5. Power On and Test:

    • Power on the circuit and verify the output voltage and current with a multimeter.
    • Ensure the load does not exceed the converter's maximum current rating.

Important Considerations and Best Practices

  • Heat Dissipation: High current loads may cause the converter to heat up. Use a heatsink or active cooling if necessary.
  • Input Voltage Ripple: Add input capacitors to reduce voltage ripple and improve stability.
  • Output Filtering: Use output capacitors to minimize noise and ensure a clean DC output.
  • Polarity Protection: Ensure correct polarity when connecting the input and output to avoid damage.
  • Load Regulation: Verify that the converter maintains a stable output voltage under varying load conditions.

Example: Using a DC-DC Converter with Arduino UNO

Below is an example of using a DC-DC buck converter to power an Arduino UNO from a 12V source:

  1. Connect the 12V input source to the VIN and GND pins of the converter.
  2. Adjust the output voltage to 5V using the potentiometer.
  3. Connect the VOUT pin of the converter to the 5V pin of the Arduino UNO.
  4. Connect the GND pin of the converter to the GND pin of the Arduino UNO.
// Example Arduino code to blink an LED powered by a DC-DC converter
// Ensure the DC-DC converter is set to 5V output before connecting to Arduino

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Check the input voltage and ensure it is within the specified range.
    • Verify all connections, especially the polarity of the input and output.
  2. Output Voltage is Incorrect:

    • For adjustable converters, recheck the potentiometer setting or resistor values.
    • Ensure the load is not drawing more current than the converter's maximum rating.
  3. Excessive Heat:

    • Verify that the load current is within the converter's specifications.
    • Add a heatsink or improve ventilation around the converter.
  4. High Output Noise:

    • Add filtering capacitors to the output.
    • Ensure proper grounding and minimize the length of connecting wires.
  5. Converter Not Starting:

    • Check for short circuits on the input or output.
    • Ensure the input voltage is stable and sufficient to power the converter.

FAQs

Q: Can I use a DC-DC converter to step up voltage?
A: Yes, a boost converter is designed to step up voltage. Ensure you select the correct type of DC-DC converter for your application.

Q: How do I calculate the efficiency of a DC-DC converter?
A: Efficiency is calculated as:
[ \text{Efficiency (%)} = \left( \frac{\text{Output Power}}{\text{Input Power}} \right) \times 100 ]
Measure the input and output voltage and current to determine power.

Q: Can I use a DC-DC converter with a battery?
A: Yes, DC-DC converters are commonly used with batteries to regulate voltage. Ensure the input voltage stays within the converter's range as the battery discharges.

Q: What happens if I exceed the maximum current rating?
A: Exceeding the current rating can cause overheating, reduced efficiency, or permanent damage to the converter. Always stay within the specified limits.
