How to Use SD Kart Okuyucu: Examples, Pinouts, and Specs

An SD card reader is a device that allows for the reading and writing of data to and from SD (Secure Digital) memory cards. These memory cards are commonly used for storage in cameras, smartphones, microcontrollers, and other electronic devices. The SD card reader serves as an interface between the SD card and a host device, such as a microcontroller or computer, enabling data transfer and storage operations.

• Data logging in microcontroller-based projects (e.g., Arduino, Raspberry Pi)
• Storing sensor data for IoT applications
• Reading and writing multimedia files (e.g., images, videos)
• Expanding storage for embedded systems
• Booting operating systems on single-board computers

Below are the key technical details of a typical SD card reader module:

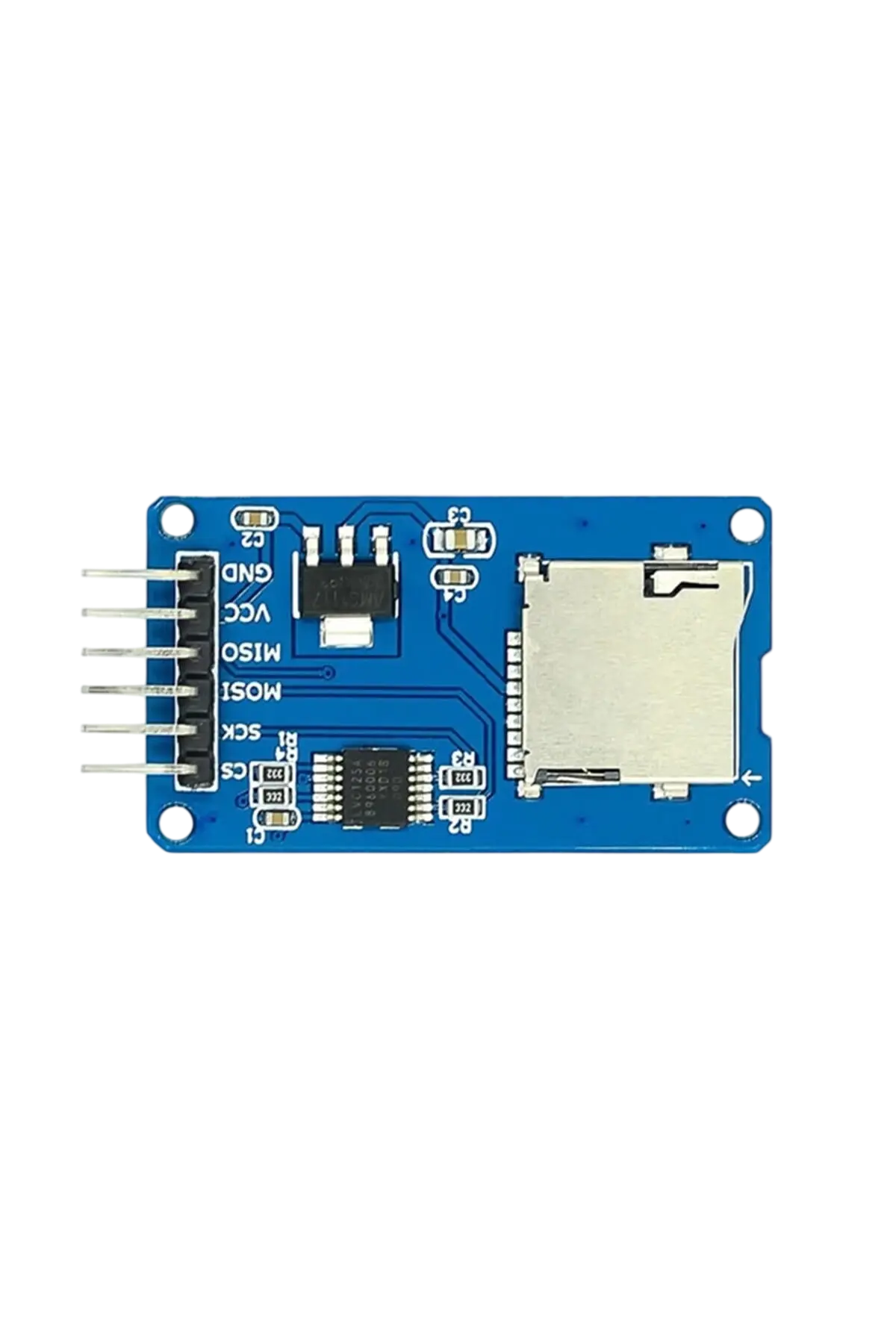

The SD card reader module typically has the following pin configuration:

1. Power the Module: Connect the VCC pin to a 3.3V or 5V power source (check your module's specifications) and the GND pin to ground.
2. Connect SPI Pins: Connect the MISO, MOSI, SCK, and CS pins to the corresponding SPI pins on your microcontroller.
3. Insert SD Card: Ensure the SD card is properly formatted (e.g., FAT16 or FAT32) and insert it into the SD card slot.
4. Initialize the SD Card: Use a library or firmware to initialize the SD card and verify communication.
5. Read/Write Data: Use appropriate functions to read from or write to the SD card.

• Voltage Compatibility: Ensure the SD card reader module matches the voltage level of your microcontroller (3.3V or 5V).
• Formatting: Format the SD card to FAT16 or FAT32 for compatibility with most libraries.
• Pull-Up Resistors: Some modules may require external pull-up resistors on the SPI lines for stable communication.
• Avoid Hot-Swapping: Do not insert or remove the SD card while the module is powered to prevent damage.

Below is an example of how to use the SD card reader with an Arduino UNO to write and read data:

#include <SPI.h>
#include <SD.h>

// Define the chip select pin for the SD card module
const int chipSelect = 10;

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
  while (!Serial) {
    ; // Wait for the serial port to connect
  }

  Serial.println("Initializing SD card...");

  // Check if the SD card is initialized successfully
  if (!SD.begin(chipSelect)) {
    Serial.println("SD card initialization failed!");
    return;
  }
  Serial.println("SD card initialized successfully.");

  // Create and write to a file on the SD card
  File dataFile = SD.open("example.txt", FILE_WRITE);
  if (dataFile) {
    dataFile.println("Hello, SD card!");
    dataFile.close();
    Serial.println("Data written to example.txt.");
  } else {
    Serial.println("Error opening example.txt for writing.");
  }
}

void loop() {
  // Open the file for reading
  File dataFile = SD.open("example.txt");
  if (dataFile) {
    Serial.println("Reading from example.txt:");
    while (dataFile.available()) {
      // Print each character from the file to the serial monitor
      Serial.write(dataFile.read());
    }
    dataFile.close();
  } else {
    Serial.println("Error opening example.txt for reading.");
  }

  delay(5000); // Wait 5 seconds before reading again
}

1. SD Card Initialization Fails

   • Cause: Incorrect wiring or incompatible SD card format.
   • Solution: Double-check the wiring and ensure the SD card is formatted to FAT16 or FAT32.

2. Data Corruption

   • Cause: Removing the SD card while the module is powered.
   • Solution: Always power down the module before removing the SD card.

3. File Not Found

   • Cause: Incorrect file name or path.
   • Solution: Ensure the file name matches exactly, including case sensitivity.

4. Slow Data Transfer

   • Cause: Low SPI clock speed or large file size.
   • Solution: Optimize the SPI clock speed and use smaller file sizes if possible.

Q: Can I use a microSD card with this module?
A: Yes, you can use a microSD card with an adapter to fit the standard SD card slot.

Q: What is the maximum SD card size supported?
A: Most modules support up to 32GB SDHC cards. Check your module's specifications for exact limits.

Q: Can I use this module with a 3.3V microcontroller?
A: Yes, but ensure the module is designed for 3.3V operation or includes level shifters for compatibility.

Q: Why is my SD card reader not detected by the Arduino?
A: Verify the wiring, ensure the CS pin is correctly defined in your code, and check the SD card format.
