How to Use ESP32 LOLIN D32 Pro V2.0.0: Examples, Pinouts, and Specs

Introduction

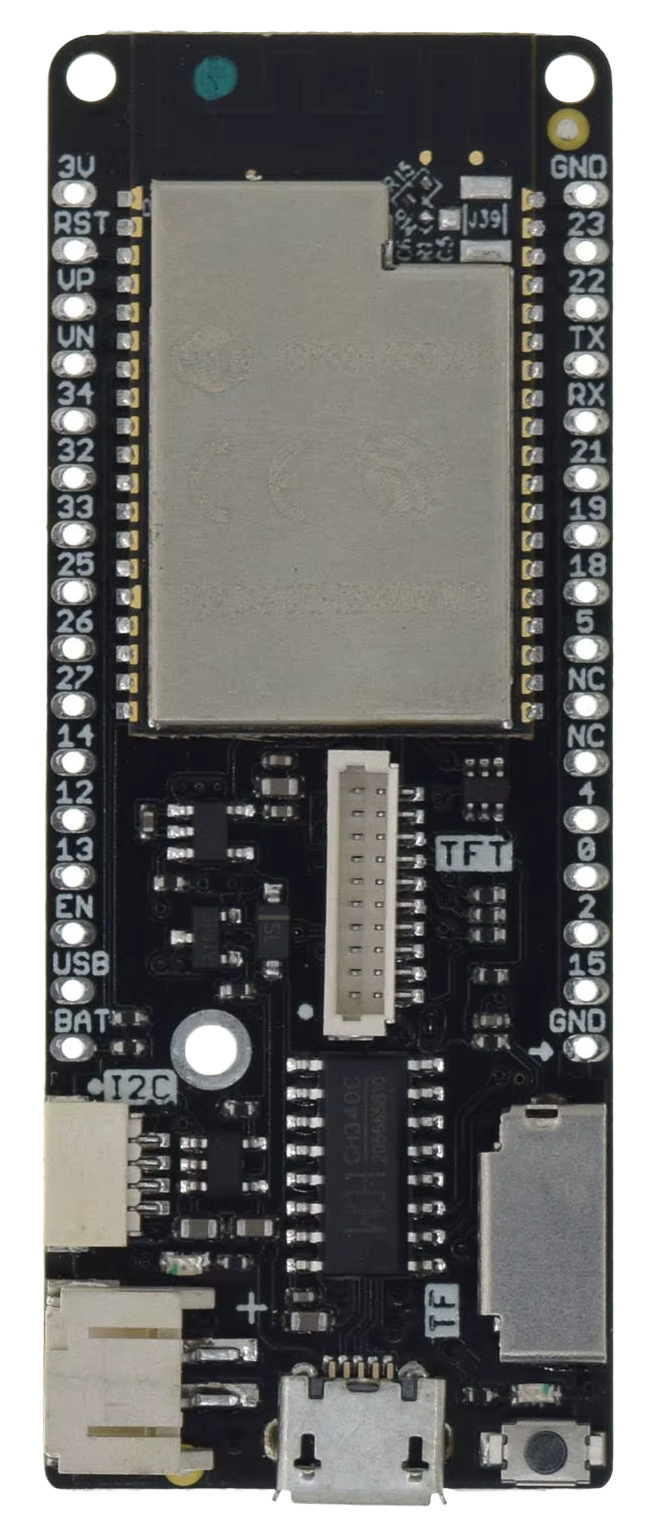

The ESP32 LOLIN D32 Pro V2.0.0 is a versatile development board built around the powerful ESP32 chip. It offers dual-mode Wi-Fi and Bluetooth connectivity, making it an excellent choice for Internet of Things (IoT) applications. With its multiple GPIO pins, onboard flash memory, and support for various sensors and modules, this board is ideal for prototyping and deploying smart devices, home automation systems, and wireless communication projects.

Explore Projects Built with ESP32 LOLIN D32 Pro V2.0.0

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

ESP32-Based Sensor Monitoring System with OLED Display and E-Stop

This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.

Open Project in Cirkit Designer

ESP32-Based Infrared Thermometer with I2C LCD Display

This circuit features an ESP32 microcontroller powered by a 18650 Li-Ion battery, with a TP4056 module for charging the battery via a USB plug. The ESP32 reads temperature data from an MLX90614 infrared temperature sensor and displays it on an I2C LCD 16x2 screen. The ESP32, MLX90614 sensor, and LCD screen are connected via I2C communication lines (SCL, SDA), and the circuit is designed to measure and display ambient and object temperatures.

Open Project in Cirkit Designer

ESP32-Based LoRa Communication Device with OLED Display

This circuit features an ESP32 microcontroller connected to a 0.96" OLED display and a LoRa Ra-02 SX1278 module for wireless communication. The ESP32 facilitates communication with the OLED display via I2C (SDA and SCK lines) and with the LoRa module via SPI (MISO, MOSI, SCK, NSS lines) and GPIO for control signals (DI00, DI01, RST). The circuit is designed for applications requiring wireless data transmission and visual data display.

Open Project in Cirkit Designer

ESP32 Mini-Based Smart Timekeeper with OLED Display and Battery Charging

This circuit features an ESP32 Mini microcontroller as its core, interfaced with a 0.96" OLED display and a DS3231 Real-Time Clock (RTC) for timekeeping and display purposes. A TP4056 module is used for charging a LiPoly battery, which powers the system through an LM2596 voltage regulator and an AMS1117-3.3 voltage regulator to step down and stabilize the voltage for the ESP32 and peripherals. User inputs are captured through a rotary potentiometer and a red pushbutton, which are connected to the ESP32's GPIOs for control and reset functionality.

Open Project in Cirkit Designer

Common Applications and Use Cases

• IoT devices and smart home systems
• Wireless sensor networks
• Data logging and monitoring
• Robotics and automation
• Wearable technology
• Prototyping for Wi-Fi and Bluetooth-enabled devices

Technical Specifications

The ESP32 LOLIN D32 Pro V2.0.0 is packed with features that make it a powerful and flexible development board. Below are its key technical details:

Key Technical Details

Pin Configuration and Descriptions

The ESP32 LOLIN D32 Pro V2.0.0 features a variety of pins for different functionalities. Below is the pinout description:

For a complete pinout diagram, refer to the official datasheet or pinout documentation.

Usage Instructions

How to Use the ESP32 LOLIN D32 Pro V2.0.0 in a Circuit

1. Powering the Board:

   • Connect the board to your computer via a micro-USB cable for power and programming.
   • Alternatively, supply 5V to the VIN pin for external power.

2. Programming the Board:

   • Install the ESP32 board package in the Arduino IDE or use the ESP-IDF framework.
   • Select "LOLIN D32 Pro" as the board in the Arduino IDE.
   • Connect the board to your computer and upload your code.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other modules.
   • Ensure that the voltage levels of connected devices are compatible with the 3.3V logic of the ESP32.

4. Wi-Fi and Bluetooth Setup:

   • Use the built-in libraries (e.g., WiFi.h and BluetoothSerial.h in Arduino) to configure wireless communication.

Important Considerations and Best Practices

• Voltage Levels: The GPIO pins operate at 3.3V. Avoid connecting 5V devices directly to the pins without a level shifter.
• Power Supply: Ensure a stable power supply, especially when using Wi-Fi or Bluetooth, as these features can draw significant current.
• Boot Mode: To enter bootloader mode for programming, hold down the BOOT button while pressing the RESET button.
• Heat Management: The ESP32 chip can get warm during operation. Ensure proper ventilation if used in enclosed spaces.

Example Code for Arduino UNO Integration

Below is an example of how to connect the ESP32 LOLIN D32 Pro to a Wi-Fi network and control an LED:

#include <WiFi.h> // Include the Wi-Fi library

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

const int ledPin = 2; // GPIO2 is connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set GPIO2 as an output
  Serial.begin(115200);    // Start serial communication

  // Connect to Wi-Fi
  Serial.print("Connecting to Wi-Fi");
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP());
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

1. The board is not detected by the computer:

   • Ensure the USB cable is functional and supports data transfer.
   • Install the correct USB-to-serial driver for the ESP32.

2. Wi-Fi connection fails:

   • Double-check the SSID and password.
   • Ensure the router is within range and supports 2.4 GHz Wi-Fi (ESP32 does not support 5 GHz).

3. Code upload fails:

   • Hold the BOOT button while uploading the code.
   • Verify that the correct board and COM port are selected in the Arduino IDE.

4. GPIO pins not working as expected:

   • Check if the pin is being used for another function (e.g., ADC, touch).
   • Avoid using GPIO6-GPIO11 as they are connected to the onboard flash memory.

FAQs

Q: Can I power the board with a battery?
A: Yes, you can connect a LiPo battery to the JST connector on the board. Ensure the battery voltage is compatible.

Q: Does the board support OTA updates?
A: Yes, the ESP32 supports Over-The-Air (OTA) updates. Use the ArduinoOTA library for implementation.

Q: Can I use the board with MicroPython?
A: Absolutely! The ESP32 is compatible with MicroPython. Flash the MicroPython firmware to get started.

Q: What is the maximum current draw of the board?
A: The ESP32 can draw up to 500 mA during peak operation, especially when using Wi-Fi or Bluetooth. Ensure your power source can handle this.

This documentation provides a comprehensive guide to using the ESP32 LOLIN D32 Pro V2.0.0. For further details, refer to the official datasheet or community forums.
