Introduction

A trimmer potentiometer, commonly referred to as a trimpot, is a small adjustable resistor designed for fine-tuning circuit parameters. It is typically used in applications where precise calibration or adjustment of resistance is required, such as setting bias points, adjusting gain, or calibrating sensors. Trimpots are compact, cost-effective, and available in various resistance values and configurations to suit different circuit requirements.

Explore Projects Built with TRIMPOT

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered Adjustable Piezo Buzzer Circuit
Image of EXP-14 E : A project utilizing TRIMPOT in a practical application
This circuit consists of a trimmer potentiometer, a piezo buzzer, and a power source. The trimmer potentiometer is used to adjust the voltage supplied to the piezo buzzer, allowing for control over the buzzer's sound output.
Cirkit Designer LogoOpen Project in Cirkit Designer

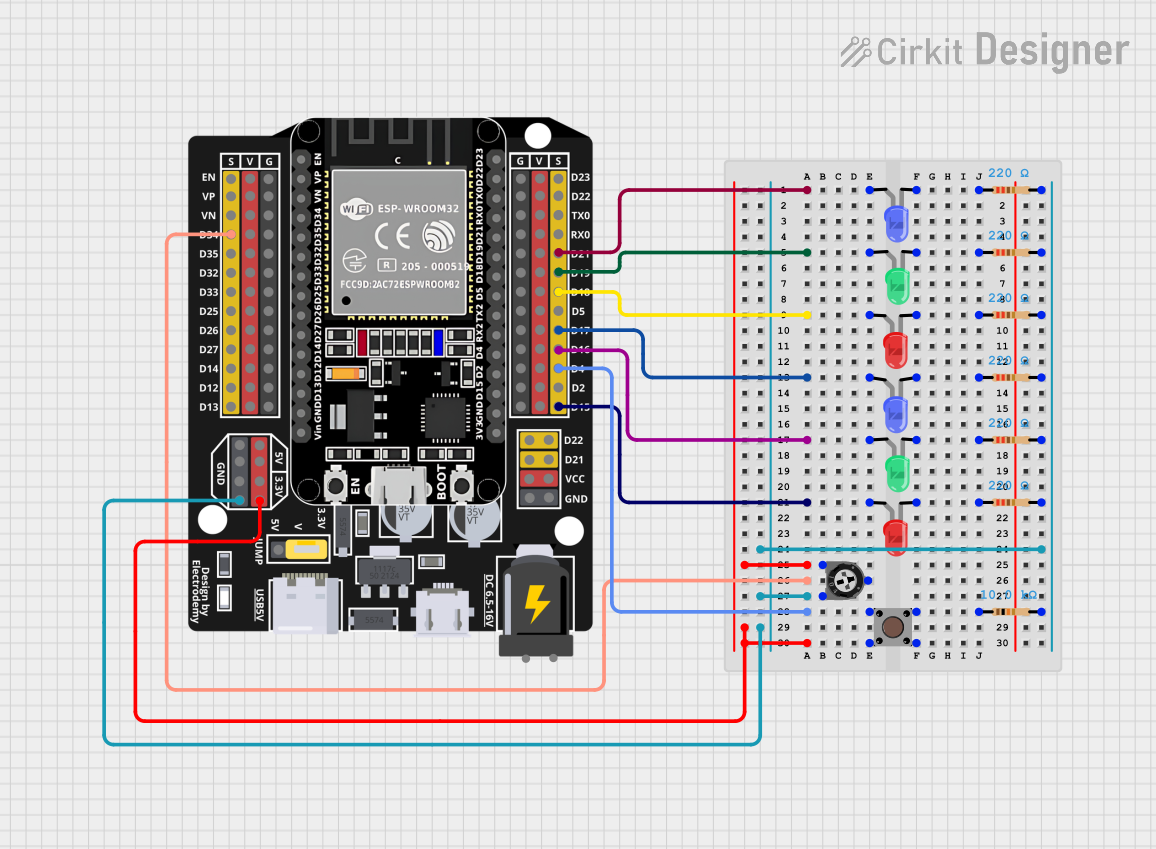

ESP32-Controlled Multi-Color LED Array with Adjustable Brightness and Pushbutton Interaction
Image of mikrokontroller: A project utilizing TRIMPOT in a practical application
This circuit features an ESP32 microcontroller connected to a series of LEDs (red, green, and blue) through individual resistors, which likely serve as current-limiting resistors for the LEDs. A trimmer potentiometer is connected to one of the ESP32's analog inputs, allowing for variable resistance input, and a pushbutton is interfaced with another digital input, potentially for user interaction. The circuit is designed for controlling LED states and reading analog values from the potentiometer, with the capability to respond to button presses.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Analog Input with Trimmer Potentiometer
Image of Potenciometer: A project utilizing TRIMPOT in a practical application
This circuit features an Arduino UNO connected to a trimmer potentiometer. The potentiometer's adjustable output is fed into the Arduino's analog input A0 for voltage measurement, enabling the microcontroller to monitor or control an analog parameter.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32E-Powered Audio Recorder with SoftPot Interface and Playback
Image of Player Project: A project utilizing TRIMPOT in a practical application
This circuit is a multi-functional device controlled by an ESP32E microcontroller, featuring audio input via an electret microphone amplifier, audio output through a speaker driven by an amplifier, and user interaction through pushbuttons and LEDs. It also includes a SoftPot potentiometer for analog input and a Micro SD Card Module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with TRIMPOT

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of EXP-14 E : A project utilizing TRIMPOT in a practical application
Battery-Powered Adjustable Piezo Buzzer Circuit
This circuit consists of a trimmer potentiometer, a piezo buzzer, and a power source. The trimmer potentiometer is used to adjust the voltage supplied to the piezo buzzer, allowing for control over the buzzer's sound output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mikrokontroller: A project utilizing TRIMPOT in a practical application
ESP32-Controlled Multi-Color LED Array with Adjustable Brightness and Pushbutton Interaction
This circuit features an ESP32 microcontroller connected to a series of LEDs (red, green, and blue) through individual resistors, which likely serve as current-limiting resistors for the LEDs. A trimmer potentiometer is connected to one of the ESP32's analog inputs, allowing for variable resistance input, and a pushbutton is interfaced with another digital input, potentially for user interaction. The circuit is designed for controlling LED states and reading analog values from the potentiometer, with the capability to respond to button presses.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Potenciometer: A project utilizing TRIMPOT in a practical application
Arduino UNO Analog Input with Trimmer Potentiometer
This circuit features an Arduino UNO connected to a trimmer potentiometer. The potentiometer's adjustable output is fed into the Arduino's analog input A0 for voltage measurement, enabling the microcontroller to monitor or control an analog parameter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Player Project: A project utilizing TRIMPOT in a practical application
ESP32E-Powered Audio Recorder with SoftPot Interface and Playback
This circuit is a multi-functional device controlled by an ESP32E microcontroller, featuring audio input via an electret microphone amplifier, audio output through a speaker driven by an amplifier, and user interaction through pushbuttons and LEDs. It also includes a SoftPot potentiometer for analog input and a Micro SD Card Module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Calibration of analog circuits (e.g., amplifiers, sensors)
  • Setting reference voltages in voltage divider circuits
  • Adjusting gain in operational amplifier circuits
  • Fine-tuning frequency in oscillators
  • Biasing transistors or other active components

Technical Specifications

Below are the general technical specifications for a typical trimpot. Note that specific values may vary depending on the model and manufacturer.

Parameter Specification
Resistance Range 100 Ω to 1 MΩ (varies by model)
Tolerance ±10% to ±20%
Power Rating 0.1 W to 0.5 W
Adjustment Type Single-turn or multi-turn
Operating Temperature -55°C to +125°C
Mounting Type Through-hole or surface-mount

Pin Configuration and Descriptions

A trimpot typically has three pins, as described below:

Pin Description
Pin 1 One end of the resistive track
Pin 2 Wiper (adjustable output, connected to the slider)
Pin 3 The other end of the resistive track

The resistance between Pin 1 and Pin 3 is fixed, while the resistance between Pin 1 and Pin 2 (or Pin 2 and Pin 3) varies depending on the wiper's position.

Usage Instructions

How to Use the Trimpot in a Circuit

  1. Determine the Required Resistance Range: Select a trimpot with a resistance value that matches your circuit's requirements.
  2. Connect the Pins:
    • Connect Pin 1 and Pin 3 across the circuit where the fixed resistance is needed.
    • Use Pin 2 (the wiper) to obtain the adjustable resistance.
  3. Adjust the Wiper:
    • Use a small screwdriver to rotate the adjustment screw on the trimpot.
    • Turning the screw changes the position of the wiper, thereby varying the resistance.
  4. Test and Calibrate:
    • Measure the output resistance using a multimeter.
    • Fine-tune the adjustment until the desired resistance or circuit behavior is achieved.

Important Considerations and Best Practices

  • Power Rating: Ensure the trimpot's power rating is not exceeded to avoid damage.
  • Mechanical Stress: Avoid applying excessive force when adjusting the wiper to prevent mechanical failure.
  • Stability: For applications requiring high stability, use multi-turn trimpots for finer adjustments.
  • Mounting: Ensure proper soldering or placement to avoid loose connections.

Example: Using a Trimpot with an Arduino UNO

A trimpot can be used as a variable resistor to provide an analog input to an Arduino. Below is an example circuit and code:

Circuit Connection

  • Connect Pin 1 of the trimpot to the 5V pin on the Arduino.
  • Connect Pin 3 of the trimpot to the GND pin on the Arduino.
  • Connect Pin 2 (wiper) to an analog input pin (e.g., A0) on the Arduino.

Arduino Code

// Example code to read trimpot value and display it on the Serial Monitor

const int trimpotPin = A0; // Pin connected to the trimpot wiper

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  int trimpotValue = analogRead(trimpotPin); // Read analog value from trimpot
  float voltage = (trimpotValue / 1023.0) * 5.0; // Convert to voltage (0-5V)

  // Print the raw value and voltage to the Serial Monitor
  Serial.print("Trimpot Value: ");
  Serial.print(trimpotValue);
  Serial.print(" | Voltage: ");
  Serial.println(voltage);

  delay(500); // Wait for 500ms before the next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Change in Resistance:

    • Cause: The wiper (Pin 2) is not properly connected.
    • Solution: Check the connections and ensure the wiper pin is correctly wired.
  2. Trimpot Overheats:

    • Cause: Exceeding the power rating of the trimpot.
    • Solution: Use a trimpot with a higher power rating or reduce the current in the circuit.
  3. Inconsistent Adjustment:

    • Cause: Dust or debris inside the trimpot.
    • Solution: Replace the trimpot or clean it carefully if possible.
  4. Mechanical Damage:

    • Cause: Excessive force applied during adjustment.
    • Solution: Use a proper screwdriver and avoid overtightening.

FAQs

Q: Can a trimpot be used as a permanent resistor?
A: While trimpots are designed for calibration and adjustment, they can be left in a circuit permanently. However, for long-term stability, consider replacing the trimpot with a fixed resistor once the desired resistance is determined.

Q: What is the difference between single-turn and multi-turn trimpots?
A: Single-turn trimpots allow for quick adjustments but offer less precision. Multi-turn trimpots provide finer control over resistance adjustments, making them ideal for applications requiring high accuracy.

Q: How do I choose the correct trimpot for my circuit?
A: Consider the required resistance range, power rating, adjustment precision (single-turn vs. multi-turn), and mounting type (through-hole or surface-mount) when selecting a trimpot.
