How to Use ESP32: Examples, Pinouts, and Specs

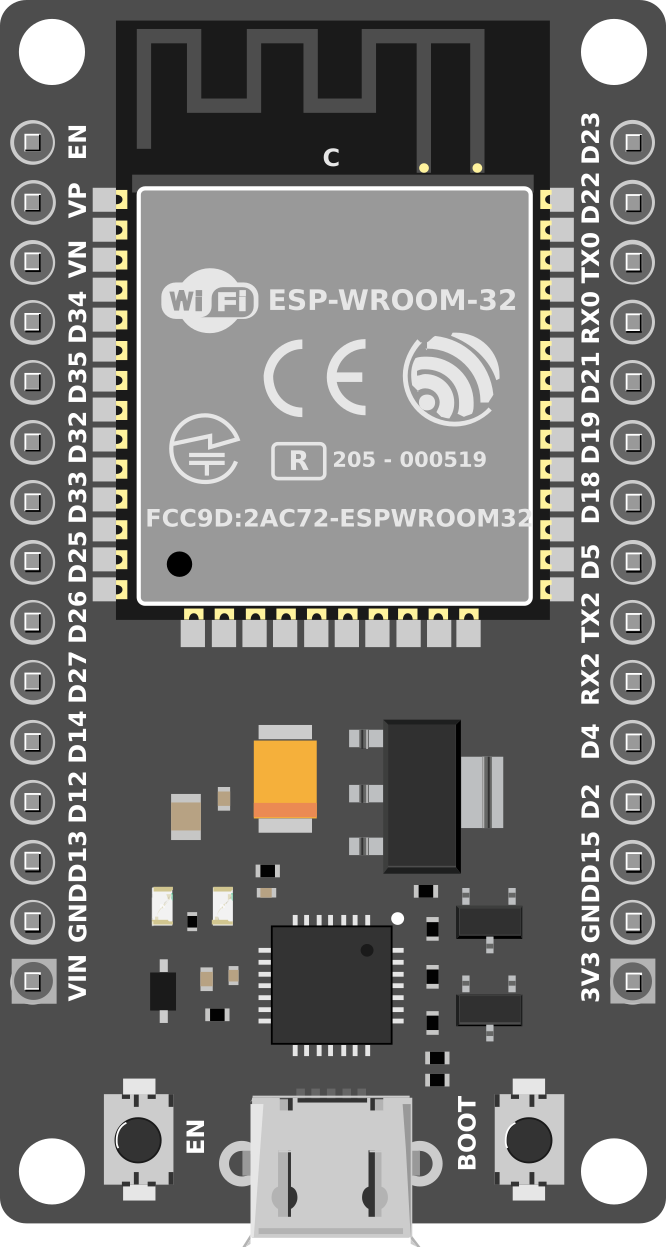

Image of ESP32
Cirkit Designer LogoDesign with ESP32 in Cirkit Designer

Introduction

The ESP32 is a powerful, low-cost microcontroller with integrated Wi-Fi and Bluetooth capabilities, making it an ideal choice for Internet of Things (IoT) applications and embedded systems. Developed by Espressif Systems, the ESP32 is widely used in smart home devices, wearable electronics, industrial automation, and more. Its dual-core processor, extensive GPIO options, and support for multiple communication protocols make it a versatile solution for a wide range of projects.

Common applications include:

  • IoT devices such as smart plugs, sensors, and home automation systems
  • Wireless communication hubs and gateways
  • Wearable electronics and health monitoring devices
  • Robotics and automation systems
  • Prototyping and educational projects

Explore Projects Built with ESP32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
Image of MVP_design: A project utilizing ESP32 in a practical application
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based NTP Clock with DHT22 Temperature Sensor and WS2812 LED Matrix Display
Image of date time and temperature display : A project utilizing ESP32 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and an 8x8 WS2812 RGB LED matrix. The ESP32 reads temperature data from the DHT22 sensor and displays the current date, time, and temperature on the LED matrix, with date and time synchronized via NTP (Network Time Protocol). The ESP32 provides power to both the DHT22 and the LED matrix and communicates with the DHT22 via GPIO 4 and with the LED matrix via GPIO 5.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with Water Flow Sensing
Image of Water: A project utilizing ESP32 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
Image of flowchart 3D: A project utilizing ESP32 in a practical application
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of MVP_design: A project utilizing ESP32 in a practical application
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of date time and temperature display : A project utilizing ESP32 in a practical application
ESP32-Based NTP Clock with DHT22 Temperature Sensor and WS2812 LED Matrix Display
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and an 8x8 WS2812 RGB LED matrix. The ESP32 reads temperature data from the DHT22 sensor and displays the current date, time, and temperature on the LED matrix, with date and time synchronized via NTP (Network Time Protocol). The ESP32 provides power to both the DHT22 and the LED matrix and communicates with the DHT22 via GPIO 4 and with the LED matrix via GPIO 5.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Water: A project utilizing ESP32 in a practical application
ESP32-Based Environmental Monitoring System with Water Flow Sensing
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of flowchart 3D: A project utilizing ESP32 in a practical application
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

The ESP32 offers a rich set of features and capabilities. Below are its key technical specifications:

Specification Details
Microcontroller Xtensa® 32-bit LX6 dual-core processor (up to 240 MHz)
Flash Memory 4 MB (varies by module)
SRAM 520 KB
Wi-Fi 802.11 b/g/n (2.4 GHz)
Bluetooth Bluetooth 4.2 and BLE (Bluetooth Low Energy)
Operating Voltage 3.3 V
GPIO Pins Up to 34 GPIO pins (varies by module)
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM, ADC, DAC
ADC Resolution 12-bit (up to 18 channels)
DAC Resolution 8-bit (2 channels)
Power Consumption Ultra-low power consumption with multiple power-saving modes
Operating Temperature -40°C to +125°C

Pin Configuration and Descriptions

The ESP32 pinout varies depending on the module (e.g., ESP32-WROOM-32, ESP32-WROVER). Below is a general pin configuration for the ESP32-WROOM-32 module:

Pin Name Type Description
GPIO0 Input/Output Used for boot mode selection during startup
GPIO1 (TXD0) Output UART0 transmit pin
GPIO3 (RXD0) Input UART0 receive pin
GPIO2 Input/Output General-purpose I/O, often used for onboard LED
GPIO4 Input/Output General-purpose I/O
GPIO5 Input/Output General-purpose I/O
EN Input Chip enable pin (active high)
3V3 Power 3.3 V power supply input
GND Power Ground
VIN Power External power supply input (5 V)

For a complete pinout, refer to the datasheet of your specific ESP32 module.

Usage Instructions

How to Use the ESP32 in a Circuit

  1. Powering the ESP32:

    • The ESP32 operates at 3.3 V. If using an external power source, ensure it provides a stable 3.3 V.
    • If using a development board, you can power it via the USB port or the VIN pin (5 V input).
  2. Connecting Peripherals:

    • Use GPIO pins to connect sensors, actuators, or other peripherals.
    • Ensure the voltage levels of connected devices are compatible with the ESP32's 3.3 V logic.
  3. Programming the ESP32:

    • Install the Arduino IDE or ESP-IDF (Espressif IoT Development Framework).
    • Add the ESP32 board support package to the Arduino IDE.
    • Connect the ESP32 to your computer via USB and select the appropriate board and port in the IDE.
  4. Uploading Code:

    • Write your code in the Arduino IDE or ESP-IDF.
    • Compile and upload the code to the ESP32.
    • Monitor the serial output for debugging.

Important Considerations and Best Practices

  • Voltage Levels: Avoid applying voltages higher than 3.3 V to the GPIO pins to prevent damage.
  • Boot Mode: Ensure GPIO0 is pulled low during startup if you need to enter bootloader mode.
  • Power Supply: Use a stable power source to avoid unexpected resets or malfunctions.
  • Wi-Fi and Bluetooth: Avoid placing the ESP32 near metal objects or enclosures that may interfere with wireless signals.

Example Code for Arduino UNO Integration

Below is an example of using the ESP32 to read a temperature sensor and send the data via Wi-Fi:

#include <WiFi.h> // Include the Wi-Fi library

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  WiFi.begin(ssid, password); // Connect to Wi-Fi network

  Serial.print("Connecting to Wi-Fi");
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print("."); // Print dots while connecting
  }
  Serial.println("\nConnected to Wi-Fi");
}

void loop() {
  // Example: Read a sensor value (replace with actual sensor code)
  int sensorValue = analogRead(34); // Read from GPIO34 (ADC1 channel)
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue);

  delay(1000); // Wait for 1 second before reading again
}

Troubleshooting and FAQs

Common Issues

  1. ESP32 Not Connecting to Wi-Fi:

    • Ensure the SSID and password are correct.
    • Check if the Wi-Fi network is within range.
    • Verify that the router supports 2.4 GHz Wi-Fi (ESP32 does not support 5 GHz).
  2. Upload Fails or Timeout Errors:

    • Ensure the correct board and port are selected in the Arduino IDE.
    • Press and hold the "BOOT" button on the ESP32 while uploading the code.
  3. Random Resets or Instability:

    • Check the power supply for stability and sufficient current (at least 500 mA).
    • Avoid using long or thin wires for power connections.

FAQs

Q: Can the ESP32 operate on battery power?
A: Yes, the ESP32 can be powered by batteries. Use a 3.7 V LiPo battery with a voltage regulator to provide 3.3 V.

Q: How do I reset the ESP32?
A: Press the "EN" (enable) button on the development board to reset the ESP32.

Q: Can I use the ESP32 with 5 V logic devices?
A: No, the ESP32 uses 3.3 V logic. Use a level shifter to interface with 5 V devices.

Q: How do I update the ESP32 firmware?
A: Use the Espressif Flash Download Tool or the Arduino IDE to upload new firmware.

By following this documentation, you can effectively integrate the ESP32 into your projects and troubleshoot common issues.
