How to Use 1 Channel Relay 5V: Examples, Pinouts, and Specs

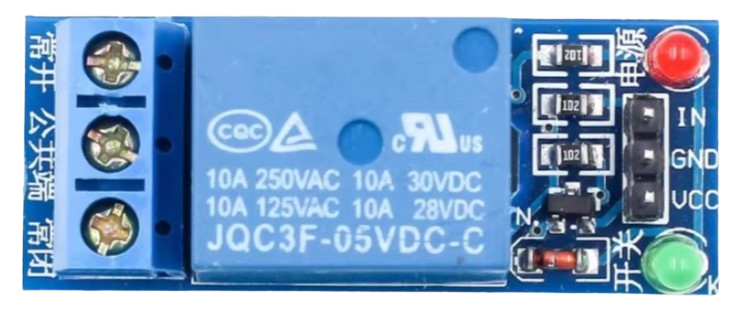

The 1 Channel Relay 5V is an electromechanical switch module that allows a low voltage control signal (e.g., from a microcontroller) to control a higher voltage circuit. This module is widely used in automation, home appliances, and control systems to switch devices such as lights, fans, motors, or other high-power loads. It operates at 5V, making it compatible with most microcontrollers, including Arduino and Raspberry Pi.

• Home automation systems (e.g., controlling lights or appliances)
• Industrial control systems
• Motor control
• IoT projects
• Security systems (e.g., activating alarms or locks)

Below are the key technical details of the 1 Channel Relay 5V module:

The 1 Channel Relay 5V module has the following pinout:

1. Power the Relay Module: Connect the VCC pin to a 5V power source and the GND pin to ground.
2. Connect the Control Signal: Connect the IN pin to a digital output pin of your microcontroller (e.g., Arduino).
3. Connect the Load:
   • Identify whether you want the load to be normally ON or OFF.
   • For a normally OFF configuration, connect the load between the NO (Normally Open) terminal and COM (Common) terminal.
   • For a normally ON configuration, connect the load between the NC (Normally Closed) terminal and COM terminal.
4. Control the Relay: Send a HIGH signal (5V) to the IN pin to activate the relay and switch the load. Send a LOW signal (0V) to deactivate the relay.

• Isolation: The relay module uses an optocoupler for isolation, ensuring that the control circuit is protected from high voltages on the load side.
• Power Supply: Ensure the power supply to the relay module is stable and matches the required 5V operating voltage.
• Load Ratings: Do not exceed the maximum load voltage (250V AC / 30V DC) or current (10A) to avoid damage to the relay.
• Flyback Diode: If controlling an inductive load (e.g., motor), use a flyback diode across the load to prevent voltage spikes.

Below is an example of how to connect and control the 1 Channel Relay 5V module using an Arduino UNO:

• Connect the relay module's VCC pin to the Arduino's 5V pin.
• Connect the relay module's GND pin to the Arduino's GND pin.
• Connect the relay module's IN pin to Arduino digital pin 7.
• Connect the load (e.g., a light bulb) to the NO and COM terminals of the relay.

// Define the relay control pin
const int relayPin = 7;

void setup() {
  // Set the relay pin as an output
  pinMode(relayPin, OUTPUT);

  // Ensure the relay is off at startup
  digitalWrite(relayPin, LOW);
}

void loop() {
  // Turn the relay ON (activate the load)
  digitalWrite(relayPin, HIGH);
  delay(5000); // Keep the relay ON for 5 seconds

  // Turn the relay OFF (deactivate the load)
  digitalWrite(relayPin, LOW);
  delay(5000); // Keep the relay OFF for 5 seconds
}

• Use proper insulation and wiring when working with high-voltage loads.
• Avoid touching the relay module when it is powered or connected to high-voltage circuits.
• Test the circuit with a low-power load before connecting high-power devices.

1. Relay Not Activating:

   • Ensure the VCC and GND pins are properly connected to a 5V power source.
   • Verify that the control signal (IN pin) is receiving a HIGH signal (3.3V to 5V).
   • Check for loose or faulty wiring.

2. Load Not Switching:

   • Confirm that the load is properly connected to the COM and NO/NC terminals.
   • Ensure the load does not exceed the relay's voltage or current ratings.
   • Test the relay with a multimeter to verify its functionality.

3. Relay Stuck in One State:

   • Check for mechanical damage or wear on the relay.
   • Ensure the control signal is toggling correctly between HIGH and LOW states.

Q: Can I use the relay module with a 3.3V microcontroller?
A: Yes, the relay module can be triggered with a 3.3V control signal, but ensure the VCC pin is still powered with 5V.

Q: Is the relay module safe for high-voltage applications?
A: Yes, the relay is designed for high-voltage applications up to 250V AC, but proper insulation and safety precautions must be followed.

Q: Can I control multiple relays with one Arduino?
A: Yes, you can control multiple relay modules by connecting each relay's IN pin to a separate digital output pin on the Arduino.

Q: Why is the relay making a clicking sound?
A: The clicking sound is normal and indicates the relay is switching states (ON/OFF).
