How to Use Raspberry Pi 5: Examples, Pinouts, and Specs

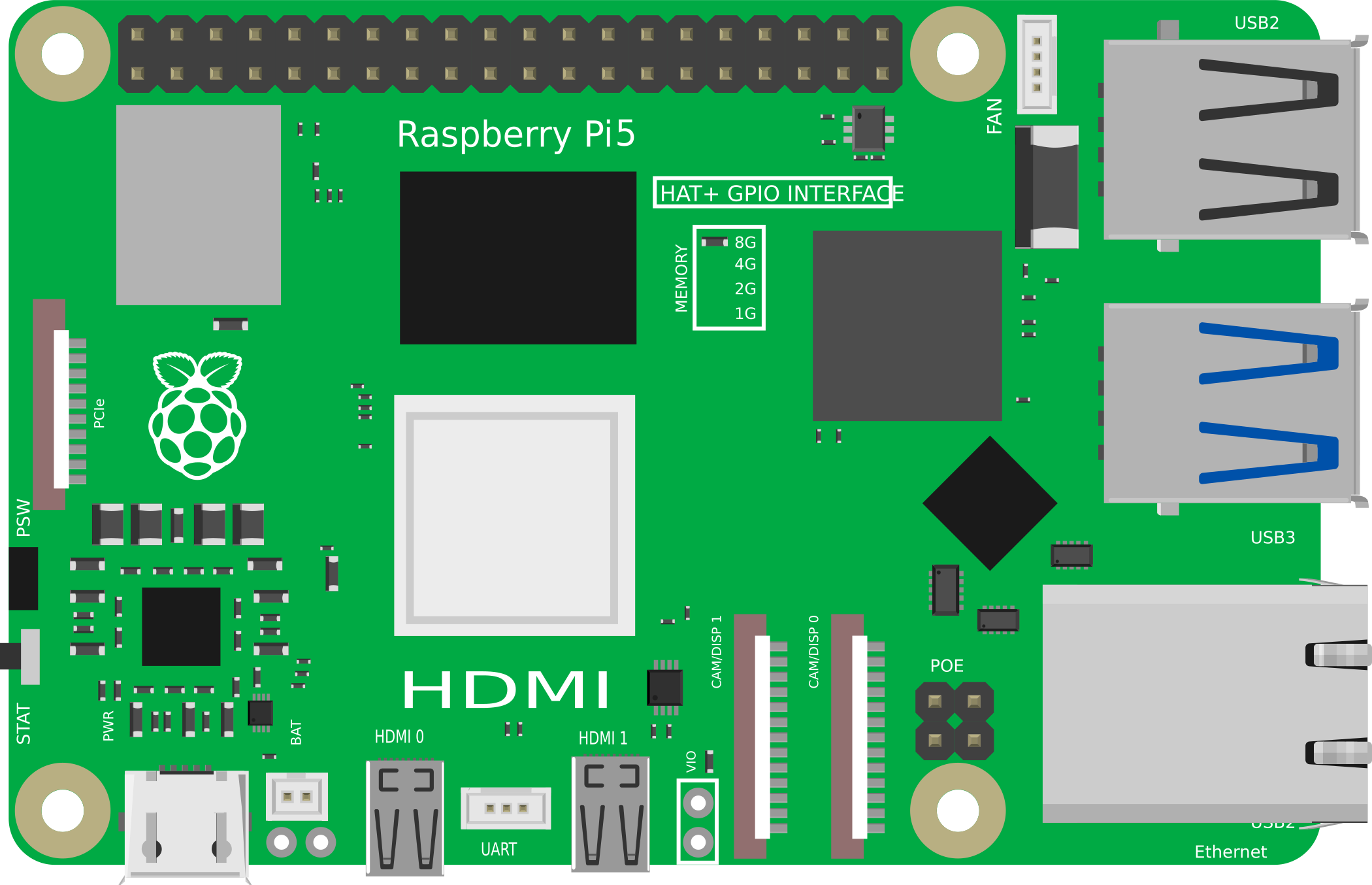

Image of Raspberry Pi 5
Cirkit Designer LogoDesign with Raspberry Pi 5 in Cirkit Designer

Introduction

The Raspberry Pi 5 is a compact, affordable single-board computer designed for a wide range of applications. It features a powerful quad-core processor, multiple USB ports, HDMI output, and GPIO pins, making it an excellent choice for programming, robotics, IoT, and other electronic projects. Its versatility and affordability have made it a popular tool for hobbyists, educators, and professionals alike.

Explore Projects Built with Raspberry Pi 5

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Raspberry Pi 5-Based Project with Custom Comments
Image of Raspberry Pi 5: A project utilizing Raspberry Pi 5 in a practical application
The circuit consists of a Raspberry Pi 5 with no additional electrical connections or code, suggesting it is either a placeholder for future development or a standalone component without any external interfacing in this configuration.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 5 Camera System
Image of Camera surveillance raspberry: A project utilizing Raspberry Pi 5 in a practical application
This circuit connects a Raspberry Pi 5 to a Raspberry Pi camera via the Camera 1 interface, enabling the Raspberry Pi to capture and process images or video from the camera.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 5 Smart Weather Station with GPS and AI Integration
Image of Senior Design: A project utilizing Raspberry Pi 5 in a practical application
This circuit integrates a Raspberry Pi 5 with various peripherals including an 8MP 3D stereo camera, an AI Hat, a BMP388 sensor, a 16x2 I2C LCD, and an Adafruit Ultimate GPS module. The Raspberry Pi serves as the central processing unit, interfacing with the camera for image capture, the AI Hat for AI processing, the BMP388 for environmental sensing, the LCD for display, and the GPS module for location tracking, with a USB Serial TTL for serial communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 5 Smart Sensor Hub with OLED Display and Camera
Image of dash cam: A project utilizing Raspberry Pi 5 in a practical application
This circuit integrates a Raspberry Pi 5 with various peripherals including an OV7670 camera, a BMI160 accelerometer/gyro sensor, and a 2.42 inch OLED display. It also includes a red LED and a breadboard power supply module, enabling the Raspberry Pi to interface with the sensors and display for data acquisition and visualization.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Raspberry Pi 5

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Raspberry Pi 5: A project utilizing Raspberry Pi 5 in a practical application
Raspberry Pi 5-Based Project with Custom Comments
The circuit consists of a Raspberry Pi 5 with no additional electrical connections or code, suggesting it is either a placeholder for future development or a standalone component without any external interfacing in this configuration.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Camera surveillance raspberry: A project utilizing Raspberry Pi 5 in a practical application
Raspberry Pi 5 Camera System
This circuit connects a Raspberry Pi 5 to a Raspberry Pi camera via the Camera 1 interface, enabling the Raspberry Pi to capture and process images or video from the camera.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Senior Design: A project utilizing Raspberry Pi 5 in a practical application
Raspberry Pi 5 Smart Weather Station with GPS and AI Integration
This circuit integrates a Raspberry Pi 5 with various peripherals including an 8MP 3D stereo camera, an AI Hat, a BMP388 sensor, a 16x2 I2C LCD, and an Adafruit Ultimate GPS module. The Raspberry Pi serves as the central processing unit, interfacing with the camera for image capture, the AI Hat for AI processing, the BMP388 for environmental sensing, the LCD for display, and the GPS module for location tracking, with a USB Serial TTL for serial communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of dash cam: A project utilizing Raspberry Pi 5 in a practical application
Raspberry Pi 5 Smart Sensor Hub with OLED Display and Camera
This circuit integrates a Raspberry Pi 5 with various peripherals including an OV7670 camera, a BMI160 accelerometer/gyro sensor, and a 2.42 inch OLED display. It also includes a red LED and a breadboard power supply module, enabling the Raspberry Pi to interface with the sensors and display for data acquisition and visualization.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Programming and Software Development: Ideal for learning programming languages like Python, Java, and C++.
  • IoT Projects: Used to create smart home devices, sensors, and automation systems.
  • Robotics: Serves as the brain for robots, enabling control and data processing.
  • Media Centers: Can be configured as a media server or streaming device.
  • Educational Tools: Widely used in schools and universities for teaching computing and electronics.
  • Prototyping: Perfect for testing and developing hardware and software solutions.

Technical Specifications

The Raspberry Pi 5 offers significant improvements over its predecessors, providing enhanced performance and connectivity options.

Key Technical Details

Specification Details
Processor Quad-core ARM Cortex-A76, 2.4 GHz
GPU VideoCore VII
RAM Options 4GB, 8GB, or 16GB LPDDR4X
Storage MicroSD card slot, USB 3.0 boot support
USB Ports 2x USB 3.0, 2x USB 2.0
HDMI Output 2x Micro HDMI (4K@60Hz support)
GPIO Pins 40-pin header
Networking Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.2
Power Supply USB-C, 5V/3A
Dimensions 85.6mm x 56.5mm x 17mm

Pin Configuration and Descriptions

The Raspberry Pi 5 features a 40-pin GPIO header for interfacing with external components. Below is the pinout:

Pin Number Pin Name Function
1 3.3V Power Power supply
2 5V Power Power supply
3 GPIO2 (SDA1) I2C Data
4 5V Power Power supply
5 GPIO3 (SCL1) I2C Clock
6 Ground Ground
7 GPIO4 General-purpose I/O
8 GPIO14 (TXD) UART Transmit
9 Ground Ground
10 GPIO15 (RXD) UART Receive
... ... ...
39 Ground Ground
40 GPIO21 General-purpose I/O

For a complete GPIO pinout, refer to the official Raspberry Pi documentation.

Usage Instructions

How to Use the Raspberry Pi 5 in a Circuit

  1. Powering the Raspberry Pi: Use a 5V/3A USB-C power adapter to power the board.
  2. Connecting Peripherals: Attach a monitor via the Micro HDMI ports, a keyboard and mouse via USB ports, and a microSD card with the operating system installed.
  3. Using GPIO Pins: Connect external components like LEDs, sensors, or motors to the GPIO pins. Use appropriate resistors and circuits to avoid damaging the board.
  4. Networking: Connect to the internet via Wi-Fi 6 or Gigabit Ethernet for remote access and updates.

Important Considerations and Best Practices

  • Static Protection: Handle the board with care to avoid static discharge, which can damage components.
  • Cooling: Use a heatsink or fan for cooling during intensive tasks to prevent overheating.
  • Power Supply: Ensure the power supply meets the required specifications (5V/3A) to avoid instability.
  • GPIO Safety: Do not exceed the voltage and current limits of the GPIO pins (3.3V logic level).

Example: Blinking an LED with GPIO and Python

The following example demonstrates how to blink an LED connected to GPIO pin 17 using Python.

Circuit Setup

  • Connect the positive leg of the LED to GPIO pin 17.
  • Connect the negative leg of the LED to a 330-ohm resistor, and then to a ground pin.

Code Example


Import the GPIO library and time module

import RPi.GPIO as GPIO import time

Set the GPIO mode to BCM (Broadcom pin numbering)

GPIO.setmode(GPIO.BCM)

Define the GPIO pin for the LED

LED_PIN = 17

Set up the LED pin as an output

GPIO.setup(LED_PIN, GPIO.OUT)

try: while True: GPIO.output(LED_PIN, GPIO.HIGH) # Turn the LED on time.sleep(1) # Wait for 1 second GPIO.output(LED_PIN, GPIO.LOW) # Turn the LED off time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings on exit GPIO.cleanup()


Troubleshooting and FAQs

Common Issues and Solutions

  1. The Raspberry Pi does not boot:

    • Ensure the microSD card is properly inserted and contains a valid operating system image.
    • Verify the power supply meets the required specifications (5V/3A).
    • Check for any loose connections.
  2. Overheating:

    • Use a heatsink or fan to cool the board during intensive tasks.
    • Ensure proper ventilation around the Raspberry Pi.
  3. GPIO pins not working:

    • Double-check the pin connections and ensure the correct pin numbering is used in the code.
    • Verify that the GPIO pins are not damaged or shorted.
  4. No display on the monitor:

    • Confirm the HDMI cable is securely connected to the Micro HDMI port.
    • Ensure the monitor is powered on and set to the correct input source.

FAQs

  • Can I power the Raspberry Pi 5 via GPIO pins? Yes, you can power the board via the 5V and GND GPIO pins, but this is not recommended as it bypasses the onboard power management.

  • What operating systems are supported? The Raspberry Pi 5 supports Raspberry Pi OS, Ubuntu, and other Linux-based distributions.

  • Can I use the Raspberry Pi 5 for AI and machine learning? Yes, the Raspberry Pi 5's powerful processor and GPU make it suitable for lightweight AI and machine learning tasks.

  • Is the Raspberry Pi 5 backward compatible with older accessories? Most accessories designed for previous Raspberry Pi models, such as cases and HATs, are compatible with the Raspberry Pi 5, but verify compatibility before use.
