How to Use LED: Two Pin (Orange): Examples, Pinouts, and Specs

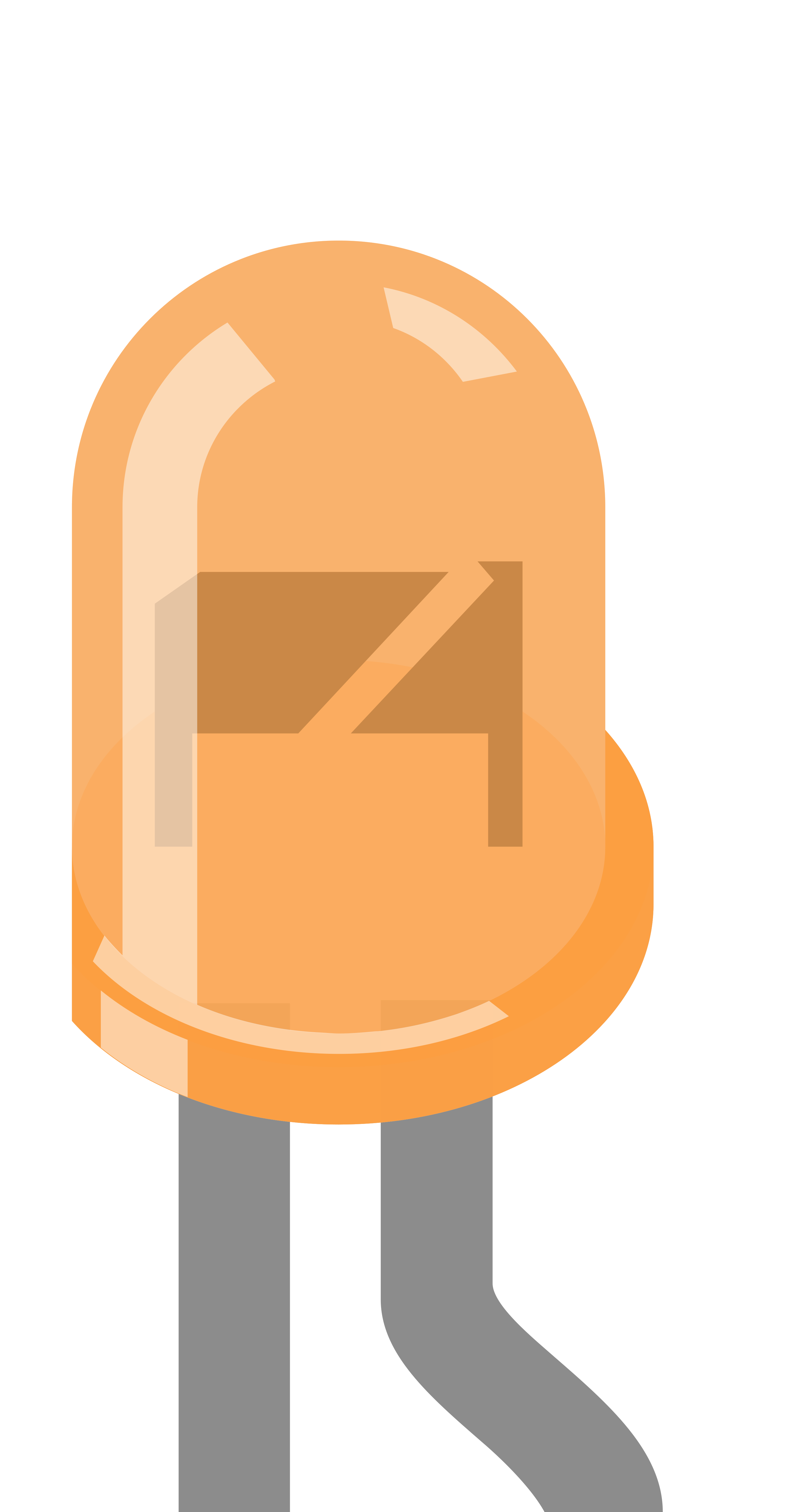

A light-emitting diode (LED) is a semiconductor device that emits light when an electric current flows through it. The two-pin orange LED is a versatile component commonly used for indicating power, status, or activity in electronic circuits. Its warm orange glow makes it ideal for displays, indicators, and decorative lighting applications. This LED is energy-efficient, compact, and easy to integrate into various projects.

• Power and status indicators in electronic devices
• Signal and activity indicators in circuits
• Decorative lighting and displays
• Educational and hobbyist projects

Below are the key technical details for the two-pin orange LED:

The two-pin orange LED has the following pin configuration:

1. Determine the Resistor Value: To prevent damage to the LED, always use a current-limiting resistor in series with it. The resistor value can be calculated using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ]

   • (V_{supply}): Supply voltage
   • (V_f): Forward voltage of the LED (1.8V to 2.2V)
   • (I_f): Desired forward current (typically 20mA)

   For example, if (V_{supply} = 5V) and (V_f = 2V), the resistor value is: [ R = \frac{5V - 2V}{0.02A} = 150\Omega ]

2. Connect the LED:

   • Connect the anode (longer pin) to the positive voltage through the resistor.
   • Connect the cathode (shorter pin) to ground.

3. Test the Circuit: Power the circuit and observe the orange glow from the LED.

• Polarity: LEDs are polarized components. Reversing the polarity may prevent the LED from lighting up or damage it.
• Current Limiting: Always use a resistor to limit the current through the LED. Exceeding the maximum current rating can permanently damage the LED.
• Heat Management: While LEDs are efficient, excessive current can cause heat buildup. Ensure proper current regulation to avoid overheating.

The orange LED can be easily connected to an Arduino UNO for various projects. Below is an example of how to blink the LED using Arduino:

• Connect the anode of the LED to digital pin 13 on the Arduino through a 220Ω resistor.
• Connect the cathode of the LED to the Arduino's GND pin.

// Blink an orange LED connected to pin 13
// The LED will turn on for 1 second, then off for 1 second

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. LED Does Not Light Up:

   • Cause: Incorrect polarity.
   • Solution: Ensure the anode is connected to the positive voltage and the cathode to ground.

2. LED is Dim:

   • Cause: Resistor value is too high.
   • Solution: Recalculate the resistor value to allow more current (but within the LED's limits).

3. LED Burns Out:

   • Cause: No current-limiting resistor or excessive current.
   • Solution: Always use a resistor to limit the current to 20mA.

4. Flickering LED:

   • Cause: Unstable power supply or loose connections.
   • Solution: Check the power source and ensure all connections are secure.

Q: Can I connect the LED directly to a 3.3V or 5V power source?
A: No, you must use a current-limiting resistor to prevent excessive current from damaging the LED.

Q: What happens if I reverse the polarity of the LED?
A: The LED will not light up, but it typically won't be damaged unless reverse voltage exceeds its maximum rating.

Q: Can I use the LED with a PWM signal?
A: Yes, LEDs work well with PWM (Pulse Width Modulation) for brightness control. Ensure the current is limited appropriately.

Q: How do I know the polarity of the LED if the pins are cut?
A: Look for a flat edge on the LED casing near the cathode or check the internal structure (the larger internal element is the cathode).

By following this documentation, you can effectively use the two-pin orange LED in your electronic projects!
