How to Use 6000mah power bank: Examples, Pinouts, and Specs

The 6000mAh Power Bank by Anker is a portable battery storage device designed to provide reliable power on the go. With a capacity of 6000mAh, it is capable of charging a wide range of electronic devices, including smartphones, tablets, smartwatches, and other USB-powered gadgets. Its compact design and lightweight build make it an ideal companion for travel, outdoor activities, and emergency power needs.

• Charging smartphones and tablets during travel or commutes.
• Providing backup power during power outages or emergencies.
• Powering small USB devices such as Bluetooth headphones, fitness trackers, or portable fans.
• Supporting outdoor activities like camping or hiking where access to power is limited.

The following table outlines the key technical details of the 6000mAh Power Bank:

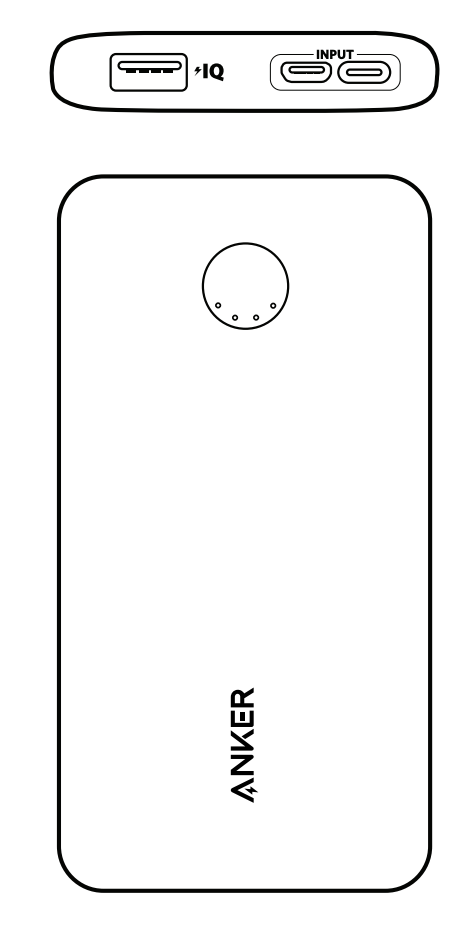

The 6000mAh Power Bank does not have traditional pins but includes the following ports and indicators:

1. Charging the Power Bank:

   • Connect the included Micro-USB cable to the power bank's input port.
   • Plug the other end of the cable into a USB wall adapter or a computer USB port.
   • The LED indicators will blink to show the charging progress. When all 4 LEDs are lit, the power bank is fully charged.

2. Charging Devices:

   • Connect your device to the USB-A output port using a compatible charging cable.
   • The power bank will automatically begin charging your device.
   • Monitor the LED indicators to ensure sufficient charge remains in the power bank.

3. Checking Battery Level:

   • Press the power button (if available) to activate the LED indicators.
   • The number of lit LEDs corresponds to the remaining charge:
     • 4 LEDs: 75-100%
     • 3 LEDs: 50-75%
     • 2 LEDs: 25-50%
     • 1 LED: 0-25%

• Use only high-quality charging cables to ensure efficient power transfer and avoid damage.
• Avoid exposing the power bank to extreme temperatures (below 0°C or above 40°C).
• Do not attempt to disassemble or modify the power bank, as this may void the warranty and pose safety risks.
• Charge the power bank at least once every three months if not in regular use to maintain battery health.

The 6000mAh Power Bank can be used to power an Arduino UNO via its USB-A output. Below is an example of how to connect and use it:

1. Connect the USB-A output of the power bank to the Arduino UNO's USB port using a USB cable.
2. The Arduino UNO will automatically power on and run the uploaded sketch.

Here is a simple Arduino sketch to blink an LED while powered by the power bank:

// Simple LED Blink Example
// This sketch blinks the built-in LED on pin 13 of the Arduino UNO.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Power Bank Not Charging:

   • Ensure the Micro-USB cable and wall adapter are functioning properly.
   • Check for debris or damage in the input port.
   • Try using a different charging cable or adapter.

2. Device Not Charging:

   • Verify that the USB cable is securely connected to both the power bank and the device.
   • Ensure the power bank has sufficient charge (check the LED indicators).
   • Confirm that the device is compatible with the power bank's output specifications.

3. LED Indicators Not Working:

   • Press the power button (if available) to activate the indicators.
   • If the LEDs still do not light up, the power bank may be completely discharged. Charge it for at least 30 minutes and check again.

4. Power Bank Overheating:

   • Disconnect all devices and allow the power bank to cool down.
   • Avoid using the power bank in high-temperature environments.

Q: How many times can the power bank charge my smartphone?
A: The number of charges depends on your smartphone's battery capacity. For example, a phone with a 3000mAh battery can be charged approximately 1.5-2 times.

Q: Can I charge the power bank and a device simultaneously?
A: This power bank does not support pass-through charging. Charge the power bank and your device separately.

Q: Is it safe to leave the power bank charging overnight?
A: Yes, the power bank includes overcharge protection. However, it is generally recommended to unplug devices once fully charged to conserve energy and prolong battery life.
