How to Use MQ6: Examples, Pinouts, and Specs

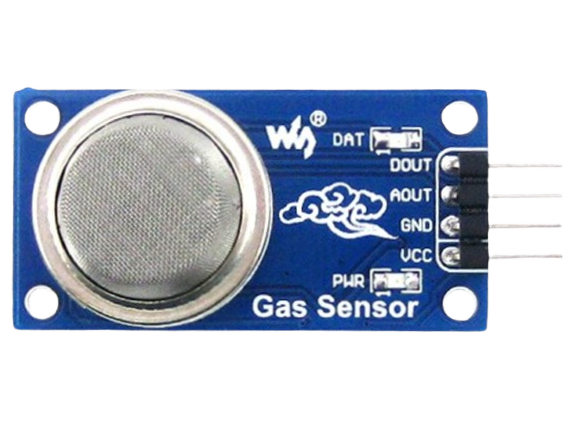

The MQ6 Gas Sensor, manufactured by MAINAK (Part ID: MQ6 SENSOR), is a versatile and reliable electronic component designed for detecting gases such as LPG (Liquefied Petroleum Gas), propane, and butane. It operates on the principle of resistive change in the presence of target gases, providing an analog output proportional to the gas concentration. This sensor is widely used in safety systems, gas leak detection, and industrial applications.

• Gas leak detection systems for homes and industries
• LPG and propane monitoring in kitchens and storage facilities
• Industrial safety systems
• Portable gas detectors
• IoT-based air quality monitoring systems

The MQ6 sensor is designed to operate efficiently in a variety of environments. Below are its key technical details:

The MQ6 sensor typically comes with four pins or terminals. Below is the pinout description:

1. Power Supply: Connect the VCC pin to a 5V DC power source and the GND pin to the ground.
2. Signal Reading:
   • Use the AOUT pin to read the analog signal corresponding to the gas concentration.
   • Optionally, use the DOUT pin for a digital signal if a threshold is set using the onboard potentiometer.
3. Preheating: Allow the sensor to preheat for at least 24 hours before taking accurate measurements.
4. Load Resistor: Connect a load resistor (typically 10 kΩ) between the AOUT pin and ground to convert the sensor's resistance change into a measurable voltage.

• Preheat Time: Ensure the sensor is preheated for the recommended duration to stabilize its readings.
• Ventilation: Use the sensor in a well-ventilated area to avoid saturation and ensure accurate detection.
• Calibration: Calibrate the sensor in a known gas concentration environment for precise measurements.
• Avoid Contaminants: Keep the sensor away from water, oil, and other contaminants that may damage its surface.
• Arduino Compatibility: The MQ6 sensor can be easily interfaced with an Arduino UNO for gas detection projects.

Below is an example code snippet to interface the MQ6 sensor with an Arduino UNO and read the analog output:

// MQ6 Gas Sensor Example Code
// This code reads the analog output of the MQ6 sensor and prints the value
// to the Serial Monitor. Ensure the sensor is connected to the correct pins.

const int MQ6_AOUT_Pin = A0; // Analog pin connected to MQ6 AOUT
int gasValue = 0;            // Variable to store gas concentration value

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  pinMode(MQ6_AOUT_Pin, INPUT); // Set the AOUT pin as input
}

void loop() {
  gasValue = analogRead(MQ6_AOUT_Pin); // Read the analog value from MQ6
  Serial.print("Gas Concentration (Analog Value): ");
  Serial.println(gasValue); // Print the gas concentration value
  delay(1000); // Wait for 1 second before the next reading
}

1. No Output Signal:

   • Cause: Incorrect wiring or insufficient power supply.
   • Solution: Verify the connections and ensure a stable 5V DC power source.

2. Inconsistent Readings:

   • Cause: Insufficient preheating or environmental interference.
   • Solution: Allow the sensor to preheat for at least 24 hours and ensure proper ventilation.

3. Sensor Not Detecting Gas:

   • Cause: Faulty sensor or incorrect calibration.
   • Solution: Test the sensor in a known gas concentration and recalibrate if necessary.

4. Digital Output Not Triggering:

   • Cause: Threshold not set correctly.
   • Solution: Adjust the onboard potentiometer to set the desired threshold.

Q1: Can the MQ6 sensor detect gases other than LPG, propane, and butane?
A1: While the MQ6 is optimized for LPG, propane, and butane, it may detect other combustible gases. However, its sensitivity and accuracy for other gases may vary.

Q2: How do I calibrate the MQ6 sensor?
A2: Expose the sensor to a known concentration of the target gas and adjust the load resistor or potentiometer to match the expected output.

Q3: Can I use the MQ6 sensor outdoors?
A3: The MQ6 sensor is not waterproof and should be protected from moisture and extreme environmental conditions when used outdoors.

Q4: What is the lifespan of the MQ6 sensor?
A4: The MQ6 sensor typically has a lifespan of 2-3 years under normal operating conditions. Regular maintenance and proper usage can extend its life.
