How to Use AD7781: Examples, Pinouts, and Specs

The AD7781 is a low-power, 24-bit sigma-delta analog-to-digital converter (ADC) manufactured by Analog Devices. It is designed for high-precision measurement applications, offering exceptional performance with minimal power consumption. The AD7781 features an integrated programmable gain amplifier (PGA) and operates via a simple serial interface, making it ideal for applications requiring accurate and reliable data acquisition.

• Weigh scales
• Industrial process control
• Temperature measurement systems
• Pressure sensors
• Portable instrumentation

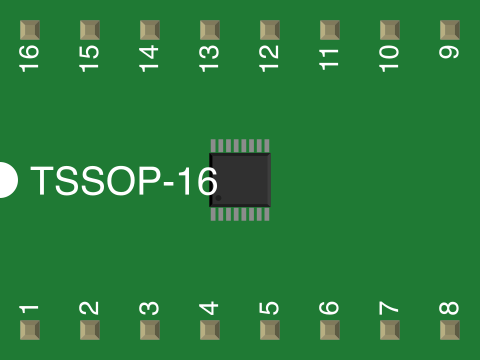

The AD7781 is available in a 16-lead TSSOP package. Below is the pin configuration and description:

1. Power Supply: Connect the analog (AVDD) and digital (DVDD) power supplies to a voltage source between 2.7 V and 5.25 V. Ensure proper decoupling capacitors are placed close to the power pins.
2. Reference Voltage: Provide a stable reference voltage to the REFIN(+) and REFIN(−) pins. The reference voltage determines the input voltage range.
3. Analog Input: Connect the differential analog input signal to the AIN(+) and AIN(−) pins. Ensure the input voltage does not exceed the specified range (±VREF/Gain).
4. SPI Communication:
   • Connect the SCLK, DIN, DOUT/RDY, and CS pins to the SPI bus of your microcontroller or processor.
   • Configure the SPI interface for CPOL = 0 and CPHA = 1.
5. Reset: Use the RESET pin to initialize the device during power-up or in case of communication errors.
6. Data Acquisition: Monitor the DOUT/RDY pin to detect when new data is available. Read the 24-bit data from the ADC via the SPI interface.

• Use low-noise power supplies and proper grounding techniques to minimize noise and interference.
• Place decoupling capacitors (e.g., 0.1 µF and 10 µF) close to the AVDD and DVDD pins.
• Ensure the reference voltage is stable and within the specified range for accurate measurements.
• Avoid exceeding the absolute maximum ratings for any pin to prevent damage to the device.
• Use shielded cables or PCB traces for the analog input signals to reduce noise pickup.

Below is an example of how to interface the AD7781 with an Arduino UNO using SPI:

#include <SPI.h>

// Define AD7781 pins
#define CS_PIN 10
#define RESET_PIN 9

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);

  // Configure SPI settings
  SPI.begin();
  SPI.setDataMode(SPI_MODE1); // CPOL = 0, CPHA = 1
  SPI.setClockDivider(SPI_CLOCK_DIV16); // Set SPI clock speed
  SPI.setBitOrder(MSBFIRST); // Most significant bit first

  // Configure AD7781 pins
  pinMode(CS_PIN, OUTPUT);
  pinMode(RESET_PIN, OUTPUT);

  // Reset the AD7781
  digitalWrite(RESET_PIN, LOW);
  delay(10); // Hold reset low for 10 ms
  digitalWrite(RESET_PIN, HIGH);
  delay(10); // Wait for the device to initialize

  // Set CS pin high (inactive)
  digitalWrite(CS_PIN, HIGH);
}

void loop() {
  // Start SPI communication with AD7781
  digitalWrite(CS_PIN, LOW);

  // Read 24-bit data from AD7781
  uint8_t data[3];
  for (int i = 0; i < 3; i++) {
    data[i] = SPI.transfer(0x00); // Send dummy byte to receive data
  }

  // End SPI communication
  digitalWrite(CS_PIN, HIGH);

  // Combine the 3 bytes into a 24-bit value
  long adcValue = ((long)data[0] << 16) | ((long)data[1] << 8) | data[2];

  // Print the ADC value
  Serial.print("ADC Value: ");
  Serial.println(adcValue);

  delay(1000); // Wait 1 second before the next reading
}

1. No Data Output:

   • Ensure the SPI connections are correct and the SPI settings match the AD7781 requirements.
   • Verify that the CS pin is pulled low during communication.
   • Check the RESET pin to ensure the device is properly initialized.

2. Incorrect ADC Values:

   • Verify the reference voltage and input signal levels.
   • Ensure the gain setting is appropriate for the input signal range.
   • Check for noise or interference in the analog input signals.

3. Device Not Responding:

   • Confirm that the power supply voltages (AVDD and DVDD) are within the specified range.
   • Check for proper grounding and decoupling capacitor placement.

• Use an oscilloscope to monitor the SPI signals (SCLK, DIN, DOUT/RDY) for proper timing and signal integrity.
• Verify the stability of the reference voltage and power supplies.
• Double-check all connections and ensure there are no loose wires or shorts.

By following this documentation, users can effectively integrate the AD7781 into their designs and achieve high-precision measurements for a variety of applications.
