How to Use esp32 c3 super mini: Examples, Pinouts, and Specs

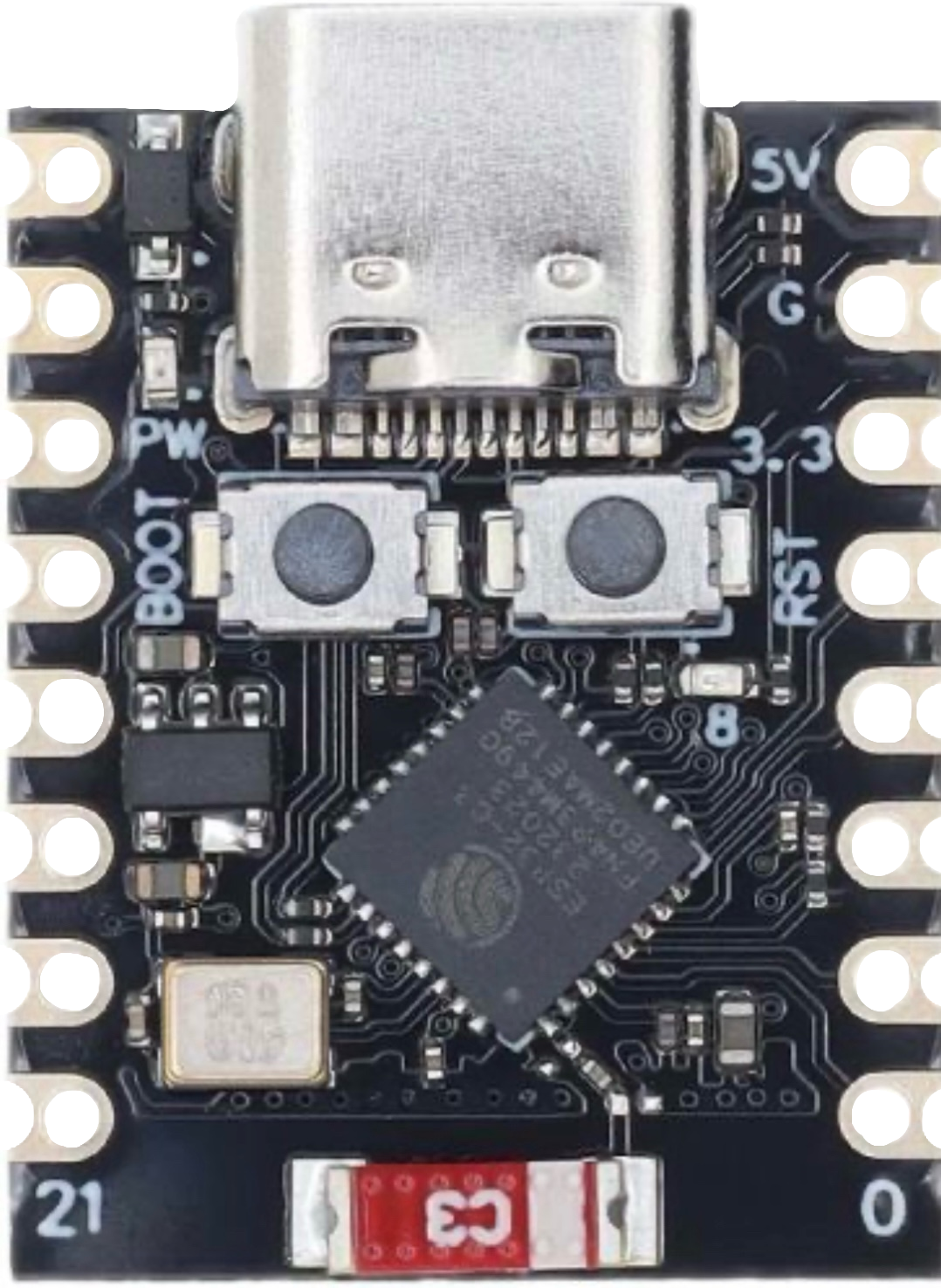

The ESP32-C3 Super Mini, manufactured by Espressif, is a compact and powerful microcontroller designed for IoT applications. It features integrated Wi-Fi and Bluetooth Low Energy (BLE) capabilities, making it an excellent choice for projects requiring wireless connectivity. With its RISC-V single-core processor, low power consumption, and robust security features, the ESP32-C3 Super Mini is ideal for smart home devices, wearables, industrial automation, and other embedded systems.

• IoT devices and smart home automation
• Wearable electronics
• Wireless sensor networks
• Industrial control systems
• Prototyping and development of connected devices

The ESP32-C3 Super Mini offers a range of features and specifications that make it versatile and efficient for various applications.

The ESP32-C3 Super Mini has a compact pinout, as shown below:

The ESP32-C3 Super Mini is easy to integrate into your projects. Below are the steps and best practices for using this microcontroller.

1. Power Supply: Provide a stable 3.3V power supply to the 3V3 pin. Connect the GND pin to the ground of your circuit.
2. Programming: Use a USB-to-UART adapter to connect the RXD and TXD pins to your computer for programming. Ensure the EN pin is pulled high during operation.
3. Boot Mode: To enter bootloader mode for flashing firmware, hold the GPIO0 pin low while resetting the device.
4. Peripherals: Connect sensors, actuators, or other peripherals to the GPIO pins. Use the ADC pins for analog input and the UART, SPI, or I2C interfaces for communication.

• Use level shifters if interfacing with 5V logic devices, as the ESP32-C3 operates at 3.3V logic levels.
• Avoid exceeding the maximum current rating of GPIO pins (12 mA per pin).
• Use decoupling capacitors near the power supply pins to ensure stable operation.
• For wireless applications, ensure the onboard antenna has sufficient clearance from metal objects to avoid signal interference.

The ESP32-C3 Super Mini can be programmed using the Arduino IDE. Below is an example of connecting the ESP32-C3 to a Wi-Fi network:

#include <WiFi.h> // Include the Wi-Fi library for ESP32

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  delay(1000); // Wait for serial monitor to initialize

  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password); // Start Wi-Fi connection

  // Wait until the ESP32-C3 connects to Wi-Fi
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  Serial.println("\nConnected to Wi-Fi!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the assigned IP address
}

void loop() {
  // Add your main code here
}

1. ESP32-C3 Not Connecting to Wi-Fi

   • Ensure the SSID and password are correct.
   • Check if the Wi-Fi network is within range.
   • Verify that the power supply is stable and sufficient.

2. Unable to Flash Firmware

   • Ensure the GPIO0 pin is held low during reset to enter bootloader mode.
   • Check the USB-to-UART adapter connections (RXD to TXD and TXD to RXD).
   • Install the correct USB drivers for your adapter.

3. GPIO Pins Not Responding

   • Verify that the pins are not configured as inputs or outputs incorrectly.
   • Check for short circuits or excessive current draw on the pins.

Q: Can the ESP32-C3 Super Mini operate on 5V?
A: No, the ESP32-C3 operates at 3.3V. Use a voltage regulator or level shifter for 5V systems.

Q: How do I reduce power consumption?
A: Use the deep sleep mode to minimize power usage. Refer to the Espressif documentation for details on configuring sleep modes.

Q: Is the ESP32-C3 compatible with Arduino libraries?
A: Yes, the ESP32-C3 is supported by the Arduino IDE and many libraries designed for ESP32 devices.

By following this documentation, you can effectively integrate the ESP32-C3 Super Mini into your projects and troubleshoot common issues.
