How to Use Push Button Round: Examples, Pinouts, and Specs

Introduction

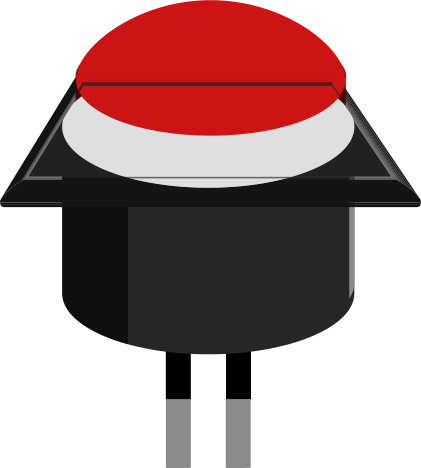

The Push Button Round is a simple, momentary switch that allows users to make or break an electrical circuit by pressing it. It is commonly used in electronic devices for user input, such as turning devices on or off, triggering events, or navigating menus. Its round design makes it ergonomic and easy to use, making it a popular choice in consumer electronics, DIY projects, and industrial applications.

Explore Projects Built with Push Button Round

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Arduino UNO-Based Multi-Button Input System with LED Indicator

This circuit consists of three Arduino UNO microcontrollers, each connected to multiple push buttons and resistors, forming a button matrix. The push buttons are used as input devices, and the microcontrollers are programmed to read these inputs, although the provided code does not specify any particular functionality.

Open Project in Cirkit Designer

Pushbutton-Controlled Interface with 40-Pin Connector and UBS Power Supply

This circuit consists of a 40-pin connector interfacing with four pushbuttons and a UBS power supply. The pushbuttons are used as inputs to the connector, which then relays the signals to other components or systems. The UBS power supply provides the necessary 24V power to the pushbuttons and the common ground for the circuit.

Open Project in Cirkit Designer

Arduino UNO and ESP8266 NodeMCU Interactive Display with Pushbutton Inputs and Audio Feedback

This circuit features an Arduino UNO microcontroller interfaced with multiple pushbuttons, a piezo buzzer, an LED dot display, and an ESP8266 NodeMCU. The pushbuttons are likely used for input to trigger different actions or events, the piezo buzzer for audible feedback, and the LED dot display for visual output. The ESP8266 NodeMCU is connected to the Arduino UNO for potential WiFi capabilities, expanding the functionality for IoT applications.

Open Project in Cirkit Designer

Battery-Powered Multi-Button Controller with Seeed Studio nRF52840

This circuit consists of five pushbuttons connected to a Seeed Studio nRF52840 microcontroller, which is powered by a Polymer Lithium Ion Battery. Each pushbutton is connected to a different GPIO pin on the microcontroller, allowing for individual button press detection and processing.

Open Project in Cirkit Designer

Common Applications:

• User input for electronic devices (e.g., power buttons, reset switches)
• DIY electronics and prototyping
• Control panels and industrial equipment
• Arduino and microcontroller-based projects

Technical Specifications

The Push Button Round is a versatile component with the following key specifications:

Pin Configuration and Descriptions

The Push Button Round typically has two or four pins, depending on the model. Below is the pin configuration for a standard 4-pin push button:

Note: Pins 1 and 3 are internally connected, as are Pins 2 and 4. This redundancy allows for easier placement on a breadboard or PCB.

Usage Instructions

How to Use the Push Button Round in a Circuit

1. Identify the Pins: Use a multimeter to confirm which pins are internally connected. Pins 1 and 3 are typically connected, as are Pins 2 and 4.
2. Connect to Circuit:
   • Connect one side of the button (e.g., Pin 1 or Pin 3) to the input signal or power source.
   • Connect the other side (e.g., Pin 2 or Pin 4) to the load or ground.
3. Debounce the Button: Push buttons can produce noise or "bouncing" when pressed. Use a capacitor (e.g., 0.1 µF) or software debounce techniques to ensure stable operation.
4. Test the Circuit: Press the button to verify that it completes the circuit and triggers the desired action.

Example: Connecting to an Arduino UNO

The Push Button Round can be easily interfaced with an Arduino UNO for user input. Below is an example circuit and code:

Circuit:

• Connect one side of the button (Pin 1 or Pin 3) to a digital input pin on the Arduino (e.g., Pin 2).
• Connect the other side (Pin 2 or Pin 4) to ground.
• Use a pull-up resistor (10kΩ) between the digital input pin and 5V to ensure a stable HIGH signal when the button is not pressed.

Code:

// Push Button Round Example with Arduino UNO
// This code reads the state of the button and turns on an LED when pressed.

const int buttonPin = 2;  // Pin connected to the push button
const int ledPin = 13;    // Pin connected to the onboard LED

void setup() {
  pinMode(buttonPin, INPUT_PULLUP); // Set button pin as input with internal pull-up
  pinMode(ledPin, OUTPUT);          // Set LED pin as output
}

void loop() {
  int buttonState = digitalRead(buttonPin); // Read the button state

  if (buttonState == LOW) { // Button pressed (LOW due to pull-up resistor)
    digitalWrite(ledPin, HIGH); // Turn on the LED
  } else {
    digitalWrite(ledPin, LOW);  // Turn off the LED
  }
}

Note: The INPUT_PULLUP mode enables the Arduino's internal pull-up resistor, eliminating the need for an external resistor.

Best Practices:

• Always debounce the button to avoid erratic behavior.
• Avoid exceeding the voltage and current ratings to prevent damage.
• Use appropriate enclosures or mounting to protect the button in harsh environments.

Troubleshooting and FAQs

Common Issues and Solutions:

1. Button Not Responding:

   • Cause: Incorrect wiring or loose connections.
   • Solution: Double-check the wiring and ensure all connections are secure.

2. Button Bounces (Multiple Triggers):

   • Cause: Mechanical bouncing of the button contacts.
   • Solution: Add a capacitor (e.g., 0.1 µF) across the button terminals or implement software debounce in your code.

3. Button Stuck or Hard to Press:

   • Cause: Dirt or debris inside the button mechanism.
   • Solution: Clean the button with compressed air or replace it if damaged.

4. Button Fails After Prolonged Use:

   • Cause: Exceeded mechanical lifespan or electrical ratings.
   • Solution: Replace the button with a new one and ensure proper usage within specifications.

FAQs:

Q: Can I use the Push Button Round with AC circuits?
A: The Push Button Round is primarily designed for low-voltage DC circuits. For AC applications, ensure the button's voltage and current ratings are suitable.

Q: How do I mount the Push Button Round on a PCB?
A: The button's pins can be soldered directly onto a PCB. Ensure the pin spacing matches the PCB layout.

Q: Can I use the button without a pull-up resistor?
A: A pull-up resistor (internal or external) is necessary to ensure a stable HIGH signal when the button is not pressed.

By following this documentation, you can effectively integrate the Push Button Round into your projects and troubleshoot any issues that arise.
