How to Use ADAPTO 5 VOLT: Examples, Pinouts, and Specs

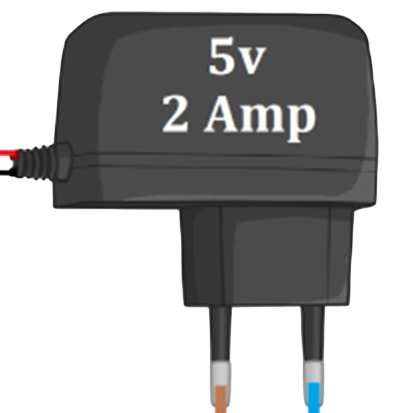

Image of ADAPTO 5 VOLTDesign with ADAPTO 5 VOLT in Cirkit Designer

Introduction

The ADAPTO 5 VOLT is a compact and reliable power adapter designed to convert standard AC voltage from a wall outlet into a stable 5V DC output. This component is widely used to power low-voltage electronic devices, including microcontrollers, sensors, single-board computers, and other peripherals. Its consistent 5V output ensures safe and efficient operation of sensitive electronics, making it an essential tool for hobbyists, engineers, and developers.

Explore Projects Built with ADAPTO 5 VOLT

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Dual 5V Power Supply Distribution Circuit with Toggle Switch Control: A project utilizing ADAPTO 5 VOLT in a practical application
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control

This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.

Open Project in Cirkit Designer

Common Applications and Use Cases

Technical Specifications

The following table outlines the key technical details of the ADAPTO 5 VOLT:

Parameter Specification
Input Voltage 100-240V AC, 50/60Hz
Output Voltage 5V DC ± 5%
Maximum Output Current 2A
Power Rating 10W
Connector Type USB Type-A or Barrel Jack (varies by model)
Efficiency ≥ 85%
Protection Features Overvoltage, Overcurrent, Short Circuit

Pin Configuration and Descriptions

For models with a barrel jack connector, the pin configuration is as follows:

Pin Description
Center Positive (+5V DC)
Outer Ground (GND)

For USB Type-A models, the pin configuration is standard for USB power:

Pin Description
VBUS Positive (+5V DC)
GND Ground

Usage Instructions

How to Use the ADAPTO 5 VOLT in a Circuit

  1. Connect the Adapter to a Power Source: Plug the ADAPTO 5 VOLT into a standard AC wall outlet.
  2. Connect the Output to Your Device:
    • For barrel jack models, ensure the polarity matches your device's requirements (center positive).
    • For USB models, connect the USB cable to your device's power input port.
  3. Verify the Connection: Ensure all connections are secure and that the device is receiving power.

Important Considerations and Best Practices

Example: Powering an Arduino UNO

The ADAPTO 5 VOLT can be used to power an Arduino UNO via its barrel jack or USB port. Below is an example of using the adapter with the Arduino UNO:

Code Example

// Example code for Arduino UNO powered by ADAPTO 5 VOLT
// This code blinks an LED connected to pin 13

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Power Output

    • Cause: The adapter is not properly plugged into the wall outlet.
    • Solution: Ensure the adapter is securely connected to a functioning AC outlet.
  2. Device Not Powering On

    • Cause: Incorrect polarity or loose connection.
    • Solution: Verify the polarity of the barrel jack connection and ensure all connections are secure.
  3. Adapter Overheating

    • Cause: Overloading the adapter with devices that exceed its 2A current limit.
    • Solution: Disconnect some devices or use a higher-capacity power adapter.
  4. Intermittent Power

    • Cause: Faulty cable or connector.
    • Solution: Replace the cable or inspect the connector for damage.

FAQs

This concludes the documentation for the ADAPTO 5 VOLT. For further assistance, refer to the manufacturer's support resources.
