How to Use Arduino nano: Examples, Pinouts, and Specs

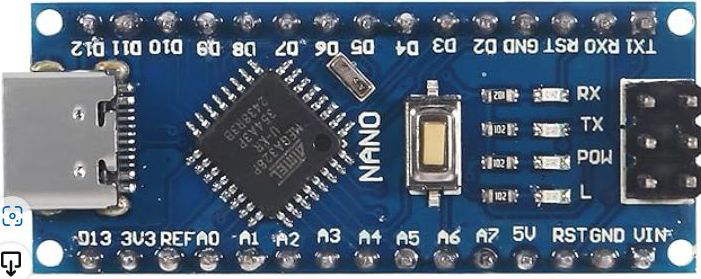

Image of Arduino nano
Cirkit Designer LogoDesign with Arduino nano in Cirkit Designer

Introduction

The Arduino Nano is a compact microcontroller board developed by Arduino, based on the ATmega328P microcontroller. It is designed for small-scale projects and prototyping, offering a balance of functionality and size. The Nano is equipped with digital and analog input/output pins, USB connectivity for programming, and compatibility with the Arduino IDE, making it a versatile choice for hobbyists and professionals alike.

Explore Projects Built with Arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
Image of Compass: A project utilizing Arduino nano in a practical application
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and OLED Display for Real-Time Data Visualization
Image of OLED Display: A project utilizing Arduino nano in a practical application
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Basic Setup for Embedded Projects
Image of yt: A project utilizing Arduino nano in a practical application
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Multi-Sensor Data Logger with GPS, Bluetooth, and TFT Display
Image of mt: A project utilizing Arduino nano in a practical application
This circuit features an Arduino Nano as the central microcontroller, interfaced with a variety of sensors and modules for data acquisition and display. It includes a GPS module for location tracking, a DS18B20 temperature sensor, an MPU-6050 for motion tracking, an ADXL335 accelerometer, a MAX30100 pulse oximeter, and an Adafruit TFT display for output. Additionally, the circuit integrates an HC-05 Bluetooth module for wireless communication and is powered by a 3.7v LiPo battery through a charging module, indicating a portable, multi-sensor data logging or monitoring system with display and wireless capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Compass: A project utilizing Arduino nano in a practical application
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of OLED Display: A project utilizing Arduino nano in a practical application
Arduino Nano and OLED Display for Real-Time Data Visualization
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of yt: A project utilizing Arduino nano in a practical application
Arduino Nano Basic Setup for Embedded Projects
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mt: A project utilizing Arduino nano in a practical application
Arduino Nano-Based Multi-Sensor Data Logger with GPS, Bluetooth, and TFT Display
This circuit features an Arduino Nano as the central microcontroller, interfaced with a variety of sensors and modules for data acquisition and display. It includes a GPS module for location tracking, a DS18B20 temperature sensor, an MPU-6050 for motion tracking, an ADXL335 accelerometer, a MAX30100 pulse oximeter, and an Adafruit TFT display for output. Additionally, the circuit integrates an HC-05 Bluetooth module for wireless communication and is powered by a 3.7v LiPo battery through a charging module, indicating a portable, multi-sensor data logging or monitoring system with display and wireless capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Wearable electronics
  • Robotics and automation
  • IoT (Internet of Things) devices
  • Sensor interfacing and data logging
  • Educational projects and prototyping

Technical Specifications

Key Technical Details

Parameter Specification
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (VIN) 7-12V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connectivity Mini-B USB
Dimensions 45 mm x 18 mm
Weight ~7 g

Pin Configuration and Descriptions

Pin Name Description
VIN Input voltage to the board when using an external power source (7-12V).
5V Regulated 5V output from the onboard voltage regulator.
3.3V Regulated 3.3V output (maximum current: 50 mA).
GND Ground pins.
Digital Pins D0-D13: Digital I/O pins (D3, D5, D6, D9, D10, D11 support PWM).
Analog Pins A0-A7: Analog input pins (10-bit resolution).
Reset Resets the microcontroller.
TX (D1) Transmit pin for serial communication.
RX (D0) Receive pin for serial communication.
ICSP Header Used for programming the microcontroller or connecting peripherals.

Usage Instructions

How to Use the Arduino Nano in a Circuit

  1. Powering the Board:

    • Use the Mini-B USB port to power and program the board.
    • Alternatively, supply 7-12V to the VIN pin or 5V to the 5V pin.
  2. Connecting Components:

    • Use the digital pins (D0-D13) for digital input/output operations.
    • Use the analog pins (A0-A7) for reading analog signals (e.g., from sensors).
    • Connect external modules (e.g., sensors, motors) to the appropriate pins.
  3. Programming:

    • Install the Arduino IDE from the official Arduino website.
    • Select "Arduino Nano" as the board type and "ATmega328P" as the processor.
    • Connect the Nano to your computer via a Mini-B USB cable.
    • Write your code in the Arduino IDE and upload it to the board.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to pin D13.

// This code blinks an LED connected to pin D13 on the Arduino Nano.
// The LED will turn on for 1 second and off for 1 second in a loop.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Important Considerations

  • Ensure the input voltage does not exceed the specified range (7-12V for VIN).
  • Avoid drawing more than 40 mA from any single I/O pin to prevent damage.
  • Use appropriate resistors when connecting LEDs or other components to the pins.
  • When using the Nano with an external power source, ensure proper grounding.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB drivers for the Arduino Nano.
    • Verify that the correct COM port is selected in the Arduino IDE.
  2. Error uploading code:

    • Check that the correct board and processor are selected in the Arduino IDE.
    • Press the reset button on the Nano before uploading the code.
    • Ensure no external components are interfering with the RX/TX pins.
  3. The board is overheating:

    • Verify that the input voltage does not exceed the recommended range.
    • Check for short circuits in the connected components.
  4. Analog readings are unstable:

    • Use proper decoupling capacitors near the analog input pins.
    • Ensure the sensor or input device is properly grounded.

FAQs

Q: Can the Arduino Nano run on 3.3V?
A: Yes, the Nano can operate at 3.3V, but ensure that all connected components are compatible with this voltage level.

Q: How do I reset the Arduino Nano?
A: Press the reset button on the board or connect the RESET pin to GND momentarily.

Q: Can I use the Arduino Nano for wireless communication?
A: Yes, you can connect wireless modules like Bluetooth (HC-05) or Wi-Fi (ESP8266) to the Nano via its serial or digital pins.

Q: What is the difference between the Arduino Nano and Arduino Uno?
A: The Nano is smaller and more compact, making it ideal for space-constrained projects. It also uses a Mini-B USB port instead of the Uno's Type-B USB port.

By following this documentation, you can effectively utilize the Arduino Nano for a wide range of projects and applications.
