How to Use LCD 16x2 (Wokwi Compatible): Examples, Pinouts, and Specs

The LCD 16x2 is a character-based Liquid Crystal Display capable of displaying 16 characters per line across 2 lines. It is widely used in electronics projects for displaying text, numbers, and simple symbols. This display is compatible with the Wokwi simulation platform, making it an excellent choice for prototyping and learning.

• Displaying sensor readings in embedded systems
• User interfaces for microcontroller-based projects
• Menu systems for devices
• Educational and prototyping purposes using platforms like Arduino and Wokwi

• Display Type: Character-based LCD
• Resolution: 16 characters x 2 lines
• Operating Voltage: 4.7V to 5.3V
• Current Consumption: ~1mA (without backlight), ~15mA (with backlight)
• Interface: Parallel (4-bit or 8-bit mode)
• Backlight: LED backlight with adjustable brightness
• Character Size: 5x8 dot matrix per character
• Operating Temperature: -20°C to 70°C

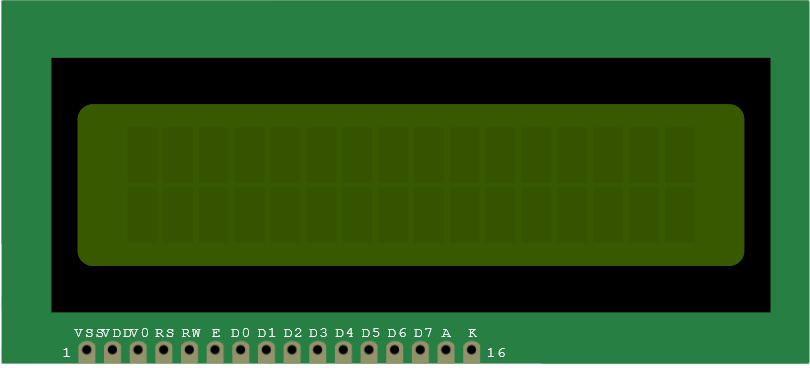

The LCD 16x2 has 16 pins, as described in the table below:

1. Power the LCD: Connect pin 1 (VSS) to ground and pin 2 (VDD) to a 5V power supply.
2. Adjust Contrast: Connect pin 3 (VO) to the wiper of a 10kΩ potentiometer. Connect the other two terminals of the potentiometer to 5V and ground.
3. Control Pins: Connect the RS, RW, and E pins to digital pins on your microcontroller. For most applications, connect RW to ground (write mode).
4. Data Pins: Use either 4-bit mode (D4-D7) or 8-bit mode (D0-D7) to send data to the LCD. For simplicity, 4-bit mode is commonly used.
5. Backlight: Connect pin 15 (A) to 5V through a current-limiting resistor (e.g., 220Ω) and pin 16 (K) to ground.

• Contrast Adjustment: Ensure the potentiometer is properly adjusted to make the characters visible.
• Backlight Current: Use an appropriate resistor to limit the current through the backlight.
• Initialization: Always initialize the LCD in your code before sending data.
• Simulation: When using Wokwi, ensure the LCD is properly connected to the simulated microcontroller.

Below is an example of how to use the LCD 16x2 with an Arduino UNO in 4-bit mode:

#include <LiquidCrystal.h>

// Initialize the library with the numbers of the interface pins
// RS -> pin 7, E -> pin 8, D4 -> pin 9, D5 -> pin 10, D6 -> pin 11, D7 -> pin 12
LiquidCrystal lcd(7, 8, 9, 10, 11, 12);

void setup() {
  lcd.begin(16, 2); // Set up the LCD's number of columns and rows
  lcd.print("Hello, World!"); // Print a message to the LCD
}

void loop() {
  lcd.setCursor(0, 1); // Move the cursor to the second line
  lcd.print("Wokwi Rocks!"); // Print another message
  delay(1000); // Wait for 1 second
  lcd.clear(); // Clear the display
  lcd.print("LCD 16x2 Demo"); // Print a new message
  delay(2000); // Wait for 2 seconds
}

1. No Display on the LCD:

   • Check the power connections (VSS and VDD).
   • Adjust the contrast using the potentiometer connected to VO.
   • Ensure the backlight is properly connected.

2. Garbled or No Text:

   • Verify the connections to the data and control pins.
   • Ensure the LCD is initialized correctly in the code.
   • Check for loose or incorrect wiring.

3. Backlight Not Working:

   • Confirm the backlight pins (A and K) are connected properly.
   • Use a suitable resistor to limit the current.

4. Simulation Issues in Wokwi:

   • Double-check the pin assignments in the Wokwi simulation.
   • Ensure the correct library (e.g., LiquidCrystal) is included in the code.

Q: Can I use the LCD 16x2 with a 3.3V microcontroller?
A: The LCD requires a 5V power supply. Use a level shifter for the data lines if your microcontroller operates at 3.3V.

Q: How do I display custom characters?
A: Use the createChar() function in the LiquidCrystal library to define and display custom characters.

Q: Can I use the LCD without a backlight?
A: Yes, the LCD will still function without a backlight, but visibility may be reduced in low-light conditions.
