How to Use button 12x12: Examples, Pinouts, and Specs

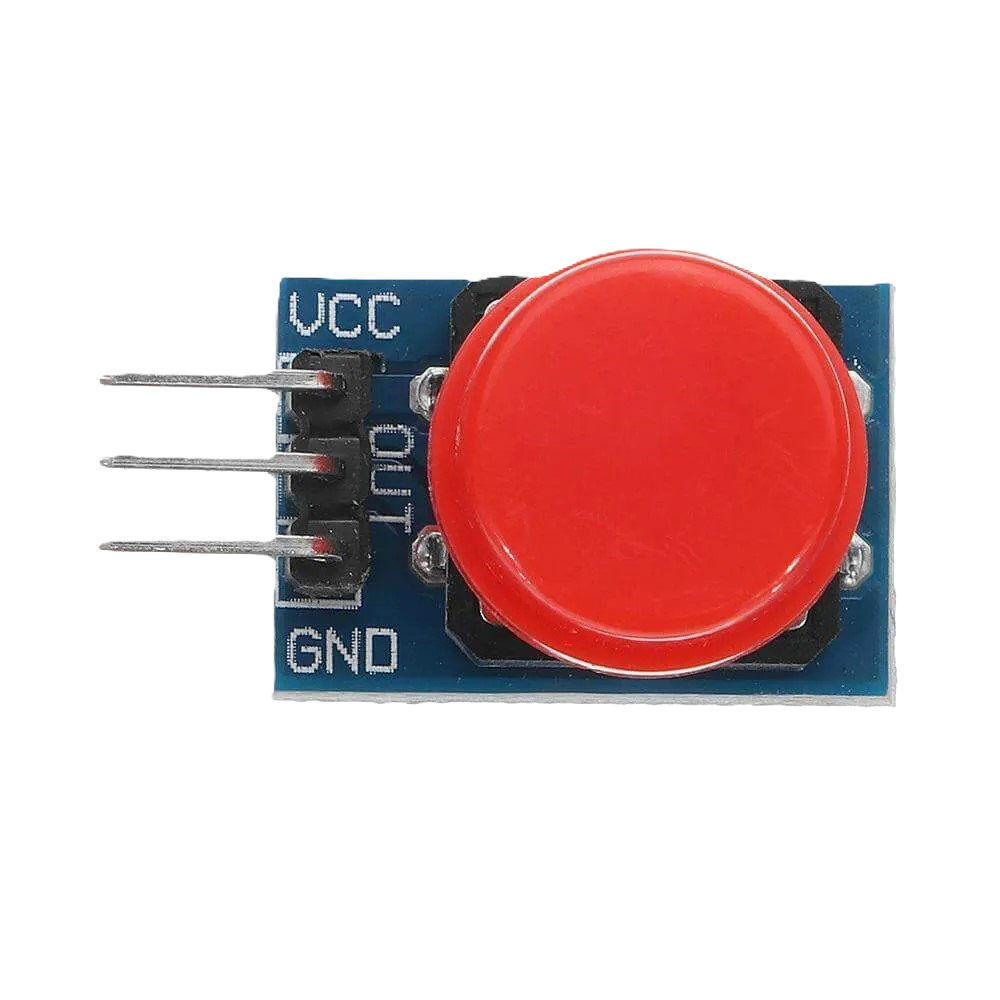

The Button 12x12 is a tactile push-button switch with a 12mm x 12mm footprint. It is widely used in electronic devices for user input, such as triggering actions, navigating menus, or resetting systems. This compact and durable switch is designed for through-hole mounting and provides a reliable tactile response when pressed.

• User input for microcontroller-based projects
• Reset or power buttons in electronic devices
• Menu navigation in embedded systems
• Prototyping and DIY electronics projects

The Button 12x12 is a simple yet versatile component. Below are its key technical details:

The Button 12x12 has four pins, arranged in a square configuration. The pins are internally connected in pairs, as shown below:

Note: When the button is not pressed, the two pairs of pins are electrically isolated. When pressed, the internal connections close, creating a short circuit between Pin 1 and Pin 3 (and their respective pairs).

1. Identify the Pins: Use a multimeter to confirm the pin pairs. Pins 1 and 2 are connected internally, as are Pins 3 and 4.
2. Connect to Circuit:
   • Connect one pair of pins (e.g., Pins 1 and 2) to the input signal or power source.
   • Connect the other pair (e.g., Pins 3 and 4) to the load or microcontroller input pin.
3. Debounce the Button: Mechanical switches like the Button 12x12 can produce noise or "bouncing" when pressed. Use a capacitor (e.g., 0.1µF) or software debounce techniques to ensure stable operation.
4. Test the Button: Verify the button's functionality by pressing it and observing the circuit's response.

• Voltage and Current Limits: Do not exceed the maximum operating voltage (12V DC) or current (50mA) to avoid damaging the button.
• Mounting: Ensure the button is securely mounted on the PCB to prevent mechanical stress.
• Debouncing: Always implement hardware or software debouncing to avoid erratic behavior in your circuit.

The Button 12x12 can be easily interfaced with an Arduino UNO for user input. Below is an example circuit and code:

1. Connect one pin pair (e.g., Pins 1 and 2) to the Arduino's 5V pin.
2. Connect the other pin pair (e.g., Pins 3 and 4) to a digital input pin (e.g., Pin 2) on the Arduino.
3. Add a pull-down resistor (e.g., 10kΩ) between the input pin and ground to ensure a stable LOW state when the button is not pressed.

// Define the pin connected to the button
const int buttonPin = 2;
// Define the pin for the onboard LED
const int ledPin = 13;

void setup() {
  pinMode(buttonPin, INPUT);  // Set the button pin as input
  pinMode(ledPin, OUTPUT);   // Set the LED pin as output
}

void loop() {
  // Read the button state
  int buttonState = digitalRead(buttonPin);

  // If the button is pressed, turn on the LED
  if (buttonState == HIGH) {
    digitalWrite(ledPin, HIGH);  // Turn on the LED
  } else {
    digitalWrite(ledPin, LOW);   // Turn off the LED
  }
}

Note: This code assumes the use of a pull-down resistor. If using a pull-up resistor, adjust the logic accordingly.

1. Button Not Responding:

   • Check the wiring and ensure proper connections.
   • Verify that the button is not damaged or worn out.
   • Ensure the voltage and current are within the specified limits.

2. Erratic Behavior:

   • This is likely due to switch bouncing. Add a capacitor or implement software debouncing in your code.

3. Short Circuit:

   • Ensure the button is not pressed while testing continuity with a multimeter.
   • Double-check the pin connections to avoid accidental shorts.

Q: Can I use the Button 12x12 with a 3.3V system?
A: Yes, the button can be used with 3.3V systems as long as the current does not exceed 50mA.

Q: How do I debounce the button in software?
A: You can use a delay or a state-checking algorithm in your code to filter out noise caused by bouncing. For example, wait 10-50ms after detecting a button press before registering the input.

Q: Can I use the Button 12x12 for high-power applications?
A: No, the button is designed for low-power applications. For high-power circuits, use a relay or transistor to handle the load.

By following this documentation, you can effectively integrate the Button 12x12 into your projects and troubleshoot any issues that arise.
