How to Use 18650 in case: Examples, Pinouts, and Specs

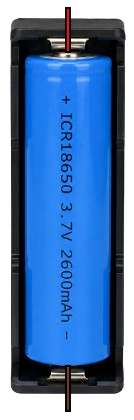

The 18650 in case is a cylindrical lithium-ion rechargeable battery housed in a protective casing. This component is widely used in portable electronics, electric vehicles, and DIY projects due to its high energy density, long cycle life, and reliability. The protective case enhances safety by preventing physical damage and short circuits, making it suitable for applications where durability and safety are critical.

• Power banks and portable chargers
• Flashlights and LED lighting systems
• Electric vehicles and e-bikes
• DIY electronics and robotics projects
• Backup power supplies and energy storage systems

The 18650 in case typically has two terminals:

1. Identify the Terminals: Ensure you correctly identify the positive (+) and negative (-) terminals on the battery case.
2. Connect to a Load: Use appropriate wires or connectors to attach the battery to your circuit. Ensure the load does not exceed the battery's maximum discharge current.
3. Charging the Battery:
   • Use a lithium-ion battery charger with a constant current/constant voltage (CC/CV) charging profile.
   • Ensure the charging voltage does not exceed 4.2V and the current is within the recommended range (e.g., 0.5C to 1C of the battery capacity).
4. Safety Precautions:
   • Avoid short-circuiting the terminals.
   • Do not expose the battery to extreme heat or puncture the case.
   • Use a battery management system (BMS) for added safety in multi-cell configurations.

The 18650 in case can power an Arduino UNO via its VIN pin. Below is an example of connecting the battery to the Arduino and reading the battery voltage using a voltage divider.

• Connect the positive terminal of the 18650 to the VIN pin of the Arduino.
• Connect the negative terminal to the GND pin.
• Use a voltage divider to step down the battery voltage for safe measurement by the Arduino's analog input.

// Define the analog pin connected to the voltage divider
const int voltagePin = A0;

// Define the voltage divider ratio (e.g., R1 = 10k, R2 = 10k)
const float voltageDividerRatio = 2.0;

// Define the reference voltage of the Arduino (5V for UNO)
const float referenceVoltage = 5.0;

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int rawValue = analogRead(voltagePin); // Read the analog input
  float batteryVoltage = (rawValue / 1023.0) * referenceVoltage * voltageDividerRatio;

  // Print the battery voltage to the Serial Monitor
  Serial.print("Battery Voltage: ");
  Serial.print(batteryVoltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

• Always use a voltage divider when measuring the battery voltage with an Arduino to avoid damaging the analog input pin.
• Ensure the battery is not over-discharged (below 2.5V) to prevent damage.
• Use a fuse or protection circuit to safeguard against overcurrent conditions.

1. Battery Not Charging:

   • Cause: Faulty charger or damaged battery.
   • Solution: Verify the charger output voltage and current. Replace the battery if necessary.

2. Battery Overheating:

   • Cause: Excessive discharge current or short circuit.
   • Solution: Reduce the load or check for short circuits. Use a battery with a higher discharge rating if needed.

3. Low Battery Runtime:

   • Cause: Battery capacity degradation or high load.
   • Solution: Replace the battery if it has reached the end of its cycle life. Optimize the load for better efficiency.

4. Arduino Not Powering On:

   • Cause: Insufficient voltage or incorrect wiring.
   • Solution: Ensure the battery voltage is above 6V when connected to the VIN pin. Check all connections.

Q1: Can I use the 18650 in case without a protective circuit?
A1: While the case provides physical protection, it is recommended to use a battery with a built-in protection circuit or add an external BMS for safety.

Q2: How do I know when the battery is fully charged?
A2: The battery is fully charged when the charger output voltage reaches 4.2V and the current drops to a minimal level.

Q3: Can I connect multiple 18650 batteries in series or parallel?
A3: Yes, but ensure you use a BMS to balance the cells and provide overcharge/discharge protection.

Q4: Is it safe to solder directly to the battery terminals?
A4: Direct soldering can damage the battery due to heat. Use battery holders or spot welding for connections.

By following this documentation, you can safely and effectively use the 18650 in case for your projects.
