How to Use SV74LV4052APWR: Examples, Pinouts, and Specs

The SV74LV4052APWR is a dual 4-channel analog multiplexer/demultiplexer designed for high-speed switching applications. It features low ON resistance, making it ideal for routing analog or digital signals with minimal signal degradation. This component operates at low voltage levels, ensuring compatibility with modern low-power digital circuits. Its versatility makes it suitable for applications such as signal routing, data acquisition systems, audio switching, and communication systems.

The following table outlines the key technical specifications of the SV74LV4052APWR:

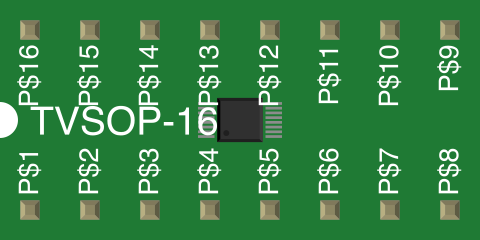

The SV74LV4052APWR is housed in a 16-pin TSSOP package. The pinout and descriptions are as follows:

1. Power Supply: Connect the VCC pin to a voltage source within the range of 2.0V to 5.5V. Connect the GND and VEE pins to ground.
2. Enable Control: The EN pin is active LOW. To enable the multiplexer/demultiplexer, set EN to LOW. When EN is HIGH, all channels are disabled.
3. Channel Selection: Use the address select inputs (A and B) to select one of the four channels for each multiplexer/demultiplexer:
   • A and B form a 2-bit binary code to select channels (e.g., 00 for X0/Y0, 01 for X1/Y1, etc.).
4. Signal Routing: Connect the desired input/output signals to the Xn, Yn, W, and Z pins as per your application.

• Signal Integrity: Ensure that the input signals are within the voltage range specified for the component to avoid distortion or damage.
• Decoupling Capacitors: Place a 0.1 µF ceramic capacitor close to the VCC pin to filter out noise and stabilize the power supply.
• Unused Pins: Tie unused input pins (e.g., A, B, or EN) to a defined logic level (HIGH or LOW) to prevent floating inputs.
• Voltage Compatibility: Ensure that the voltage levels of the signals being routed are compatible with the supply voltage (VCC) of the SV74LV4052APWR.

The SV74LV4052APWR can be controlled using an Arduino UNO. Below is an example code snippet to select different channels:

// Define pin connections for the SV74LV4052APWR
const int pinA = 2;  // Address select input A
const int pinB = 3;  // Address select input B
const int pinEN = 4; // Enable pin (active LOW)

void setup() {
  // Set pin modes
  pinMode(pinA, OUTPUT);
  pinMode(pinB, OUTPUT);
  pinMode(pinEN, OUTPUT);

  // Enable the multiplexer (set EN to LOW)
  digitalWrite(pinEN, LOW);
}

void loop() {
  // Example: Select channel X0/Y0 (A=0, B=0)
  digitalWrite(pinA, LOW);
  digitalWrite(pinB, LOW);
  delay(1000); // Wait for 1 second

  // Example: Select channel X1/Y1 (A=1, B=0)
  digitalWrite(pinA, HIGH);
  digitalWrite(pinB, LOW);
  delay(1000); // Wait for 1 second

  // Example: Select channel X2/Y2 (A=0, B=1)
  digitalWrite(pinA, LOW);
  digitalWrite(pinB, HIGH);
  delay(1000); // Wait for 1 second

  // Example: Select channel X3/Y3 (A=1, B=1)
  digitalWrite(pinA, HIGH);
  digitalWrite(pinB, HIGH);
  delay(1000); // Wait for 1 second
}

1. No Signal Output:

   • Ensure the EN pin is set to LOW to enable the multiplexer/demultiplexer.
   • Verify that the address select inputs (A and B) are configured correctly for the desired channel.

2. Signal Distortion:

   • Check that the input signal voltage levels are within the specified range.
   • Ensure proper decoupling of the power supply using capacitors.

3. High ON Resistance:

   • Verify that the supply voltage (VCC) is within the recommended range. Low VCC can increase ON resistance.

4. Floating Inputs:

   • Tie unused address select or enable pins to a defined logic level to prevent erratic behavior.

Q1: Can the SV74LV4052APWR handle bidirectional signals?
Yes, the SV74LV4052APWR supports bidirectional signal routing, making it suitable for both input and output applications.

Q2: What is the maximum frequency the component can switch?
The maximum switching frequency is 100 MHz, making it suitable for high-speed applications.

Q3: Can I use this component with a 3.3V microcontroller?
Yes, the SV74LV4052APWR operates at supply voltages as low as 2.0V, making it compatible with 3.3V systems.

Q4: How do I reduce noise in my circuit?
Use decoupling capacitors near the VCC pin and ensure proper grounding to minimize noise and improve signal integrity.
