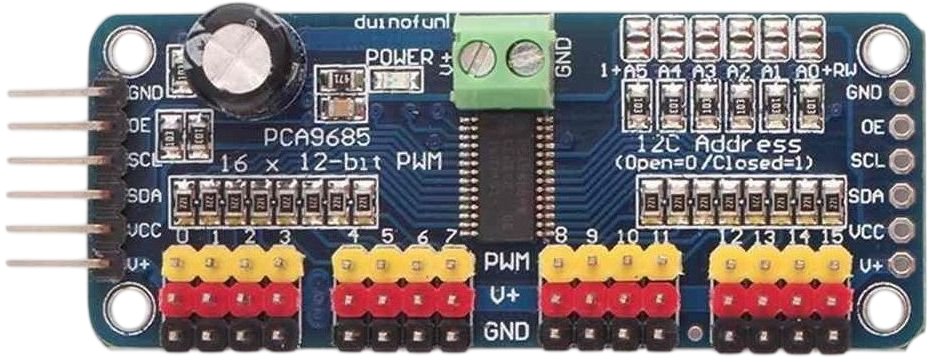

The PCA9685 Breakout Board, manufactured by NXP Semiconductors (Part ID: PCA9685), is a versatile 16-channel, 12-bit PWM (Pulse Width Modulation) controller. It communicates via the I2C protocol, making it an ideal choice for applications requiring precise control of multiple servos or LEDs. This component is widely used in robotics, automation, and lighting projects due to its ability to offload PWM generation from the microcontroller, freeing up valuable processing power.
Explore Projects Built with PCA9685 Breakout Board
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is designed to control multiple servos using two Adafruit PCA9685 PWM Servo Breakout boards, which are interfaced with a Raspberry Pi 5. The Raspberry Pi provides power and control signals to the PCA9685 boards, which in turn generate PWM signals to control the position of each servo. Additional sensors, including a DHT11 temperature and humidity sensor and an MKE-S01 ultrasonic distance sensor, are connected to the Raspberry Pi for environmental data acquisition.
This circuit consists of an Adafruit PCA9685 PWM Servo Breakout board connected to multiple MG995 servomotors. The PCA9685 board is used to provide PWM (Pulse Width Modulation) signals to control the position of each servomotor. Power (5V and GND) is distributed from the PCA9685 to all servomotors, and individual PWM outputs from the PCA9685 are connected to the signal inputs of the servomotors, allowing for independent control of each servomotor's angle or speed.
This circuit is designed to control multiple servos using an Adafruit PCA9685 PWM Servo Breakout board, which is interfaced with an Arduino UNO microcontroller. The PCA9685 board receives power from a 9V battery and communicates with the Arduino via I2C (SDA/SCL lines). The Arduino is programmed to generate PWM signals through the PCA9685 to independently control the position of each connected servo.
This circuit controls two servomotors (MG996R and MG995) using a Raspberry Pi 5 and an Adafruit PCA9685 PWM Servo Breakout board. The Raspberry Pi communicates with the PCA9685 via I2C (using GPIO 2 and GPIO 3 for SDA and SCL, respectively) to send PWM signals to the servos. Power distribution is managed through an Adafruit Perma Proto Small Mint board, which connects the 5V and GND from the Raspberry Pi to the PCA9685 and the servos.
Controlling servo motors in robotic arms, drones, and RC vehicles
LED dimming and lighting effects in decorative or functional lighting systems
Automation systems requiring precise motor or light control
Projects requiring multiple PWM outputs with minimal microcontroller overhead
Technical Specifications
The PCA9685 Breakout Board is designed to simplify PWM control in complex systems. Below are its key technical details:
Key Features
Channels: 16 independent PWM outputs
Resolution: 12-bit (4096 steps per cycle)
Communication Protocol: I2C (up to 1 MHz)
Operating Voltage: 2.3V to 5.5V (logic level)
Output Voltage: Up to 6V (external power supply required for servos/LEDs)
Output Current: 25 mA per channel (maximum)
Frequency Range: Adjustable PWM frequency from 24 Hz to 1526 Hz
Addressing: Configurable I2C address (up to 62 devices on the same bus)
Integrated Oscillator: No external clock required
Pin Configuration
The PCA9685 Breakout Board has the following pin layout:
Pin Name
Description
VCC
Power supply for the logic circuit (2.3V to 5.5V).
GND
Ground connection.
SDA
I2C data line.
SCL
I2C clock line.
OE
Output enable pin (active low, optional).
PWM 0-15
16 PWM output pins for controlling servos or LEDs.
V+
External power supply for driving servos or LEDs (up to 6V).
A0-A5
Address selection pins for configuring the I2C address.
I2C Addressing
The PCA9685 supports up to 62 unique I2C addresses. The base address is 0x40, and the address can be modified using the A0-A5 pins. Each pin can be tied to GND (logic 0) or VCC (logic 1) to set the desired address.
Usage Instructions
Connecting the PCA9685 to a Microcontroller
Power the Board: Connect the VCC pin to the microcontroller's logic voltage (e.g., 3.3V or 5V) and the GND pin to the ground.
I2C Communication: Connect the SDA and SCL pins to the corresponding I2C pins on the microcontroller.
External Power Supply: If driving servos or LEDs, connect an external power supply (up to 6V) to the V+ pin. Ensure the GND of the external power supply is connected to the GND of the microcontroller.
Address Configuration: Set the I2C address using the A0-A5 pins if multiple PCA9685 boards are used on the same I2C bus.
Example: Using PCA9685 with Arduino UNO
Below is an example of controlling a servo motor using the PCA9685 and Arduino UNO:
#include <Wire.h>
#include <Adafruit_PWMServoDriver.h>
// Create an instance of the PCA9685 driver
Adafruit_PWMServoDriver pwm = Adafruit_PWMServoDriver();
void setup() {
// Initialize serial communication for debugging
Serial.begin(9600);
// Initialize the PCA9685 board
pwm.begin();
// Set the PWM frequency to 50 Hz (common for servos)
pwm.setPWMFreq(50);
Serial.println("PCA9685 initialized and ready.");
}
void loop() {
// Define the servo channel and pulse width range
uint8_t servoChannel = 0; // Channel 0
uint16_t pulseMin = 150; // Minimum pulse width (0 degrees)
uint16_t pulseMax = 600; // Maximum pulse width (180 degrees)
// Sweep the servo from 0 to 180 degrees
for (uint16_t pulse = pulseMin; pulse <= pulseMax; pulse++) {
pwm.setPWM(servoChannel, 0, pulse);
delay(10); // Small delay for smooth movement
}
// Sweep the servo back from 180 to 0 degrees
for (uint16_t pulse = pulseMax; pulse >= pulseMin; pulse--) {
pwm.setPWM(servoChannel, 0, pulse);
delay(10); // Small delay for smooth movement
}
}
Best Practices
Use decoupling capacitors near the VCC and V+ pins to reduce noise.
Avoid exceeding the maximum current rating of 25 mA per channel.
Use a separate power supply for servos or high-power LEDs to prevent overloading the microcontroller's power supply.
Ensure proper grounding between the PCA9685, microcontroller, and external power supply.
Troubleshooting and FAQs
Common Issues
No Response from the PCA9685
Solution: Verify the I2C connections (SDA, SCL) and ensure the correct I2C address is being used in the code.
Tip: Use an I2C scanner sketch to detect the PCA9685's address.
Servos or LEDs Not Functioning
Solution: Check the external power supply connected to the V+ pin. Ensure it matches the voltage requirements of the connected devices.
Tip: Confirm that the PWM frequency is set correctly for the application (e.g., 50 Hz for servos).
Erratic Behavior or Noise
Solution: Add decoupling capacitors near the power pins and ensure proper grounding.
Tip: Use shielded cables for long I2C connections to reduce interference.
Overheating
Solution: Ensure the current per channel does not exceed 25 mA. For higher currents, use external transistors or MOSFETs.
FAQs
Can I use multiple PCA9685 boards on the same I2C bus?
Yes, up to 62 boards can be connected by configuring unique I2C addresses using the A0-A5 pins.
What is the maximum PWM frequency supported?
The PCA9685 supports frequencies up to 1526 Hz, but the frequency should be chosen based on the application (e.g., 50 Hz for servos).
Do I need an external clock for the PCA9685?
No, the PCA9685 has an integrated oscillator and does not require an external clock.
Can I control DC motors with the PCA9685?
Yes, but you will need an H-bridge or motor driver circuit to handle the higher current requirements of DC motors.
This documentation provides a comprehensive guide to using the PCA9685 Breakout Board effectively in your projects.
